Summary of Contents for Linx HT Keyfob
- Page 1 HT Keyfob Transmitter Data Guide...
- Page 2 ANSI and NFPA standards. It is solely the responsibility Assembly Diagram of any Linx customer who uses one or more of these products to Compliance Requirements incorporate appropriate redundancies and safety standards for the Life and Property Safety Situation application.

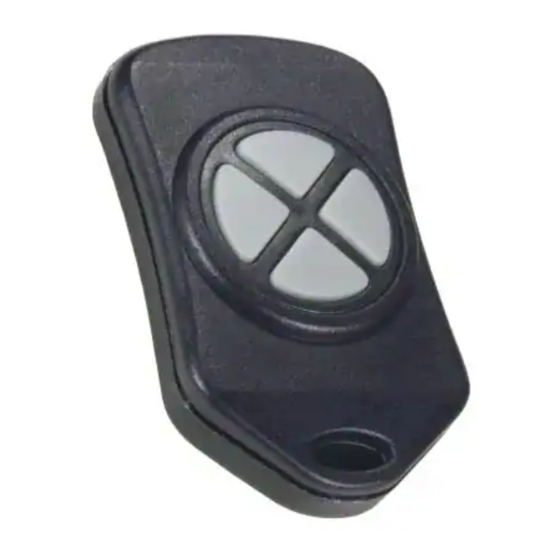

- Page 3 HT Keyfob Transmitter Data Guide Description The Linx HT Keyfob transmitter is ideal 1.00" for general-purpose remote control and command appli cations. It has been 2.23" pre-certified for FCC Part 15, Industry Canada, and European CE (433MHz only) compliance, reducing development costs and time to market.
- Page 4 Supply Current 12.6 Power-Down Current µA The transmitter is compatible with several Linx receiver products, including Transmitter Section the LR, KH3, LT, and OEM product families. Ranges of up to 750 feet are Transmit Frequency Range possible when the transmitter is combined with the receiver and a good OTX-418-HH-KF#-HT antenna.
- Page 5 AN-00300 describes in detail how to set the address to match any of the by gently prying apart the two halves of the Keyfob at receivers offered by Linx. This note can be found in the Support section of the seam (fingernails or a coin will do). Once the unit is the Linx website, www.linxtechnologies.com.
- Page 6 Labeling / Instruction Requirements INSTRUCTION TO THE USER The transmitter has been pre-certified for FCC Part 15 and Industry This device complies with Part 15 of the FCC Rules and Industry Canada license- Canada license-exempt RSS standards for an intentional radiator. The exempt RSS standard(s).
- Page 7 The other options are to use one of the Linx receiver modules. The signal sent by the Keyfob transmitter can be received by the LR Series receiver module or the LT Series transceiver module.
- Page 8 For technical support, product documentation, application notes, regulatory guidelines and software updates, visit www.linxtechnologies.com RF Design Services For customers who need help implementing Linx modules, Linx offers design services including board layout assistance, programming, certification advice and packaging design. For more complex RF solutions, Apex Wireless, a division of Linx Technologies, creates optimized designs with RF components and firmware selected for the customer’s application.
- Page 9 Under no circumstances shall any user be conveyed any license or right to the use or ownership of such items. ©2015 Linx Technologies. All rights reserved. The stylized Linx logo, Wireless Made Simple, WISE, CipherLinx and the stylized CL logo are trademarks of Linx Technologies.
