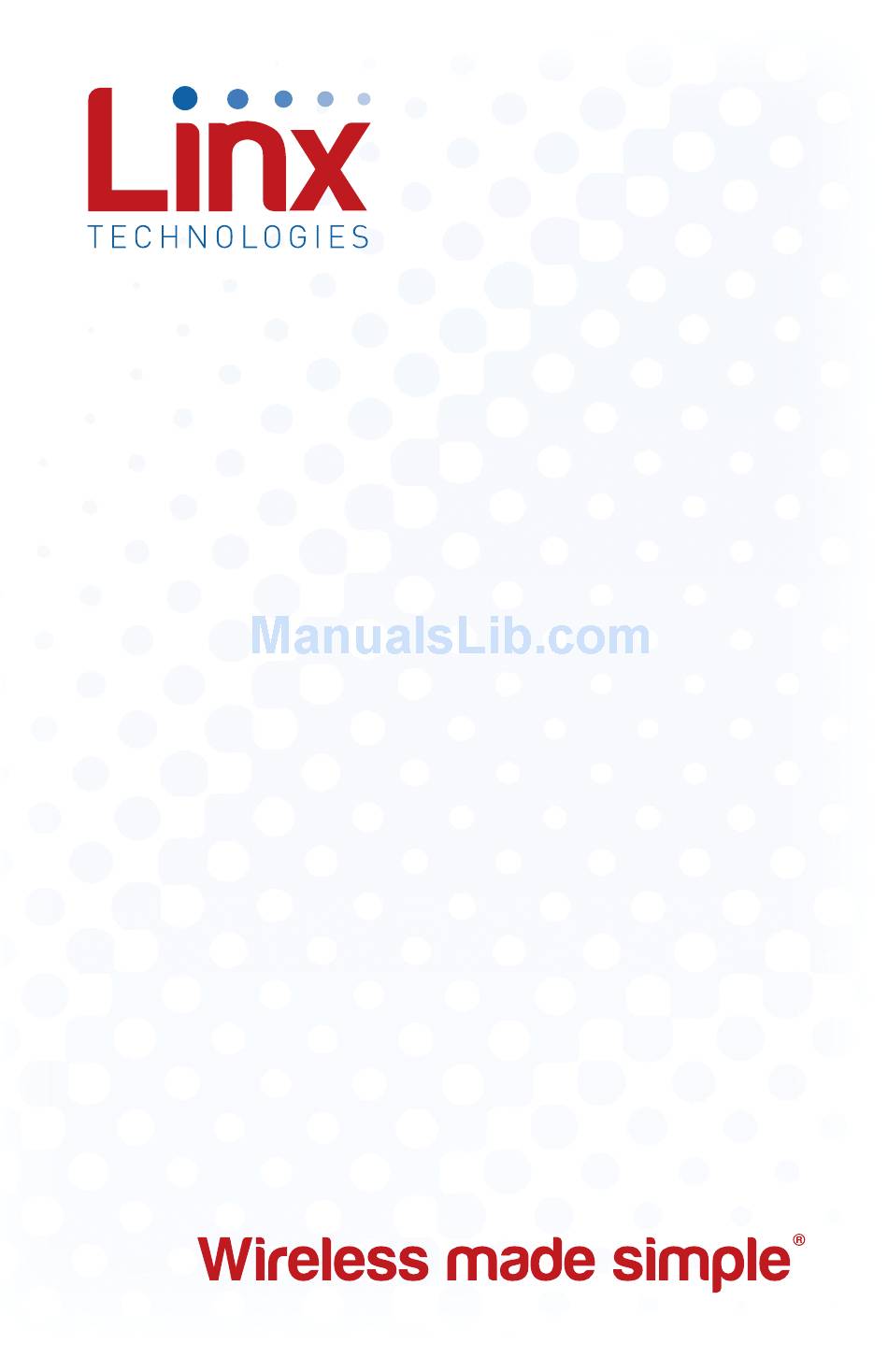

  • Page 1 MS Compact Handheld Transmitter Master Development System User's Guide...
  • Page 2 ANSI and NFPA standards. It is solely the responsibility Installing the Software and Drivers of any Linx customer who uses one or more of these products to Master Development Software incorporate appropriate redundancies and safety standards for the Life and Property Safety Situation application.
  • Page 3 Figure 1: MS Compact Handheld Transmitter Master Development System Introduction The Linx MS Compact Handheld transmitter offers a simple, efficient and cost-effective method of adding remote control capabilities to any product. This Master Development System gives a designer all the tools necessary to incorporate the transmitter, LR Series receiver and MS Series decoder into a product.
  • Page 4: Ordering Information

    9V battery, and turn on the power switch. The encoder and decoder are configured from the factory and work straight out of the box. To create a MDEV-***-HH-CP8-MS MS Compact Transmitter Master Development System new address (if desired), follow these easy steps: *** = 315, 418 (Standard) or 433.92MHz 1.
  • Page 5: Setting The Transmitter Address

    Setting the Transmitter Address Contention Considerations The MS Compact Handheld It is important to understand that only one transmitter at a time can be MODE_IND Window Transmitter allows the selection activated within a reception area. While the transmitted signal consists...
  • Page 6 The Decoder Board The Power Supply The power supply on the decoder board consists of a 9V battery The decoder board included with the evaluation kit uses an LR Series and power jack connected to a 3.0V voltage regulator. It can provide receiver to receive the signal from the Handheld transmitter and then approximately 500mA of current to the prototyping area, so if the added feeds it into an MS Series decoder.
  • Page 7 Figure 11: The Decoder Area The decoder is in the center beneath the Linx logo. To the left are LEDs that are connected to the decoder data lines. These light up when the decoder receives a signal from the transmitter instructing it to take the data line high.
  • Page 8 The View Documentation list allows for the installation of Adobe Acrobat Reader so that the documents may be viewed. There is also the option of installing Flash, which may be required if the Linx video does not play correctly. –...
  • Page 9 Master Development Software This software is designed to give a complete understanding of how the MS Series encoders and decoders work together, as well as showing how they can be used in a system. The Master Development software can be used in one of two modes. The default mode is a software simulation of the system and does not require any hardware.
  • Page 10 + C1 10uF DIODE400 220uF 9V BATTERY RF Design Services USB SECTION USB-B For customers who need help implementing Linx modules, Linx offers Figure 17: Power Supply Section RA2/AN2 RA1/AN1 DAT+ USBDP RA3/AN3 RA0/AN0 design services including board layout assistance, programming,...
  • Page 11 Disclaimer Linx Technologies is continually striving to improve the quality and function of its products. For this reason, we reserve the right to make changes to our products without notice. The information contained in this Data Guide is believed to be accurate as of the time of publication. Specifications are based on representative lot samples.
