- Page 1 MDM50 High Pressure Version User’s Manual 97478 Issue 1.4 October 2019 nbn Austria GmbH...
- Page 2 Please fill out the form(s) below for each instrument that has been purchased. Use this information when contacting Michell Instruments for service purposes. Instrument Code Serial Number Invoice Date Location of Instrument Tag Number Instrument Code Serial Number Invoice Date...
- Page 3 © 2019 Michell Instruments This document is the property of Michell Instruments Ltd and may not be copied or otherwise reproduced, communicated in any way to third parties, nor stored in any Data Processing System without the express written authorization of Michell Instruments Ltd.
-
Page 4: Table Of Contents
4-20 mA Output Socket Wiring ................7 GOOD MEASUREMENT PRACTICE ...............8 MAINTENANCE ....................12 Calibration ....................... 12 Transmitter / Battery Replacement ..............12 Filter Cartridge Replacement ................14 Checking the MDM50-HP Electronics Calibration ..........14 List of Spares ....................14 Troubleshooting ....................15 Figures Figure 1 Swagelok Fitting Instructions ..............3... -
Page 5: Safety
Michell Instruments’ worldwide offices contact information. Calibration The recommended calibration interval for the MDM50-HP is one year, unless otherwise specified by Michell Instruments Ltd. The instrument should be returned to the manufacturer, Michell Instruments, or one of their accredited service agents for re-calibration (go to www.michell.com for contact information). -
Page 6: Abbreviations
MDM50 HP Version User’s Manual Abbreviations The following abbreviations are used in this manual: alternating current pressure unit (atmosphere) barg pressure unit (=100 kP or 0.987 atm) gauge °C degrees Celsius °F degrees Fahrenheit dew point feet kilogram pound milliampere meter millimeter megapascal... -
Page 7: Introduction

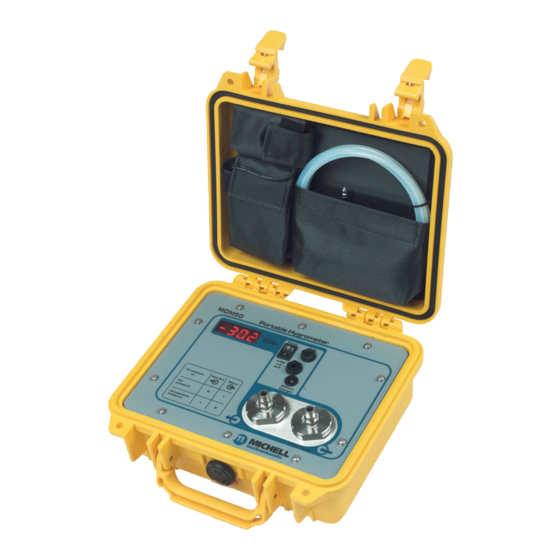

This process, and subsequent quality testing, ensures that all sensors behave optimally before they are used in the field. Each MDM50-HP is supplied with a calibration certificate traceable to national standards (NIST) from Michell Instruments' accredited laboratory. -
Page 8: Installation
3 pole ¼” jack plug (inside lid) • Certificate of calibration Before using the MDM50-HP for the first time it is recommended that the battery pack is charged for a minimum of 12 hours. The supplied Swagelok port adaptor needs to be assembled before the metering valve ®... - Page 9 1¼ turns to the 9 o’clock position. 5. Mark the nut at the 6 o’clock position. While holding the fitting body steady, tighten the nut 1¼ turns to the 9 o’clock position. Figure 1 Swagelok Fitting Instructions ® Michell Instruments...
-
Page 10: Operation
15 to 30 minutes for spot checks at dew points of -40°C (-40°F) and above. Switch the unit off and disconnect the sample lines. Before disconnecting the MDM50-HP from the gas line it is essential to vent the system to atmospheric pressure, otherwise severe injury could result. -
Page 11: Measuring Dew Points Below -40°C (-40°F)
The table below offers an approximate guide to the times taken for the instrument to stabilize at a given dew point (from a starting point of 10°Cdp (50°Fdp) ambient): Target Dew Point T100 Response Time (mins) °C °F Michell Instruments... -
Page 12: User Controls
Socket connected to a chart recorder, data logger or PC to enable dew- point trends to be analyzed over time. The MDM50-HP can be used for measurements at line pressure (up to 300 barg (4350 psig)) or atmospheric pressure. Swagelok tube fittings are supplied for use with 6mm or ¼"... -
Page 13: 4-20 Ma Output Socket Wiring
MDM50 HP Version User’s Manual OPERATION 4-20 mA Output Socket Wiring The MDM50-HP provides a linear 4-20 mA output scaled from -60 to +60°C (-76 to +140°F). The socket accepts a 3 pole ¼” jack plug (supplied) and should be wired as shown below: ... -
Page 14: Good Measurement Practice
MDM50 HP Version User’s Manual GOOD MEASUREMENT PRACTICE GOOD MEASUREMENT PRACTICE Ensuring reliable and accurate moisture measurements requires the correct sampling techniques, and a basic understanding of how water vapor behaves. This section aims to explain the common mistakes and how to avoid them. Sampling Materials –... - Page 15 Theoretically flow rate has no direct effect on the measured moisture content, but in practice it can have unanticipated effects on response speed and accuracy. An inadequate flow rate may: Michell Instruments...
- Page 16 MDM50 HP Version User’s Manual GOOD MEASUREMENT PRACTICE • Accentuate adsorption and desorption effects on the gas passing through the sampling system. • Allow pockets of wet gas to remain undisturbed in a complex sampling system, which will then gradually be released into the sample flow. •...
-
Page 17: Maintenance
MDM50 HP Version User’s Manual MAINTENANCE MAINTENANCE Routine maintenance of the MDM50-HP is confined to regular re-calibration of the internal, removable SF72 transmitter and replacement of the filter cartridge. Calibration The calibration of the internal transmitter is traceable to national standards. For this reason it should only be calibrated in an accredited, e.g. - Page 18 MDM50 HP Version User’s Manual MAINTENANCE If the front panel prevents the connector from fitting onto the transmitter, follow the instructions below: • Completely unscrew the cable gland on the GDSN connector to release the cable tension. • Remove the locking screw from the back of the connector (retaining the metal O-ring).
-
Page 19: Filter Cartridge Replacement
At 4 mA the display should show -60.0°Cdp ±0.5°C (-76.0°Fdp ±0.9°F) At 20 mA the display should show +60.0°Cdp ±0.5°C (+140.0°Fdp ±0.9°F) If the displayed values are outside of this range, please contact Michell Instruments' Service Department. List of Spares... -
Page 20: Troubleshooting
MDM50 HP Version User’s Manual MAINTENANCE Troubleshooting Symptom Cause Actions Transmitter disconnected or sensor element / Check transmitter cable is securely sensor thermistor fault. connected inside instrument. NOTE: This error is Display shows “ ErrI ” Check instrument electronics with normally displayed 4-20mA source. -
Page 21: Appendix A Technical Specifications
MDM50 HP Version User’s Manual APPENDIX A Appendix A Technical Specifications Michell Instruments... - Page 22 MDM50 HP Version User’s Manual APPENDIX A Appendix A Technical Specifications Performance Measurement Technology Polymer Capacitive Measurement Range -50 to +20°Cdp (-58 to +68°Fdp) Accuracy ±2°Cdp (±3.6°Fdp) Run time 12 - 16 hours Charge time 16 hours for maximum charge Flow Rate 1 to 5 Nl/min (2.1 to 10.5 scfh) Electrical Input/Output...
-
Page 23: Appendix B Quality, Recycling & Warranty Information
MDM50 HP Version User’s Manual APPENDIX B Appendix B Quality, Recycling & Warranty Information Michell Instruments... - Page 24 MDM50 HP Version User’s Manual APPENDIX B Appendix B Quality, Recycling & Warranty Information Michell Instruments is dedicated to complying to all relevant legislation and directives. Full information can be found on our website at: www.michell.com/compliance This page contains information on the following directives: •...
-
Page 25: Appendix C Decontamination Declaration
MDM50 HP Version User’s Manual APPENDIX C Appendix C Decontamination Declaration Michell Instruments... - Page 26 Has the equipment been cleaned and decontaminated? NOT NECESSARY Michell Instruments will not accept instruments that have been exposed to toxins, radio-activity or bio-hazardous materials. For most applications involving solvents, acidic, basic, flammable or toxic gases a simple purge with dry gas (dew point <-30°C) over 24 hours should be sufficient to decontaminate the unit prior to return.
- Page 27 MDM50 HP Version User’s Manual NOTES Michell Instruments...
- Page 28 http://www.michell.com Aufgrund laufender Weiterentwicklungen sind Änderungen der Spezifikationen vorbehalten. Alle Angaben vorbehaltlich Satz- und Druckfehler. nbn Austria GmbH Riesstraße 146, 8010 Graz Tel. +43 316 40 28 05 | Fax +43 316 40 25 06 nbn @ nbn. at | www. nbn. at...
