- Page 1 Gamma User Manual Version 2.0 as of 10.03.2020 www.signotec.com...
-
Page 2: Table Of Contents
12.1............................... 15 ECHNICAL SUPPORT 12.2..................................15 EPAIRS 12.3........................15 VERVIEW OF ACCESSORIES AND SPARE PARTS DISPOSAL OF DEVICE ..............................16 DECLARATIONS OF CONFORMITY ..........................16 © 2000–2020 signotec GmbH signotec Gamma user manual Page 2 of 16... -
Page 3: Thank You

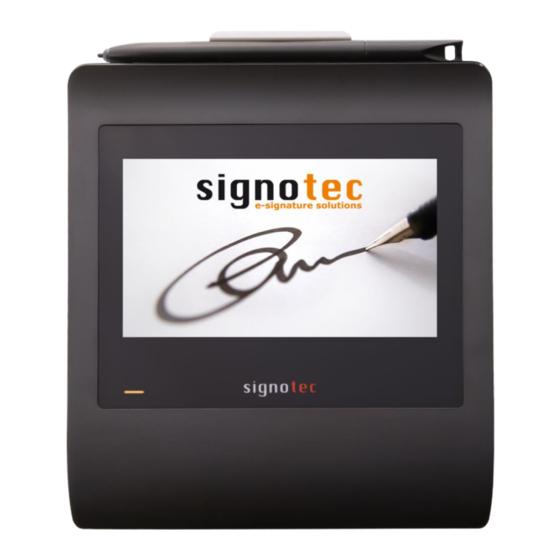

1. Thank you! Thank you for having chosen one of signotec’s products. You now have a robust, durable and high- tech solution that is unrivalled in this market segment. The signotec Gamma LCD signature pad serves as an input device for signatures and is used to capture writing characteristics (biometrics) accurately and in a high resolution and to display textual and colour graphical information on the LCD. -
Page 4: Warnings And Precautions
Failure to comply with these precautions will result in the loss of your warranty. Furthermore, signotec will not accept any responsibility for the repair or replacement of the device. -
Page 5: Checking The Device Upon Arrival
Immediately upon or after receiving the product, check that all associated components have been delivered. If a component is missing, defective or visibly damaged, please contact signotec or the authorised dealer from whom you purchased the product within one working day. If you do not com-... -
Page 6: Product View
② ③ Ergonomic pen with USB cable replaceable pen tip Liquid Crystal Display (LCD) with Cord (attached to the device and pen) a hardened glass surface Status LED © 2000–2020 signotec GmbH signotec Gamma user manual Page 6 of 16... -
Page 7: Back Side
Cord (attached to the device and pen) Device designation USB cable Item number Mounting fixture for a vertical Hardware revision number pen holder Tension relief for USB cable Barcode with unique serial number © 2000–2020 signotec GmbH signotec Gamma user manual Page 7 of 16... -
Page 8: Connection Types
7. Connection types The signotec Gamma signature pad is available in a variety of connection types. You can choose between an HID/WinUSB and a vCOM (FTDI) version for use in virtual serial mode. The HID/WinUSB device (item no. ends with U100) is designed for local use on a computer. A device featuring an integrated USB-serial converter (FTDI) (item no. -
Page 9: Virtual Serial Connection At The Terminal Server
Citrix environments. Note: The signotec Virtual Channel driver is required on the client. The driver is available ex-works for various systems (such as IGEL and Rangee clients). If this is not the case, the driver must be purchased. -
Page 10: Installation
Note: Please use only the supplied cable or appropriate spare parts from signotec to ensure correct functionality. The USB standard provides for a maximum cable length of three metres. -
Page 11: Status Led
The installation of drivers alone does not indicate that all device functions will be enabled. To use the signature pad, you also need software that provides communication with the device. You can use the signotec standard software products if you do not have software that supports the signotec signature pad. Please refer to www.signotec.com... -
Page 12: Adjusting The Brightness
You can recalibrate the sensor if the signature is not situated exactly under the tip of the pen. Tip: The devices are pre-calibrated by signotec ex-works. It is only necessary to recalibrate the sensor in extraordinary circumstances or in the event of an error. -
Page 13: Maintenance, Care And Cleaning
Maintenance, care and cleaning signotec signature pads are maintenance-free. No technical components need to be replaced regularly or depending on use. You should handle the device with care, maintain it regularly and replace accessories promptly if they show signs of use in order to increase the device’s service life as much as possible. -
Page 14: Warranty
Within the warranty period, signotec GmbH will repair free of charge all defects of the product that are caused by processing errors or material defects. It is at the discretion of signotec to repair or replace individual parts or the entire product. The replacement can mean new or repaired parts or a new or repaired product. -
Page 15: Support And Repairs
12. Support and repairs The products and solutions from signotec were designed to make our customers satisfied users. If, contrary to expectations, problems occur, you can find the necessary help and support on our FAQ and support pages. 12.1. Technical support... -
Page 16: Disposal Of Device
GmbH, based in Ratingen, Germany. Reproduction of this documentation, in part or in whole, is subject to prior written approval from signotec GmbH. All hardware and software names used are trade names and/or trademarks of their respective manufacturers/owners. Subject to change at any time without notice.
