- Page 1 ACROBAT M Motorized Treadmill Operating Instructions Manual Special tips: Before installation and operation, please read this operation manual carefully. Please save this manual for future reference.
-
Page 2: Table Of Contents
Table of Contents 1 Brief Description…………………………………………………………………………..…2 2 Main Technical Features……………………………………………………………..……2 3 Tips for safety……………………………………………………………………………….…3-4 4 Installation………………………………………………………………………………………4 5 Use and Operation……………………………………………………….………………… 4-6 6 Maintenance…………………………………………………………………………………. 6-8 7 Guides for malfunction………………………………………………………………….. 8-9 8 Exploded Diagram and Spare Part List.………………………..……………….… 9 9 Error and self-inspection…………………………………………………………..…… 10 10 Installation Sketch……………………………………………………………….. -
Page 3: Brief Description

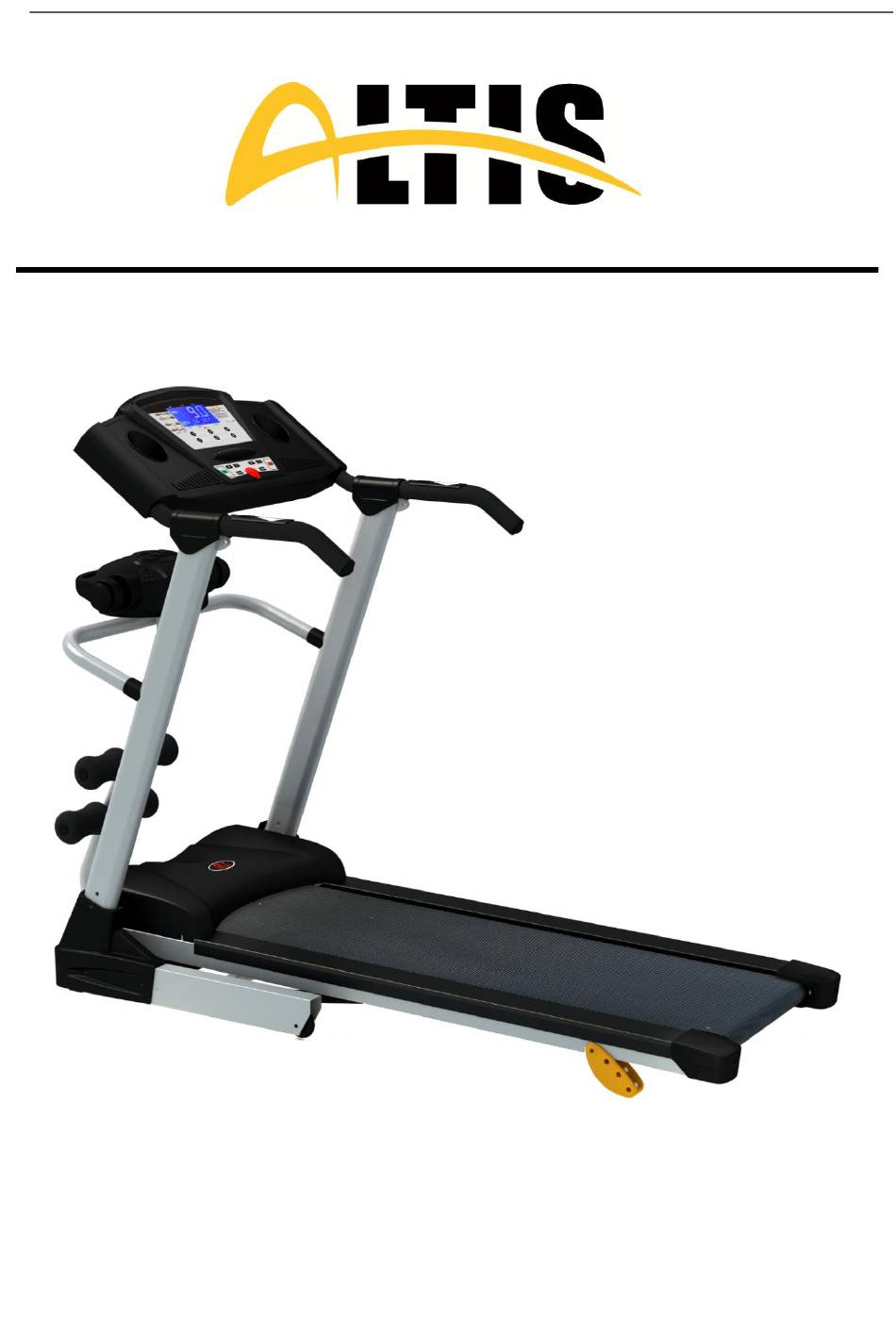

1. Brief Description ACROBAT M motorized treadmill (diagram 1) can help complete your goal of keeping fit together with unique and elegant appearance. Easily read panel parameter。Easily operated folding system realizes space-saving. Auto speed range 1-14km/h. All makes it a hot home use fitness equipment. -
Page 4: Tips For Safety
3. Tips for Safety 3.1 Insert the power plug into the socket directly. Current load should be less than 10A. 3.2 The constant running time is less than 2 hours. 3.3 Place your treadmill on the clean floor，not on the thick carpet, otherwise it will not convenient for ventilation. -
Page 5: Installation
4. Installation: See “Installation sketch” 5. Use and Operation 5.1 Panel Keys and Function （2）speed shortcut key （1）speed shortcut key （3）start （7）stop （4） set-up （5） set -down （8） speed-up （6）prog （10）Mode speed-down （9） （ 11 ） safety （1）“speed shortcut key” Press this key,you could get your expected speed directly （2）“speed shortcut key”... - Page 6 If you runs at the speed less than 3km/h, then the treadmill will stop immediately. （8）“speed up” Under running condition, press this key, speed can be increased to the one you expected （9）“speed down” Under running condition, press this key, speed can be speeded down to the one you expected.
-
Page 7: Maintenance
5.4.2 Opening Put the folded treadmill in a capacious position when you want to run. Then pull the adjusting parts by hand to keep it is unlocked. Press the back part by your hands down to about 10%, release it, then it will open automatically. 6. -
Page 8: Guides For Malfunction
circle clockwise, then adjust the bolt on the left by turning it for half an circle.(see diagram 3) c) If the running belt is deflected to the left, adjust the bolt on the left by turning it for half an circle clockwise, then adjust the bolt on the right by turning it for half an circle.(see diagram 4 d) After the adjustment, the running belt still keeps deflecting , please repeat the steps above. - Page 9 7.1 Analyzing and eliminating malfunction Item Malfunction Reasons Solution Treadmill can’t be started The safe key isn’t in the Put the safe key in the right right position position The electrical switch is Turn the electrical switch to “on” placed to “off” creepage switch is not Replace creepage switch right...
-
Page 10: Exploded Diagram And Spare Part List
8. Exploded Diagram Spare Parts Part No. Description Quantity Part No. Description Quantity Computer casing (plastic) Rear roller Rubber hand grips Treadmill frame Handrail frame Running deck Holder-left Running belt Holder-right Side strip massage Drive belt Massage fixator Front roller Massage holder Motor cover foam... -
Page 11: Error And Self-Inspection
Error and self-inspection 9.1 Error： Treadmill gives the following error code if anything wrong， please contact service people soon if it happens E-0C 9.2 Self-inspection No need to self-inspect unless special situation. If necessary, please do it under the instruction of professional technical people or sales because of the high voltage. a. -
Page 12: Installation Sketch
Assemblying 1 - 11 -... - Page 13 Assemblying 2 - 12 -...
- Page 14 - 13 -...
