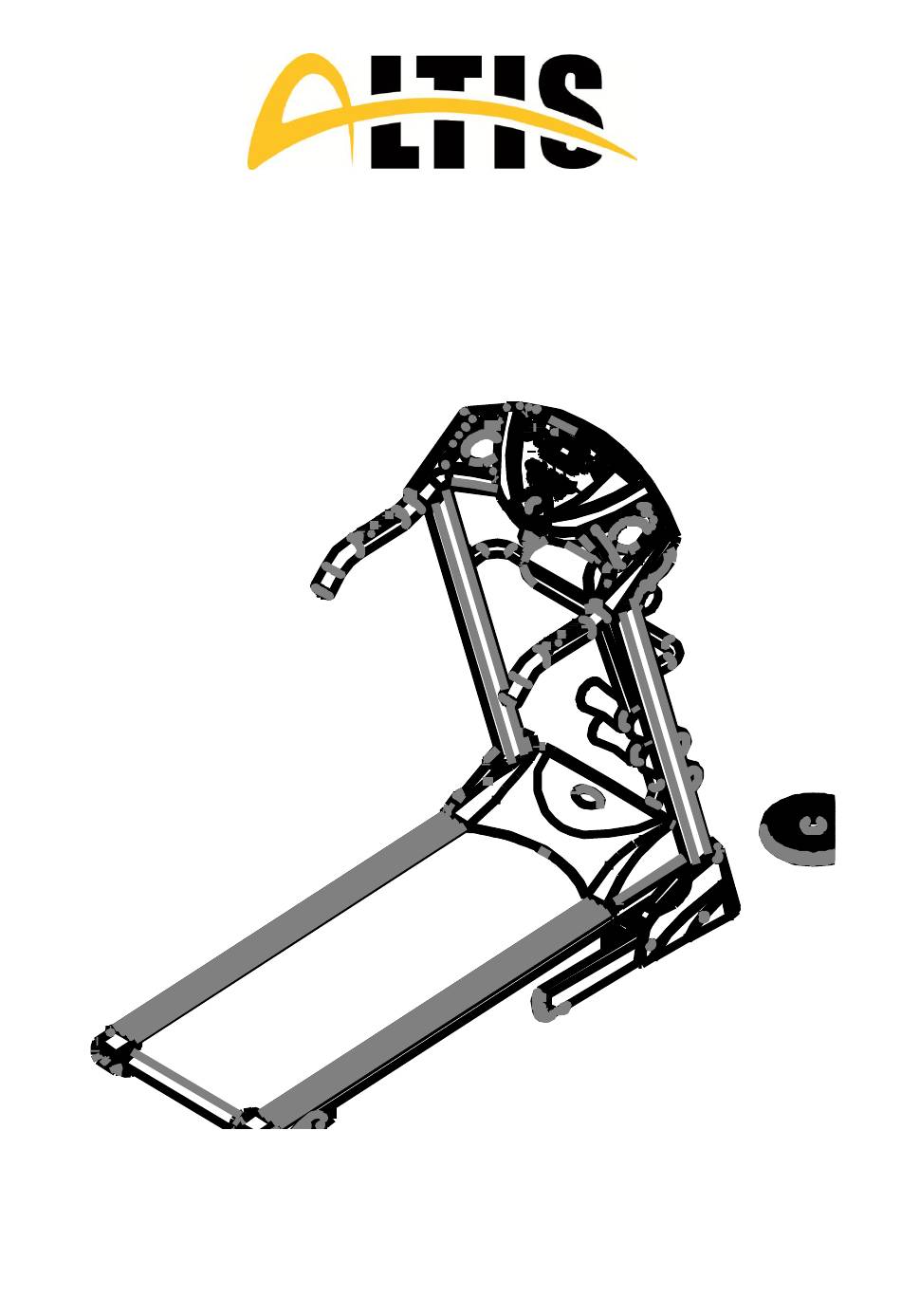

- Page 1 INOVA M MOTORIZED TREADMILL USER MANUAL...
-
Page 2: Table Of Contents
CONTENTS PLEASE READ ALL INSTRUCTION IN THE OWNER'S MANUAL CAREFULLY BEFORE ASSEMBLY AND USE THE TREADMILL. AND KEEP IT FOR FUTURE REFERENCE. CONTENT----------------------------------------------------------------------------------------------------------------------1 I M P O R T A N T S A F E T Y P R E C A U T I O N S - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2 A S S E M B L Y I N S T R U C T I O N S - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3 - 5 F O L D I N G &... -
Page 3: Important Safety Precautions
IMPORTANT SAFETY PRECAUTIONS WARNING Before starting any exercise program, consult with your physician or health professional， especially the person who is above 35 years old people or has some health problems before. We take no responsibility for any troubles or hurts due to above reasons. Don't power on until you finish assembly the treadmill and covering the protected top of motor. -
Page 4: Assembly Instructions
ASSEMBLY INSTRUCTIONS WHEN YOU OPEN THE CARTON, YOU WILL FIND THE BELOW SPARE PARTS. 3L/R SPARE PARTS LIST DESCRIPTION REMARK DESCRIPTION REMARK MAIN FRAME MP3 WIRE 3L/R UPRIGHT FRONT COVER FRONT COVER COMPUTER PLUG SAFETY KEY BOLT M4*15 BOLT M8*15 SIT-UP FOAMS ∮... - Page 5 SCREW DRIVER TWISTER ALLEN WRENCH FIXING TOOLS 5# ALLEN WRENCH 1 pc、 6# ALLEN WRENCH 1 pc、SCREW DRIVER 1 pc ASSEMBLY STEPS STEP 1: Take out the UPRIGHT （3L/R) & COMPUTER (17); As the picture shown, connect COMPUTER UP/MIDDLE/BOTTOM WIRE (36,37,38) well with COMPUTER (3), and fix them up step by step;...
- Page 6 STEP 2: Fix the MASSAGER FRAME (79) & MASSAGER (80) to the MAIN FRAME (2); STEP 3: Put on the SAFETY KEY (41) & MP3 WIRE （73). ATTENTION Must confirm complete assembly as the required above and lock all bolts. Do the following operations after checking everything is ok.
- Page 7 FOLDING INSTRUCTIONS Lift up the machine and force to pull up until you heard "click" that made by safety casing stuck the pneumatic cylinder. UNFOLDING INSTRUCTIONS Use foot to kick the safety sleeve lightly pull down machine at the same time as the arrow direction.
-
Page 8: Incline Instructions
INCLINE INSTRUCTIONS Adjust the incline by moving the pin ， There are three levels. -
Page 9: Grounding Methods
GROUNDING METHODS This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. -
Page 10: O P E R A T I O N G U I D
OPERATION GUIDE LCD WINDOW FUNCTION 1. "SPEED" WINDOW: 1.1 Display running speed ; 1.2 Display program number ; 1.3 Display 3 seconds countdown when the treadmill is starting ; 1.4 Display the "FAT" characters when in the mode of calorie； 2. - Page 11 BUTTON FUNCTION 1. "PROGRAM" BUTTON: Program select key. Choose order: manual mode -- P1 – P9 -- FAT cycle. 2. "MODE" BUTTON: 2.1 It is countdown select key when in standby condition. Choose order: manual mode - time countdown - distance countdown - heat countdown cycle ; It is calorie parameters select key when in the mode of calorie.
- Page 12 MAIN FUNCTION Turn on the power, all window lighten 2 seconds, then enter standby condition. 1. QUICK START (MANUAL MODE) Put on safety lock and press the start button. After 3 seconds, the treadmill will start at the lowest speed. Click "SPEED + -", "3 6 9" or buttons on right handlebar to adjust speed.
- Page 13 PARAMETER DISPLAY AND SETTING RANGE Parameters category Default Range Remark 0—1 0=man 1=woman SEX（-1-） 0（man） AGE（-2-） 10—99 HEIGHT（-3-） 170 CM 100—240 CM WEIGHT（-4-） 70KG 20—160KG BODY FAT INDEX COMPARING Obesity Body fat index（BMI） <19 Thin 19--26 normal 26--30 Over weight >30 Obesity SLEEP FUNCTION...
-
Page 14: G E T T I N G S T A R T E D G U I D
GETTING STARTED GUIDE PROGRAM EXERCISE CHAT TIME INTERVAL SET TIME / 20 = EVERY GRADE TIME MODE SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED PREPARE If you are around 35 years old, or have health problem, even this is your first time to do fitness exercise, please consult doctor or professional before use it. - Page 15 EXERCISE Please stand on the side to learn how to operate, such as speed and incline, until you know it then can start do exercise. Walk 1 km by constant step need about 15-25 minutes, please record it in fact. And walk 1km by 4.8 km/h need about 12 minutes. If you can do it easily by few times, then can adjust the high speed and incline, and go on to do 30 minutes, you can take a good exercise.
-
Page 16: S A F E T Y E X E R C I S
SAFETY EXERCISE Please consult professional staff before do exercise. He can help recommendation exercise rate/intension and time according to your age and health condition. When running, if you feel chest tightness or chest pain, irregular Heartbeats, short of breath, dizziness or other unwell, please stop immediately! And consult professional before you want continually to do exercise. -
Page 17: W A R M - U P E X E R C I S
WARM-UP EXERCISE It is better to do some warm-up exercise. Warm the muscle easy stretch, so use 5-10 minutes to warm-up. Then stop and according below method to do stretch exercise for five times, and each foot do 10 seconds or more every time. -
Page 18: Maintenance Instruction
MAINTENANCE INSTRUCTION WARNING Please make sure pull out the treadmill's power plug before cleaning or maintaining the product. CLEANSING General cleaning or the unit will greatly prolong the treadmill's life. Keep treadmill clean by dusting regularly. Be sure to clean the exposed part of the deck on either side of the walking belt and also the side rails. - Page 19 BELT ADJUSTMENT Place treadmill on a level surface. Make treadmill run at approximately 6-8 km/h, observe the running belt deviate condition. If the belt has drifted to the right, unplug the safety lock and power switch, and turn the right adjusting bolt 1/4 turn clockwise, then insert the power switch and safety lock, make the treadmill running, observe the running belt deviate condition.
- Page 20 EXPLODED DRAWING...
- Page 21 PARTS LIST DESCRIPTION REMARK DESCRIPTION REMARK MOVING WHEEL PIPE MAIN FRAME 30*60 PLUG BASE FRAME POWER SWITCH UPRIGHT (L&R) INNER PIPE PLUG ∮ 35*15*(M6* HANDRAIL BAR PLANAR PAD ∮ 6.2*∮ 30*10 MOTOR BRACKET BLUE CUSHION ∮ 12*∮ 18*∮ 2 ANNULAR FRONT ROLLER SUBSTANTIAL PLUG REAR ROLLER...
- Page 22 DESCRIPTION REMARK DESCRIPTION REMARK ∮ 11*∮ 20*t2.0 BOLT M8*60 WASHER ∮ 9*∮ 16*t1.6 BOLT M8*20 WASHER ∮ 8.1*∮ 12.3*t2. BOLT M8*35 SPRING WASHER ∮ 14.5*∮ 8.4*t0.8 14 BOLT M6*45 WASHER BOLT M6*60 ALLEN WRENCH BOLT M10*30 SCREW DRIVER BOLT M8*25 ALLEN WRENCH BOLT M8*15...
-
Page 23: E R R O R C O D E A N D S I G N I F I C A N C
ERROR CODE AND SIGNIFICANCE Fault Code Fault Description Fault Processing Stop and go into fault. The machine can’t running, the Communication abnormal: computer shows fault code“E1”, and the buzzle will ringing The control and computer three tone. abnormal Possible reasons ： communication obstructed between communication after start controller and computer. - Page 24 Computer displays "E06" or “E8” Controller self checking Possible Reasons: The parts of controller are not connected well, please change them immediately. Computer displays “E6” or "E08". EEPROM (data memory) Possible Reasons: The parts of controller are not connected error well, please change them immediately.
