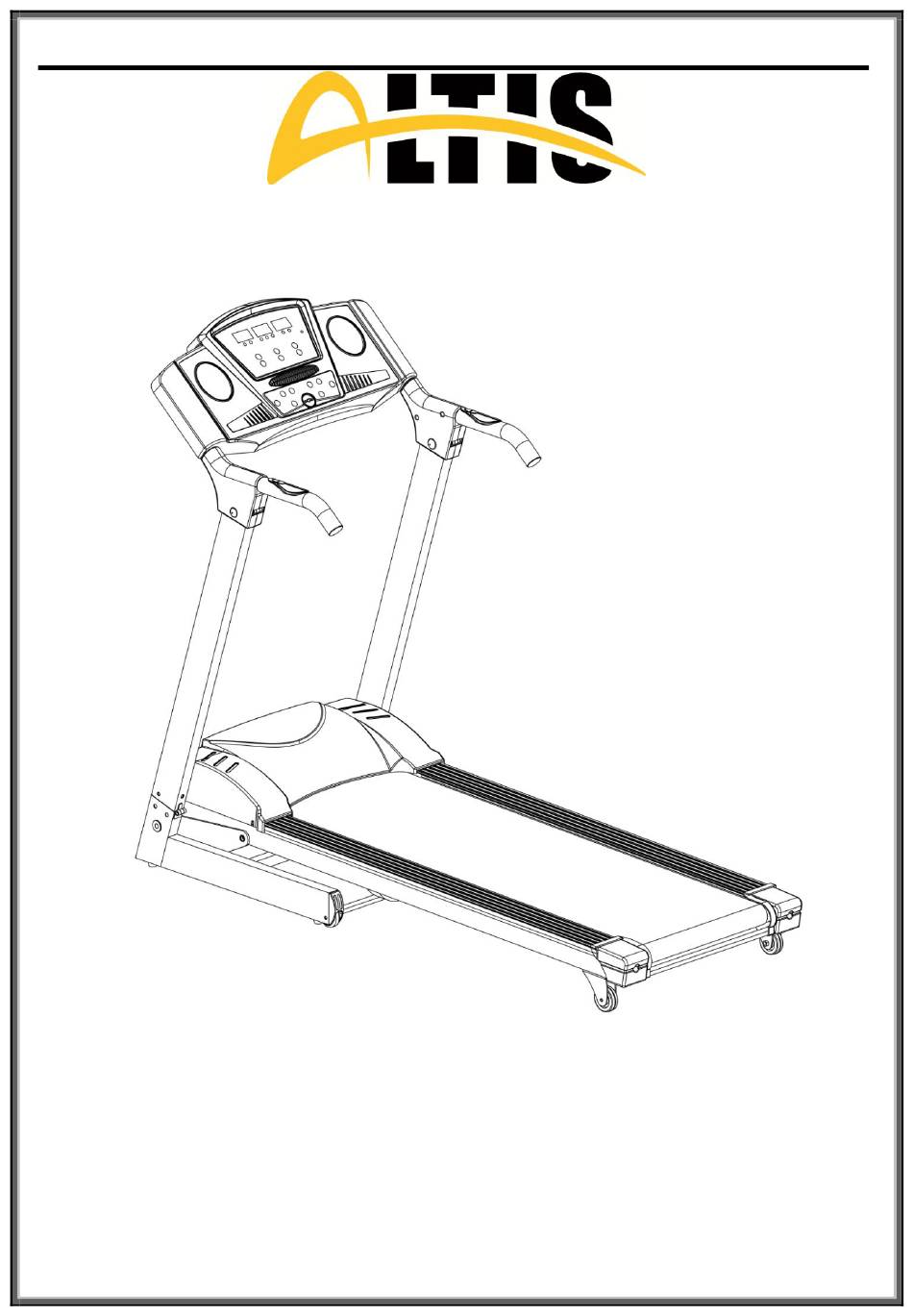

OSCAR MOTORIZED TREADMILL USER MANUAL
Special tips:
1.
Before installation and operation, please read this operation manual carefully.
2.
Please save this manual for future reference.
3.
Product may vary slightly from the item pictured due to model upgrades

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OSCAR and is the answer not in the manual?

Questions and answers

Related Manuals for Altis OSCAR

Summary of Contents for Altis OSCAR

  • Page 1 OSCAR MOTORIZED TREADMILL USER MANUAL Special tips: Before installation and operation, please read this operation manual carefully. Please save this manual for future reference. Product may vary slightly from the item pictured due to model upgrades...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING - Read all instructions before using this treadmill. It is important your treadmill receives regular maintenance to prolong its useful life. Failing to regularly maintain your treadmill may void your warranty. Danger–To reduce the risk of electric shock disconnect your treadmill from the electrical outlet prior to cleaning and/or service work.

  • Page 3: Important Electrical Information

    IMPORTANT ELECTRICAL INFORMATION WARNING! 1) NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power cord away from any moving part of the treadmill including the elevation mechanism and transport wheels. 2) NEVER operate treadmill on Generator or UPS power supply. 3) NEVER remove any cover without first disconnecting AC power.
  • Page 4 12) Please drink adequate water after taking exercises on our treadmill for more than 20 minutes. Warning: Now here we suggest that you should consult with your physician or health professional before starting your workout, especially for the age up to 35 old or once-health problem people. We take no responsible for any troubles or hurts if you don’t following our specification.

  • Page 5: Fixing Tools

    FIXING TOOLS: 5#ALLEN WRENCH 5mm 1pcs、 WRENCH W/SCREW DRIVER S=13、14、15 1pcs Notice: Do not get through power before complete assembly ASSEMBLY STEP ONE： Open the carton，get out the above spare parts，put the MAIN FRAME on the ground. ASSEMBLY STEP TWO: Pull up the computer and upright as arrow direction.
  • Page 6 ASSEMBLY STEP FOUR: Use the 5# allen wrench, drill through the bolt (80) to Lock washer(101), then lock the Right upright (4) onto MAIN FRAME (1) ASSEMBLY STEP FIVE: Use the 5# allen wrench, drill through the bolt (80) to Lock washer(101), then lock the COMPUTER (42) onto R&L upright (3,4).

  • Page 7: Folding Instruction

    FOLDING INSTRUCTION PULLING UP: Support place A with hand, then pull up following the arrow direction, till hearing the sound that the cylinder (B) is locked into the round tube PULLING DOWN: Support place A with hand , kick the place B of air pressure bar, then the base frame will fall down automaticlly...

  • Page 8: Technical Parameter

    TECHNICAL PARAMETER BUILT UP SIZE(mm) 1585*715*1315 INCLINE 0-12 FOLDABLE IZE(mm) 910*715*1470 SPEED RANGE 1.0-16KM/h RUNNING SURFACE 1250*450 SIZE(mm) SPEED 、TIME、INCLINE、DISTANCE、CALORIES 、PULSE DISPLAY This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug.

  • Page 9: Button Function

    2. ” TIME/CALORIES/DISTANCE” window: Display running time. Display the exercise time positive direction clock from 0：00-99：59 ,when count to 99:59, the machine will stop smoothly and show ‘ End ‘, then enter into initial situation after 5 seconds; When count down, it will show from the setting time to 0:00, when down to 0:00 , the machine will stop smoothly and show ‘...

  • Page 10: Start-Up Quickly(Manual)

    Fan button：open or stop the fan （Optional） START-UP QUICKLY(MANUAL) 1. Open the power switch, attach the magnet end of the safety pulling rope to the computer. 2. Press STATR/STOP button， the system will enter into 3 seconds count down, the buzzer will make sound and the time window display count down, the speed will run 1.0km/hour after 3 seconds.

  • Page 11: Inner Install Program

    press “SPEED+”, “SPEED-”, “INCLINE+”、 “INCLINE –“ to adjust the speed and the incline; press the STOP, the treadmill will stop. MANUAL MODE: 1. If you do not make any setting and press START button directly, the treadmill will start to run from the speed 1.0km/h, incline 0.

  • Page 12: Time Interval

    PROGRAM EXERCISE CHART Each program will divide into 10 grades for the exercise time and each time section has the speed and incline accordingly. TIME INTERVAL Time Program SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED...

  • Page 13: Save On Power Function

    BODY TESTER: At the beginning stage, press “ PROGRAM” continuely to select FAT “ MODE “ enter F-1、F-2、F-3、 F-4、F-5 ( F-1 SEX, F-2 AGE, F-3 HEIGHT, F-4 WEIGHT, F-5 BODY FAT ), Press “SPEED+”、“SPEED -” to set F-1 – F4 ( refer to the following chart), after that, press “ MODE” to set F-5, grasp the hand pulse, the window will display your body quality index after 3 senconds.
  • Page 14 CAUTION: 1. We recommend that you maintain a slow speed at the beginning of a session and hold on to the handrails until you become comfortable and familiar with the treadmill. 2. Attach the magnet end of the safety pulling rope to the computer and also attach the clip of the safety pulling rope to your clothing.
  • Page 15 times a week, and if possible space your workouts evenly throughout the week. To tone muscle while on your Treadmill you will need to have the resistance set quite high. This will put more strain on our leg muscles and may mean you cannot train for as long as you would like.

  • Page 16: Walking Belt And Deck Lubrication

    inside the motorized treadmill frame or from underneath the belt. Warning：Always unplug the treadmill from the electrical outlet before removing the motor cover. At least once a year remove the motor cover and vacuum under the motor cover. WALKING BELT AND DECK LUBRICATION This treadmill is equipped with a pre-lubricated, low maintenance deck system.

  • Page 17: Exploded Drawing

    EXPLODED DRAWING...
  • Page 18 PARTS LIST: DESCRIPTION REMARK DESCRIPTION REMARK LEFT HANDLEBAR MAIN FRAME COVER L LEFT HANDLEBAR BASE FRAME COVER R LEFT BOTTLE LEFT UPRIGHT BRACKET RIGHT BOTTLE RIGHT UPRIGHT BRACKET COMPUTER BRACKET COMPUTER MOTOR BRACKET TRANSFORMER INCLINE MOTOR BRACKET CONTROL BOARD TURNING BUSHING MAGNETIC SENSOR FRONT ROLLER SAFETY KEY...
  • Page 19 WHEEL COVER DC MOTOR MOTOR BELT PULSE UP WIRE PULE WITH SWITCH BLUE CUSHION PAD UP WIRE PULSE SPEED UP BLACK CUSHION PAD WIRE COMPUTER UP WIRE TRANSPORT WHEEL FOOT PAD 68 COMPUTER UP WIRE COMPUTER MIDDLE ADJUSTABLE WHEEL WIRE RING PROTECTING WIRE COMPUTER PLUG...

  • Page 20: Troubleshooting Guide

    TROUBLESHOOTING GUIDE 1、Probable reason for computer not workable after power start: The wire from computer to bottom control board didn’t connected well or the transformer was burnt out. Check the each wire from computer to control board, make sure they are connected well. If the wire is destroyed , change it.
