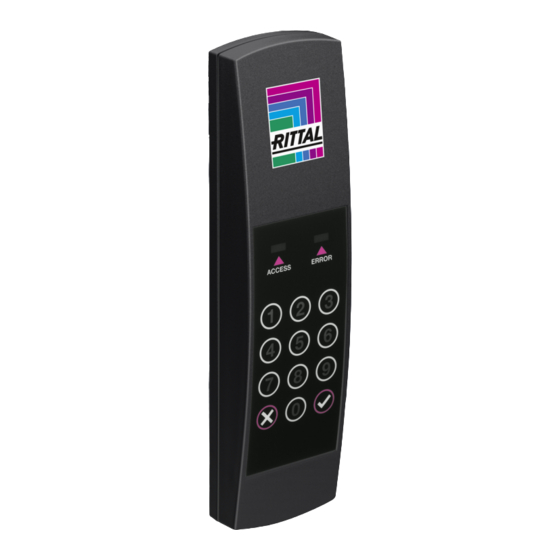

CMC III coded lock VX
DK 7030.222
DK 7030.223
Assembly and operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DK 7030.222 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rittal DK 7030.222

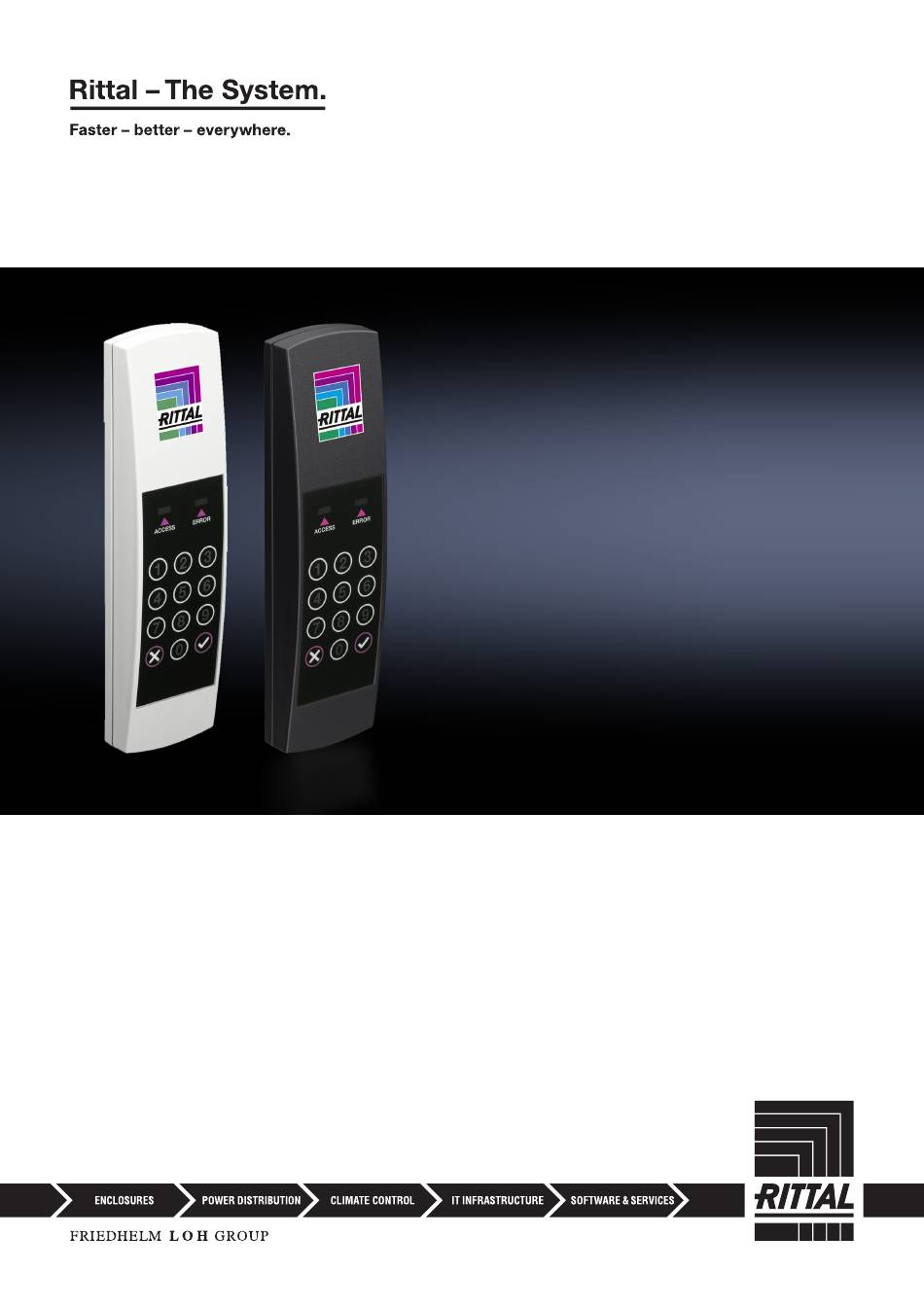

  • Page 1 CMC III coded lock VX DK 7030.222 DK 7030.223 Assembly and operating instructions...
  • Page 2 Rittal GmbH & Co. KG Auf dem Stuetzelberg 35745 Herborn Germany Tel.: +49(0)2772 505-0 Fax: +49(0)2772 505-2319 E-mail: info@rittal.de www.rittal.com www.rittal.de We are always happy to answer any technical questions regarding our entire range of products. Rittal CMC III coded lock VX...
  • Page 3: Table Of Contents

    6.5.1 Downloading the file ........11 6.5.2 Editing the file ..........11 6.5.3 Uploading the file ..........12 Storage and disposal ......13 Storage ............13 Disposal ............13 Technical specifications ...... 14 Customer service addresses ....15 Rittal CMC III coded lock VX...
  • Page 4: Notes On Documentation

    Additional compatible base systems can be CE labelling found on the internet at www.rittal.com for Rittal GmbH & Co. KG hereby confirms that the CMC III model no. DK 7030.223. The term "base systems" is used in these instructions as coded lock VX is compliant with the EC EMC Directive placeholder for the various systems.
  • Page 5: Safety Instructions

    Please observe the subsequent general safety instruc- tions for the installation and operation of the system: – Use only original Rittal products or products recom- mended by Rittal in conjunction with the coded lock. – Please do not make any changes to the coded lock that are not described in this manual or in the associ- ated manuals.
  • Page 6: Product Description

    The intended use also includes the observance of the documentation provided and fulfilling the inspection and maintenance conditions. Rittal GmbH & Co. KG is not liable for any damage which may result from failure to comply with the docu- mentation provided. The same applies to the non-ob- servance of the valid documentation for any deployed accessories and the base systems.
  • Page 7: Transport And Handling

    ◾ Check the unit for any damage that may have oc- curred during transport. Note: Damage and other faults, e.g. incomplete delivery, should be reported immediately, in writing, to the shipping company and to Rittal. ◾ Remove the unit from the PE film. Rittal CMC III coded lock VX...
  • Page 8: Installation

    VX sheet steel door (Fig. 2). ◾ Use a 90° countersink to deburr the holes for cable entry. ◾ Attach the coded lock to the prepared location using the pan-head screws provided. Rittal CMC III coded lock VX...
  • Page 9: Installation On A Vx It Glazed Door Or Vx It Vented Door

    ◾ Connect this handle via the connection cable to the Access Control/DCM. ◾ Connect the coded lock via the connection cable to the Access Control/DCM. ◾ Connect the CAN bus to the Access Control/DCM again. Rittal CMC III coded lock VX...
  • Page 10: Operation

    All lines from the first entry selected to Regardless of the next work steps: the last entry selected (inclusive) are selected. ◾ In the Security group frame, click on the Access Configuration button. Rittal CMC III coded lock VX...
  • Page 11: Monitoring Tab

    Monitoring tab. 6.5.2 Editing the file The file can now be edited using a text editor. Rittal Note: recommends using "Notepad++" for this instead of the As the coded lock does not have a separate standard "Notepad"...
  • Page 12: Uploading The File

    "access.cmc3" file. – Handle 2 is opened using access code "123456" ◾ Right-click the "access.cmc3" file and select the (line 12). User "Rittal" and the information "Info 2" are "Upload" action. entered in the CMC III PU logfile. ◾ If the file cannot be uploaded this way, first delete the –...
  • Page 13: Storage And Disposal

    7 Storage and disposal Storage and disposal Storage If the device is not used for a long period, Rittal recom- mends that it be disconnected from the mains power supply and protected from damp and dust. Disposal Since the coded lock consists mainly of the "housing"...
  • Page 14: Technical Specifications

    Numerical code 00000000 to 99999999 (variable) Keys 0-9, Clear, Enter Connection cable (m) Protection category IP 40 to IEC 60 529 Inputs and outputs Interface for Access Control/DCM Operation/signals LED display 2 x white Tab. 7: Technical specifications Rittal CMC III coded lock VX...
  • Page 15: Customer Service Addresses

    9 Customer service addresses Customer service addresses For technical queries, please contact: Tel.: +49(0)2772 505-9052 E-mail: info@rittal.de Homepage: www.rittal.com For complaints or service requests, please contact: Tel.: +49(0)2772 505-1855 E-mail: service@rittal.de Rittal CMC III coded lock VX...
  • Page 16 ◾ Climate Control ◾ IT Infrastructure ◾ Software & Services You can find the contact details of all Rittal companies throughout the world here. www.rittal.com/contact RITTAL GmbH & Co. KG Auf dem Stuetzelberg · 35745 Herborn · Germany Phone +49 2772 505-0...
