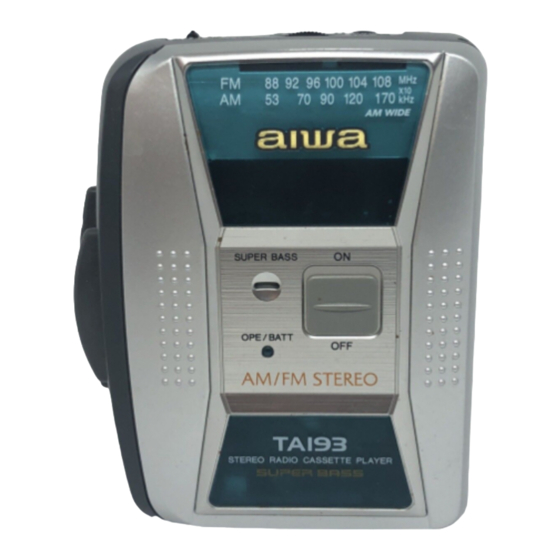

Aiwa HS-TA193 YU Service Manual
Stereo radio casette player
Hide thumbs
Also See for HS-TA193 YU:
- Operating instructions (2 pages) ,
- Service manual (7 pages) ,
- Service manual (12 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Aiwa HS-TA193 YU
Summary of Contents for Aiwa HS-TA193 YU

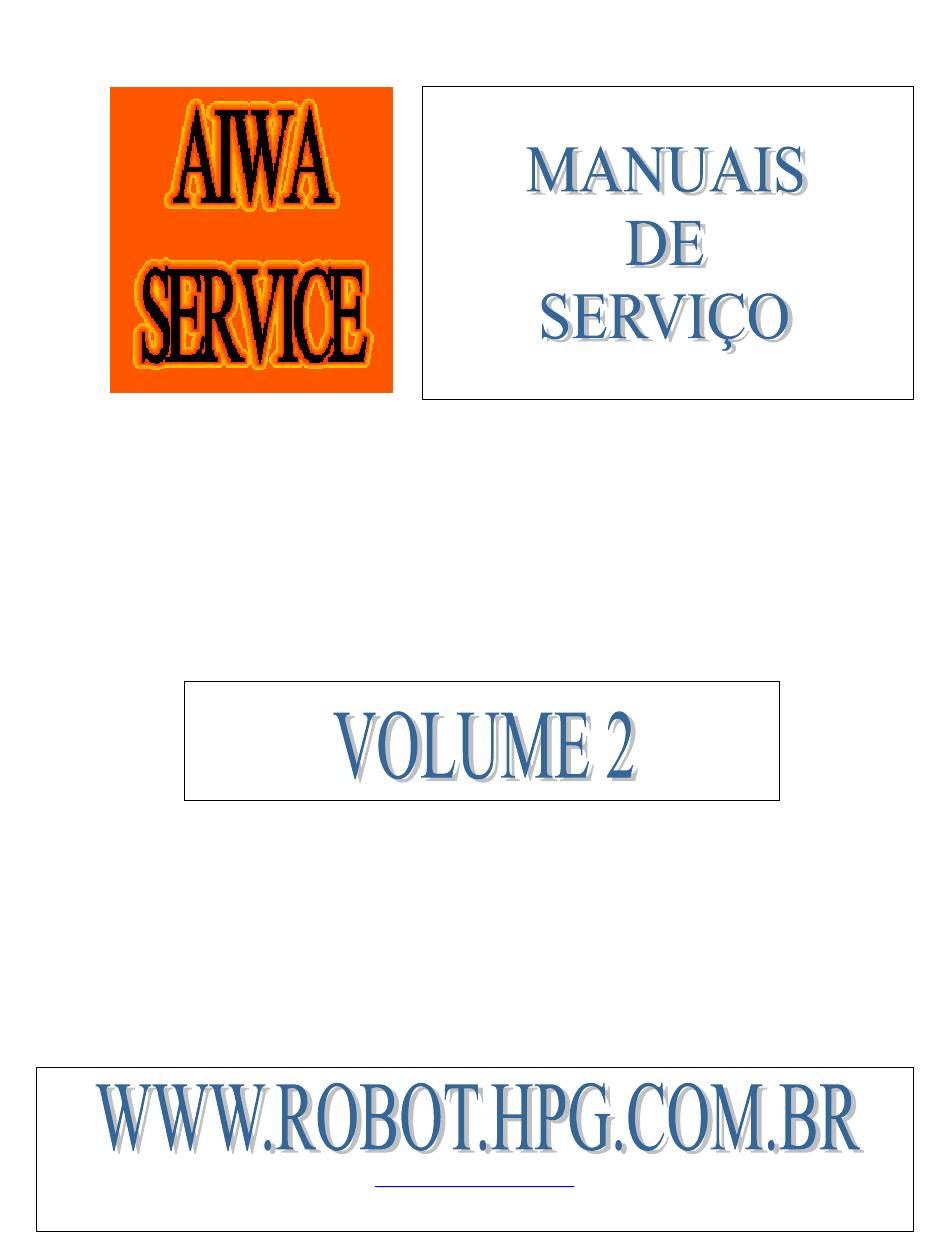

- Page 1 380 MANUAIS ROBOT@IEG.COM.BR...
- Page 2 SERVICE MANUAL...
- Page 3 If can’t understand for Description please kindly refer to “ REFERENCE NAME LIST ”. 8Z-HRL-911-010 IB,Y (EDPOHCZ)IN<YZ1> 8Z-HRL-910-010 IB,Y (EGFSI)IN<YZ1> 8Z-HRL-909-010 IB,YL (ESP)IN<YL1,YL> 8Z-HRL-907-010 IB,YU (ESF)IN<YU> 84-447-019-310 CLIP,BELT 87-B30-124-010 HEADPHONE,HP-M028<YU,YL> 87-B30-145-110 HEADPHONE,HP-M029(T)<YL1,YZ1>...
- Page 4 CHIP RESISTOR PART CODE Chip Resistor Part Coding C114 87-010-213-080 C-CAP,S 0.015-50 B C115 87-010-213-080 C-CAP,S 0.015-50 B 87-A20-852-040 C-IC,LAG668FT2 C116 87-010-503-040 CAP,E 220-4 GAS 87-A20-851-040 C-IC,TA2111F C117 87-010-452-080 CAP,1-16 C118 87-010-497-040 CAP,E 4.7-35 GAS Figure TRANSISTOR C119 87-010-178-080 C-CAP,S 1000P-50 K B Resistor Code C120 87-016-461-080...
-
Page 6: Schematic Diagram
SCHEMATIC DIAGRAM... - Page 7 <TUNER SECTION> A MAIN C.B <TAPE SECTION> <FM SECTION> Sensitivity : Tape speed : 3000Hz ± 60Hz (IHF, THD 3%) Less than 17dB[at 88/98MHz] Wow & flutter : Less than 0.50% (RMS) Less than 18dB[at 108MHz] Take-up torque : 35 ~ 50 g-cm (FWD, REV) Signal to noise ratio : More than 50dB F.F torque :...
- Page 8 84-ZM2-225-010 84-ZM2-226-010 SPR-T,AUTO FIND SPR-C,CLUTCH 84-ZM2-228-010 SPR-C,BT 84-ZM2-224-010 SPR-T,FF LOCK 84-ZM2-222-010 SPR-T,PLAY 84-ZM2-227-010 84-ZM2-223-010 SPR-C,AZIMUTH SPR-T,REW STOP...
- Page 10 8Z-HRL-003-010 KNOB,SL SBASS 8Z-HRL-002-010 PANEL,SBASS<[S]YU,YL> 8Z-HRL-030-010 PANEL,SBASS SMK YZ<[LL]YZ1,[GL]YZ1> 8Z-HRL-005-010 PANEL,SBASS YZ<[S]YZ1> 8Z-HRL-001-010 LID,CASS<EXCEPT [LL]YZ1,[GL]YZ1> 8Z-HRL-022-010 LID,CASS BLUE<[LL]YZ1> 8Z-HRL-025-010 LID,CASS GRE<[GL]YZ1> 4 86-HRM-205-010 SPR-T,CLICK 81-HK9-208-210 SPR-P,CASS A 87-HRR-206-010 PLATE,HEAD J034<EXCEPT [LL]YZ1,[GL]YZ1> 88-HKB-204-010 PLATE,HEAD J266G<[GL]YZ1> 88-HKB-205-010 PLATE,HEAD VIO<[LL]YZ1> 88-HKA-029-010 FRAME,CENTRE GRE<[GL]YZ1> 88-HKA-033-010 FRAME,CENTRE J034<EXCEPT [LL]YZ1,[GL]YZ1>...
- Page 11 FRAME,CENTER...
- Page 12 84-ZM2-012-010 LEVER,PLAY G 84-ZM2-211-01K GEAR,CONNECT 84-ZM2-222-010 SPR-T,PLAY 84-ZM2-015-010 LEVER,STOP G 84-ZM2-014-010 LEVER,REW G 84-ZM2-013-010 LEVER,FF 84-ZM2-223-010 SPR-T,REW STOP 84-ZM2-232-010 BELT,MAIN 84-ZM2-221-010 FLY-WHL,P2 84-ZM2-230-010 CAPSTAN,P 1.8-25 84-ZM2-220-01K BRG,P 84-ZM2-210-01K GEAR,AUTO 84-ZM2-218-01K CAP,GEAR AUTO 84-ZM2-208-01K LEVER,SHIFT 84-ZM2-224-010 SPR-T,FF LOCK 84-ZM2-207-01K LEVER,AUTO 84-ZM2-206-01K LEVER,LOCK 84-ZM2-219-01K PULLEY,MOTOR...
