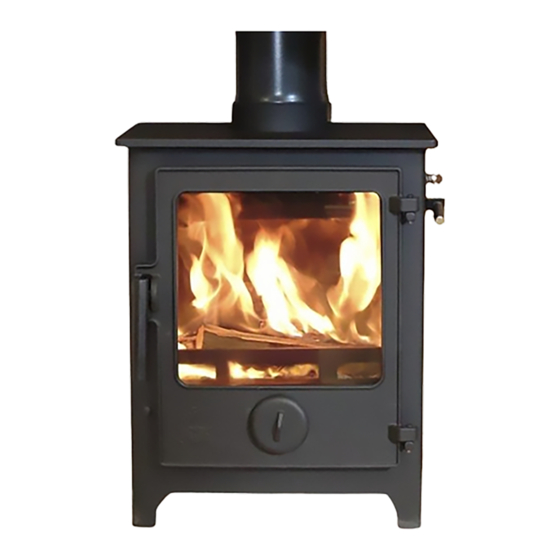

Dean Forge Dartmoor Baker 5E Eco Operating Instructions Manual

Dean Forge Dartmoor Baker 5E Eco Operating Instructions Manual

Advertisement

Quick Links

D
S
ean
toves
Dean Forge Fabrication Ltd. Dean Prior, Buckfastleigh, Devon TQ11 0LS
T e l: 0 1 3 6 4 6 4 3 5 7 4
w w w.d e a n–f o r g e.c o.u k
e m a i l: s t o v e s @ d e a n-f o r g e.c o.u k
Operating Instructions for The Dean Forge Dartmoor Baker 5E Eco
and Dartmoor Baker W5E Eco Stoves
st
DMB5/DMBW5E issue 1. 21
October 2019
All stoves meet the essential type test requirement BS EN13240:2001 +
A 2:2004
The Clean Air Act 1993 and Smoke Control Areas
Under the Clean Air Act local authorities may declare the whole or part of the district of the authority
to be a smoke control area. It is an offence to emit smoke from a chimney of a building, from a
furnace or from any fixed boiler if located in a designated smoke control area. It is also an offence to
acquire an "unauthorised fuel" for use within a smoke control area unless it is used in an "exempt"
appliance ("exempted" from the controls which generally apply in the smoke control area).
The Secretary of State for Environment, Food and Rural Affairs has powers under the Act to
authorise smokeless fuels or exempt appliances for use in smoke control areas in England. In
Scotland and Wales this power rests with Ministers in the devolved administrations for those
countries. Separate legislation, the Clean Air (Northern Ireland) Order 1981, applies in Northern
Ireland. Therefore it is a requirement that fuels burnt or obtained for use in smoke control areas have
been "authorised" in Regulations and that appliances used to burn solid fuel in those areas (other
than "authorised" fuels) have been exempted by an Order made and signed by the Secretary of State
or Minister in the devolved administrations.
The Dean Stoves, Dartmoor Baker 5 Eco and Dartmoor Baker W5 Eco has been recommended as
suitable for use in smoke control areas when burning wood logs.
The Dean Stoves Dartmoor Baker 5 Eco and Dartmoor Baker W5 Eco is factory fitted with a
permanent stop to prevent closure of the secondary air control for use in a smoke-controlled area
Further information on the requirements of the Clean Air Act can be found here:
http://smokecontrol.defra.gov.uk/
Your local authority is responsible for implementing the Clean Air Act 1993 including designation and
supervision of smoke control areas and you can contact them for details of Clean Air Act
requirements
Page 1 of 18

Advertisement

loading
Need help?

Need help?

Do you have a question about the Dartmoor Baker 5E Eco and is the answer not in the manual?

Questions and answers

Summary of Contents for Dean Forge Dartmoor Baker 5E Eco

  • Page 1 @ d e a n-f o r g e.c o.u k Operating Instructions for The Dean Forge Dartmoor Baker 5E Eco and Dartmoor Baker W5E Eco Stoves DMB5/DMBW5E issue 1.
  • Page 2: Safety Note

    Safety Note Warning- The external parts of the appliance will get very hot to the touch and due care will be needed when operating. All stoves before being operated must be checked that the installation complies with all local, national and European standards.
  • Page 3 Controlling the stove Primary air control A is spin wheel on the door The primary air control is a spin wheel on the door, this control is used for lighting the fire or boosting the fire this also is the main control when burning solid fuel when a multi-fuel kit in fitted.
  • Page 4 Please note: If there is insufficient burning material in the fire bed to light a new fuel charge, excessive smoke emission can occur. Refuelling must be carried out onto a sufficient quantity of glowing embers and ash so that the new fuel charge will ignite in a reasonable time, about one to two minutes. If there are too few embers in the fire bed, add suitable kindling to prevent excessive smoke Fuel overloading The maximum amount of fuel specified in this manual should not be exceeded, overloading can cause...
  • Page 5 It is recommended that you clean soot and deposits that build up on the outside of the oven (in the fire compartment.) The back and sides can be cleaned through the fire box, remove the baffle plate and clean with a small long handled flue brush. Access to the top of the oven can be gained through the cleaning access in the top of the oven.
  • Page 6 • Check the chimney breast in other rooms for signs of excessive heat and move objects away if necessary • At all times consider the safety of yourself and others in taking the above action Fitting Instructions for The Dean Forge Dartmoor Baker 5 Eco and Baker W5 Eco Stove Unpacking Stove Remove all the polystyrene transit blocks holding the baffles.
  • Page 7 Chimney The Dartmoor Baker 5 Eco and Baker W5 Eco models require a 125mm (5”) first length of flue then stepping up into a minimum of 150mm (6”) liner. When using this stove with the smoke exempt air stop fitted the flue liner can be reduced to 125mm (5”). We strongly advise a minimum diameter of 150mm (6”) flue liner be fitted when possible.
  • Page 8 Corner installation from Rear and side wall installation combustible walls from combustible walls Spigot Shield The minimum distances to combustible materials have been tested and approved when a spigot shield is fitted to the top of the heat shield. The spigot shield must be fitted to achieve these distances. The spigot shield “which is in the glove pack”...
  • Page 9 Flue Connections and Outlets Flue Connections and Outlets Dean Stoves can be flued from the top and the back, or with a vertical back box. Horizontal flue from back of stove should not exceed 150mm. Diagrams showing the flue outlet from the top (A), back (B) and back box (C) All flue connections must be sealed with fire cement.
  • Page 10 Stove Performance Appliance Dartmoor Baker 5 Eco Dartmoor Baker W5 Eco Fuel Wood Wood Total Efficiency 82.1 80.7 83.1 79.7 Nominal heat output 5..0 Mean CO emission (at 13 % O 0.08 0.12 0.11 0.08 Mean flue gas temperature ºC Flue gas mass flow Mean C (at 13 % O...
  • Page 11 Installing a Multi-fuel kit in a Dartmoor Baker 5 Eco To install a multi-fuel kit into a Dartmoor Baker 5 woodburner first remove the inner side bricks by lifting the baffle plate up on one side above the side brick then slide the side brick out being careful not to damage it.
  • Page 12 Installing a Multi-fuel kit in a Dartmoor Baker W5 Eco To install a multi-fuel kit into a Dartmoor Baker W5 woodburner first remove the inner side bricks by lifting the baffle plate up on one side above the side brick then slide the side brick out being careful not to damage it.
  • Page 13: Ec Declaration Of Conformity

    EC Declaration of Conformity The Undersigned, representing the following: Manufacturer Dean Forge Ltd Dean Prior, Buckfastleigh, Devon, TQ11 0LS Herewith declare that the products: Description Product Code Dartmoor Baker 5 Eco STDFEDDAB5 Dartmoor Baker W5 Rco STDFEDDABW5 Description of product: Dartmoor wood and multifuel heating stove product range.
  • Page 14 Provisions to which the product conforms: Product: Roomheater fired by solid fuel as covered under the scope of the standards listed. Intended use: Space heating in residential building. Characteristic Performance Report Fire Safety Satisfies Dartmoor 5- STDFEDDAB5 Co @ 13% 0² Wood 0.08% Ancit 0.12% 5Kw @ 82.1% Wood -5Kw @ 80.7% Ancit Dartmoor W5- STDFEDDABW5 co@ 13% 0²...
  • Page 15 Product Fiche according to Commission Delegated Regulation (EU)2015/1187 Energy Labelling of Local Space Heaters Supplier's Name Dean Stoves Model Dartmoor W5 Eco Energy Efficiency Class Nominal Heat Output to Room (KW) Nominal Heat Output to Water (KW) Seasonal Space Efficiency (%) 73.1 Net Efficiency (%) 83.1...
  • Page 16 THE DEAN FORGE FABRICATION LTD STOVES GUARANTEE Dean Forge Fabrication Ltd offers a five-year guarantee which covers the main body of the stove for manufacturing defects. In the event of a manufacturing defect we will replace any defective part free of charge, labour cost excluded.
  • Page 17 Page 17 of 18...
  • Page 18 Dean Forge Fabrications Ltd Dean Prior Buckfastleigh Devon TQ11 0LS PRODUCT REGISTRATION Name ......................Address ...............................................................................Phone Number: ..........Suppliers Details: Name ......................Address ...............................................................................Phone Number: ..........Installers Details: Name ......................Address ......................................................................
