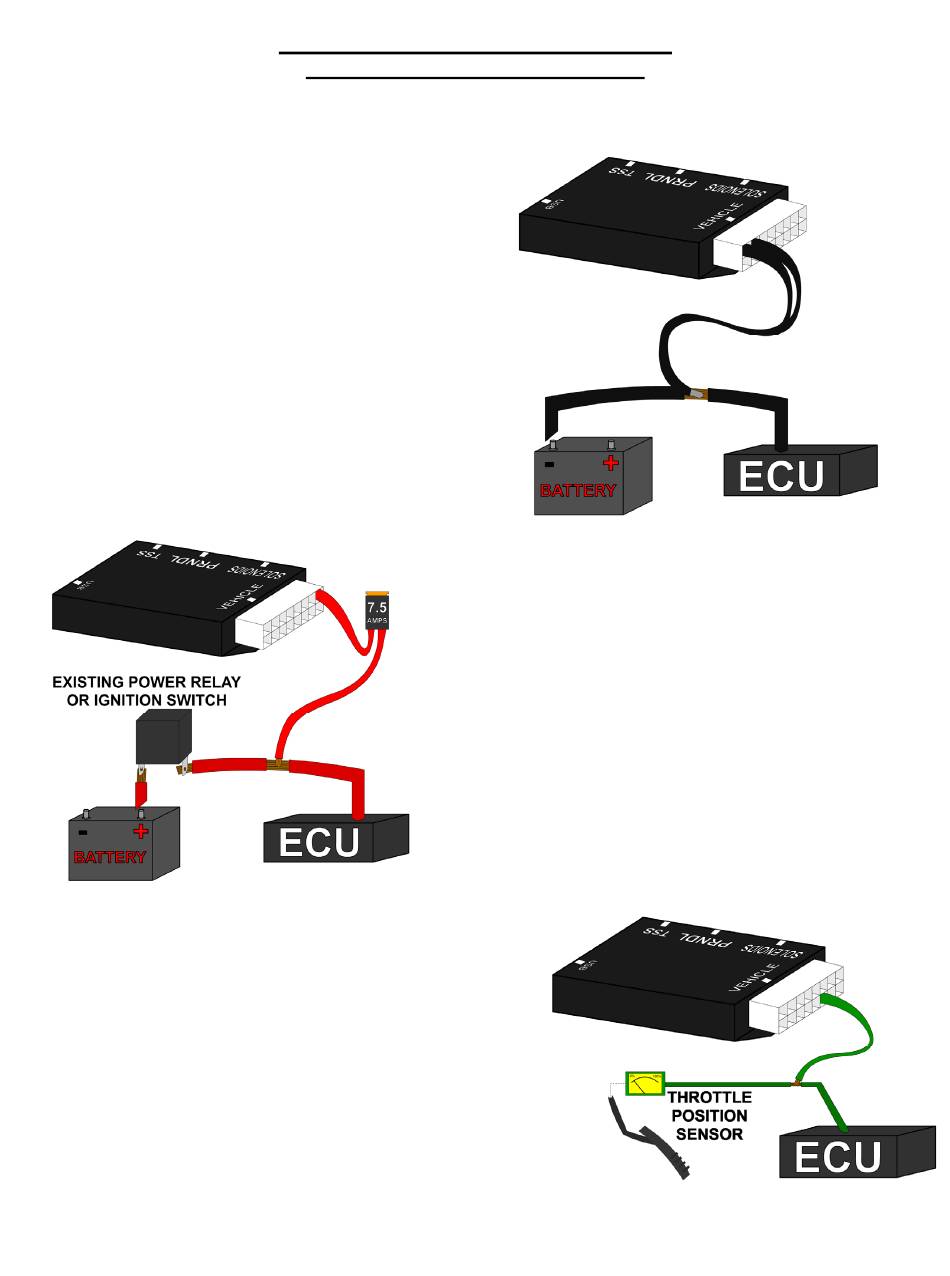

Step 1: Ground
Splice the ground wires (Pins 15 & 16
Black) from the Quick 2 into the main ECU
(Engine Control Unit) ground wire. Do NOT
connect the ground wires to sheet metal or
other ground sources. The Quick 2 MUST
be connected to the Main ECU ground, as
close to the ECU as possible. The reason
for this connection method is because the
TPS is shared between the two systems
and improper grounding will corrupt the TPS
signal.
Step 3: Throttle Position Sensor
or Accelerator Pedal Position Sensor
Splice the Throttle Position Sensor signal wire
(Pin 3 Green) from the Quick 2 into the Throttle
Position Sensor (TPS) signal input of the ECU
(Engine Control Unit). If the vehicle has
Electronic Throttle Control, use the Accelerator
Pedal Position (APP) Sensor instead of the
TPS.

CONNECTING THE ESSENTIALS

(ELECTRONIC FUEL INJECTION)
Step 2: Power
Splice the power wire (Pin 9 Red with 7.5 Amp
fuse) from the Quick 2 into the main ECU
(Engine Control Unit) ignition-switched power
wire. Power should be supplied during
cranking as well as while running.
