User Guide

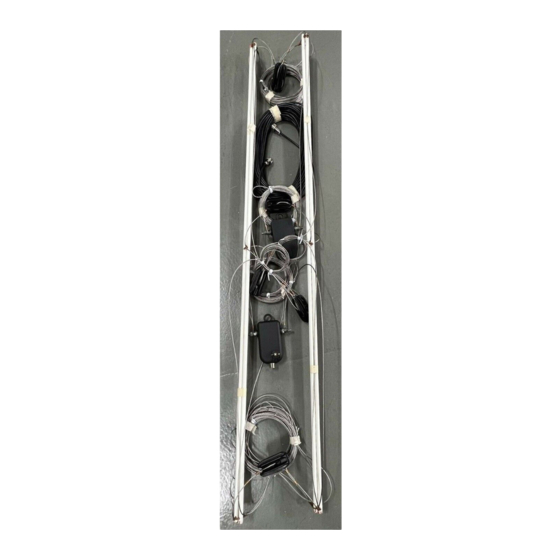

912 Single-wire Broadband Dipole Antenna 150W
P/N BC91201 (27m)
P/N BCM91205/1
© Barrett Communications

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BC91201 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Barrett BC91201

Summary of Contents for Barrett BC91201

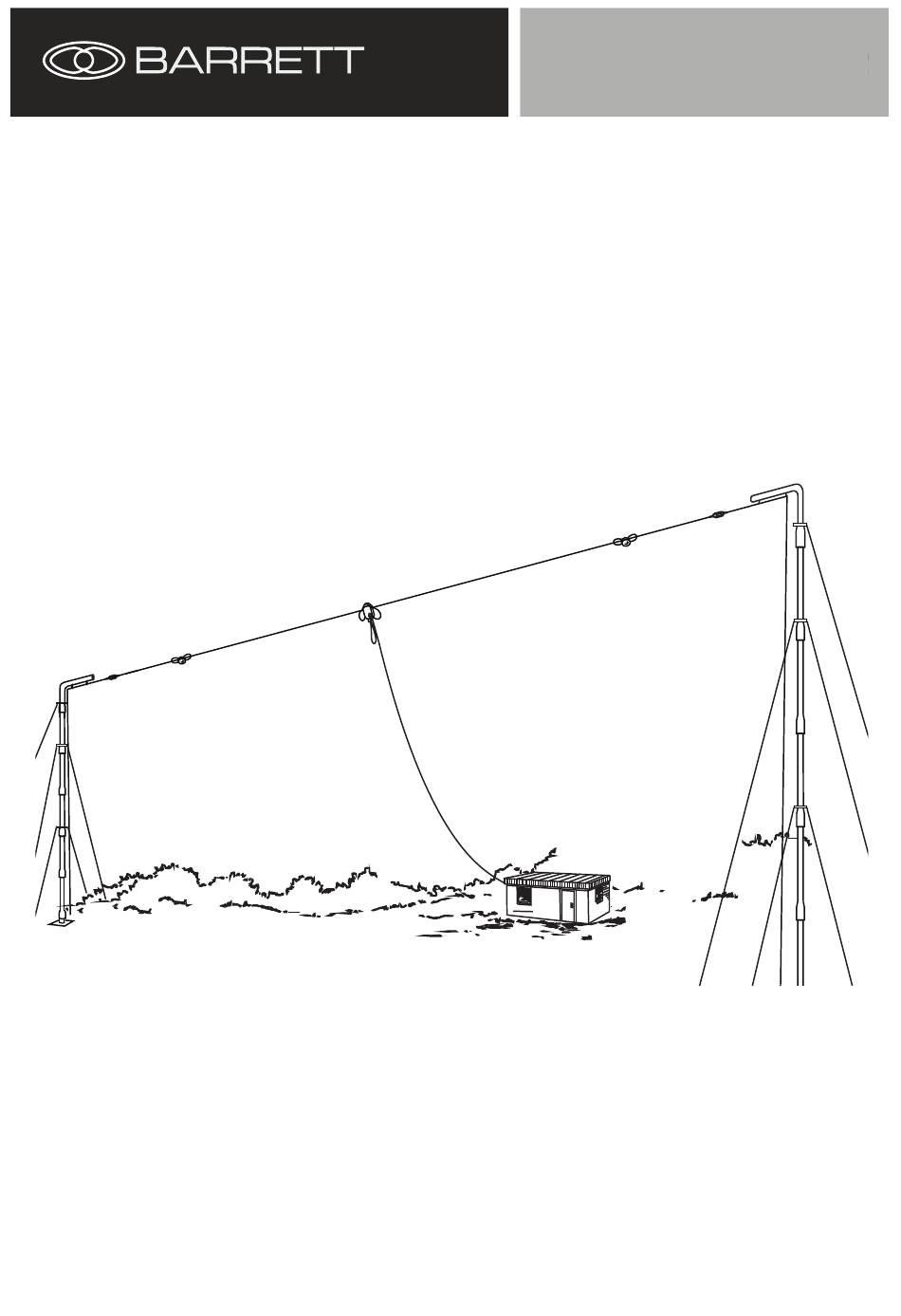

  • Page 1 User Guide 912 Single-wire Broadband Dipole Antenna 150W P/N BC91201 (27m) P/N BCM91205/1 © Barrett Communications...
  • Page 2 Halyards and pulleys required to hoist and support the antenna are not supplied, however they can be purchased sepa- rately from Barrett Communications (Halyard and Pulley Kit P/N BCA91201). It is recommended that the halyards used to support the antenna be either UV stabilised dacron cord or wire rope and that pulleys be of stainless steel construction.
  • Page 3 Antenna Orientation The orientation of the antenna at the site is vitally important. In Horizontal configuration, the radiation is broadside to the antenna i.e. if transmissions need to travel in a predomi- nantly North-South direction, the antenna should be set up with the ends pointing East-West. Horizontal Configuration For Inverted V, the antenna becomes more suitable for NVIS, with radiation being directed at high angles, but omnidirec- tional around the antenna on a horizontal plane.
  • Page 4 Installation - Inverted V Take the antenna in its box to its installation point, below the hoisting rope. Carefully remove antenna from box and - with RESISTOR LOADS FACING DOWN - lay on ground. DO NOT REMOVE TAPE. Carefully remove tape and cable ties and extend each section one at a time until extended to full length. Attach a hoisting cord to the balun.
  • Page 5 Installation - Horizontal Configuration Take the antenna in its box to its installation point, below the hoisting rope. Carefully remove antenna from box and - with RESISTOR LOADS FACING DOWN - lay on ground. DO NOT REMOVE TAPE. Carefully remove tape and cable ties and extend each section one at a time until extended to full length. Attach rope to each insulator (one at each end) and slowly hoist between the two mounting points ensuring that the wires do not tangle.
