912 Multiwire broadband dipole antenna - 1Kw (54M/27M)
P/N BC91203/BC91207

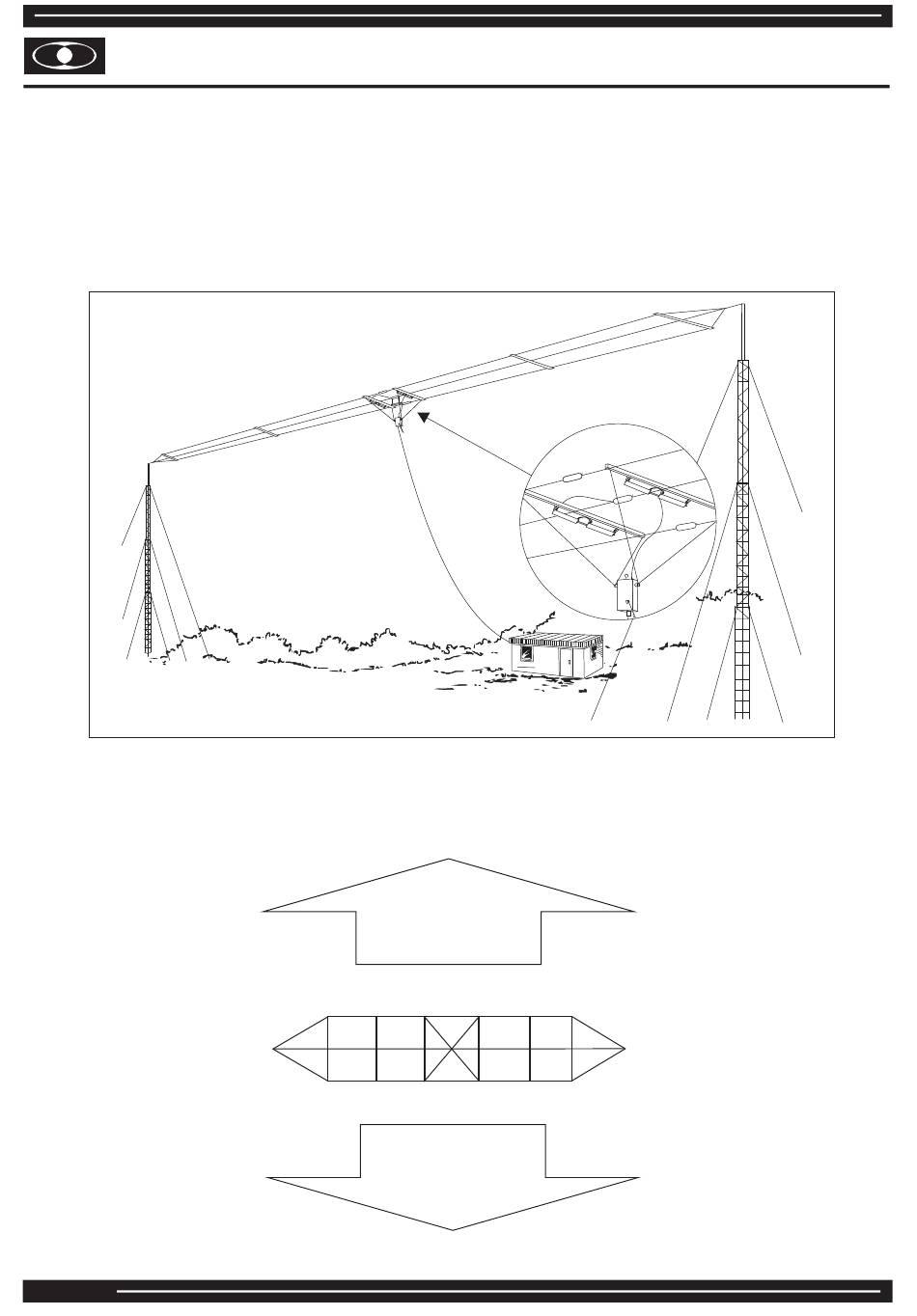

BARRETT 912 Multiwire broadbands can be mounted either in a horizontal or inverted 'V'
configuration. The minimum distance between the masts is 32 metres for the 27 metres mast and
60 metres for the 54 metres mast. The recommended mast height is 15 metres. The balun hangs
below the antenna.
In the horizontal configuration the major radiation direction is broadside to the antenna.
BCM91203/4
