Summary of Contents for Barrett 912

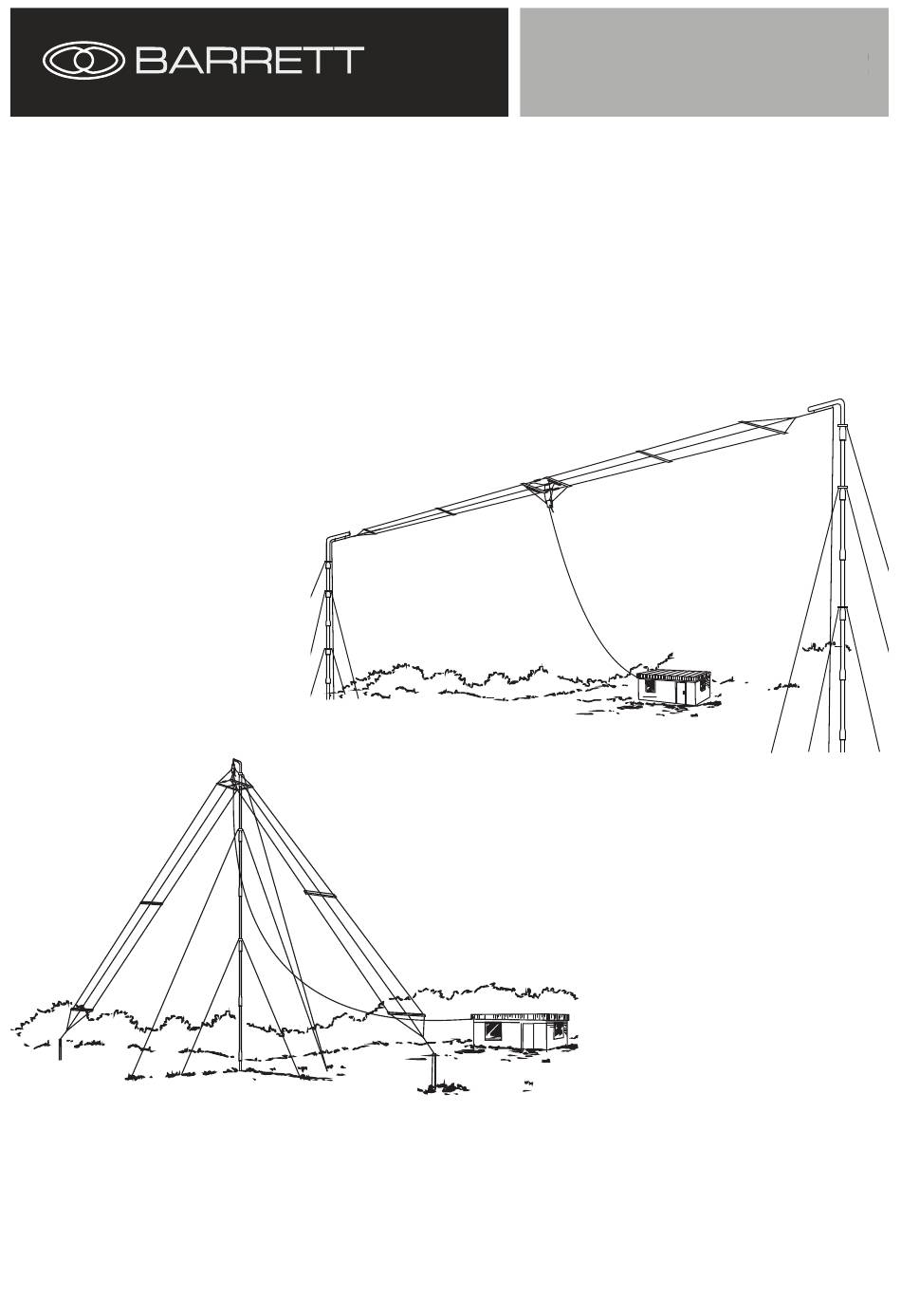

- Page 1 User Guide 912 Multi-wire Broadband Dipole Antenna 500W P/N BC91202 (27m) P/N BCM91202/7 © Barrett Communications...
- Page 2 10m Mast with nylon guys (P/N BC90205/FR/PR) 1x coaxial cable 10m Mast with stainless steel guys (P/N BC902906/FR/PR) 1x Inverted V mounting kit (1x yoke, 1x insulated cable) Barrett 912 Multiwire broadbands Horizontal Configuration (500W) can be mounted using a 10-15m mast.
- Page 3 Antenna Orientation The orientation of the antenna at the site is vitally important. In Horizontal configuration, the radiation is broadside to the antenna i.e. if transmissions need to travel in a predomi- nantly North-South direction, the antenna should be set up with the ends pointing East-West. Horizontal Configuration For Inverted V, the antenna becomes more suitable for NVIS, with radiation being directed at high angles, but omnidirec- tional around the antenna on a horizontal plane.
- Page 4 Installation - Inverted V Installation - Inverted V Take the antenna in its box to its installation point, below the hoisting rope. Carefully remove antenna from box and - with RESISTOR LOAD FACING DOWN - lay on ground. Remove balun and Inverted V mounting kit from box. Locate the ‘drop wires’.
- Page 5 Installation - Horizontal Configuration Installation - Horizontal Configuration Take the antenna in its box to its installation point, below the hoisting halyard. Carefully remove antenna from box and lay it on the ground ensuring that the resistor load is facing down. Ensure wires do not tangle.
