Brooklyn Side Drawers
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
locking nut
bolt
x16
x16
E
F
small screw
x20
L + R
x4

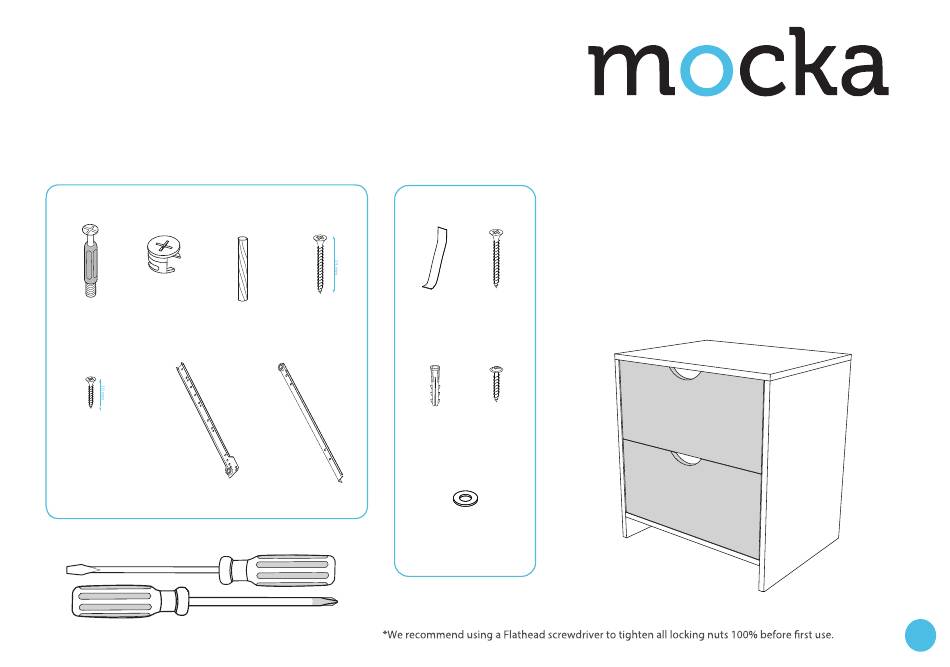

Hardware Supplied
Phillips & Flathead screwdrivers required
mocka.co.nz | mocka.com.au
C
D
long screw
dowel
x8
x8
G
L + R
x4
WARNING:
W
potential to tip over in certain circumstances, i.e. if a child attempts to
climb up on the furniture or in the event of an earthquake. Accordingly,
we recommend that all furniture is anchored to a wall. We supply a free
safety wall anchor with all furniture sold and we recommend these are
used to prevent your product tipping. The fixing device provided should
fit most wall types, but please note that different wall materials may
require different fixing devices from those supplied.
Wall
Safety
Screw
Strap
X
Y
wall
r/washer
anchor
screw
x1
x1
Z
washer
x1
Wall St r ap
Any furniture that is not anchored to a wall has the
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mocka Brooklyn Side Drawers
Summary of Contents for Mocka Brooklyn Side Drawers
- Page 1 Brooklyn Side Drawers Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Brooklyn Side Drawers Assembly Instructions To begin assembly, attach 2x slide rails (F) in place on each of the Screw in bolts (A) and insert dowels (C) into holes in panels [1] and [2]. panels [1] and [2] as shown using 2x small screws (E) in each rail Slot together with panel [3] as shown.
- Page 3 Brooklyn Side Drawers Assembly Instructions Slide back panel [4] down into place along the grooves in side and Screw in 4x bolts (A) and insert 4x dowels (C) into holes in top panel [5]. base panels as shown. Slot together with the rest of the structure. Place 4x locking nuts into the side panels and tighten with a screwdriver.
- Page 4 Brooklyn Side Drawers Assembly Instructions Drawers (x2) Drawers (x2) To assemble the drawers, first attach side panels [6] and [7] to back Slide the base panel [9] into place in the grooves in the side and back panel [8] using 4x long screws (D) in the holes provided and tighten panels.
- Page 5 Brooklyn Side Drawers Jolt Wardrobe Assembly Instructions ASSEMBLY INSTRUCTIONS Drawers (x2) Drawers (x2) Attach 2x rail components (G) to both left and right sides of the drawer Check all screws are securely fastened. Repeat Steps 5 to 8 to using 4x screws (E).
- Page 6 Brooklyn Side Drawers Assembly Instructions Slide both completed drawers into place on the rails in the cabinet as Ensure all drawers easily slide open and closed. shown. mocka.co.nz | mocka.com.au...
- Page 7 Brooklyn Side Drawers Assembly Instructions Wall Strap Strap Washer wall anchor wall screw Attach safety strap (W) to the top of the back side of the unit using Once assembled lift furniture into place, do not drag. Use a drill to create screw (Y).
