Brooklyn Drawers
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
locking nut
x30
bolt
x30
E
F
small screw
x40
L + R
x8

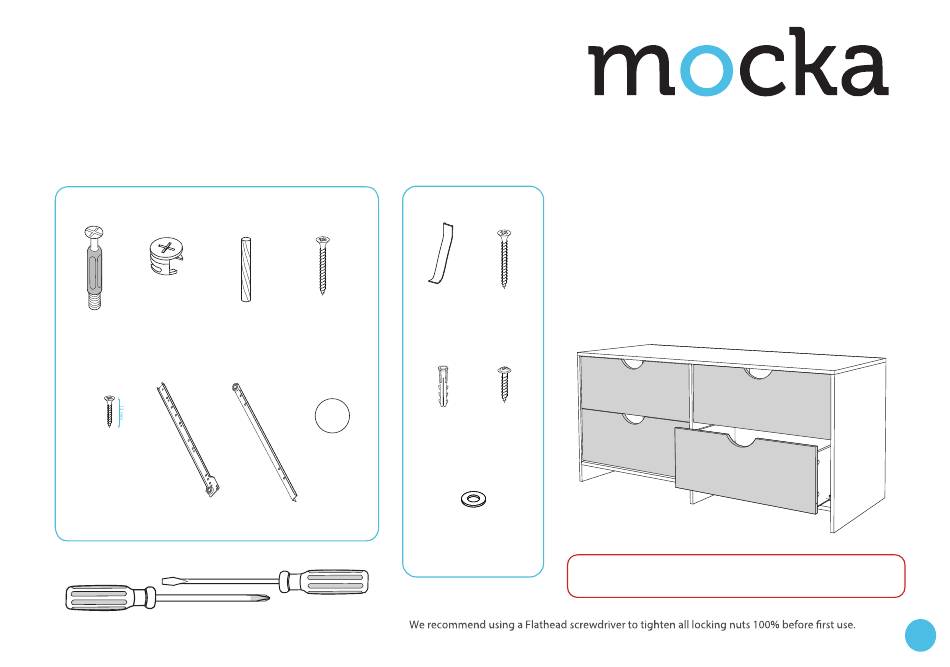

Hardware Supplied
Phillips & Flathead screwdrivers required
mocka.co.nz | mocka.com.au
C
D
long screw
dowel
x16
x46
G
H
hole cap
x16
L + R
x8
*
WARNING:
W
potential to tip over in certain circumstances, i.e. if a child
attempts to climb up on the furniture or in the event of an
earthquake. Accordingly, we recommend that all furniture is
anchored to a wall. We supply a free safety wall anchor with all
furniture sold and we recommend these are used to prevent
your product tipping. The fixing device provided should fit most
wall types, but please note that different wall materials may
Wall
require different fixing devices from those supplied.
Safety
Screw
Strap
X
Y
wall
r/washer
anchor
screw
x1
x1
Z
washer
x1
Wall Strap
Once assembly is complete, please DO NOT drag the product
(lift only to move). Dragging may damage this product.
Any furniture that is not anchored to a wall has the
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Brooklyn Drawers
Summary of Contents for Mocka Brooklyn Drawers
- Page 1 Brooklyn Drawers Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Brooklyn Drawers Assembly Instructions Screw in bolts (A) and insert dowels (C) into holes in panel [2]. Slot Screw in bolts (A) and insert dowels (C) into holes in panel [2]. Slot together with panel [3] as shown. Place locking nuts (B) into together with panel [4] as shown.
- Page 3 Brooklyn Drawers Assembly Instructions Screw in 2x bolts (A) and insert 2x dowels (C) into holes in panel [5]. Screw in 2x bolts (A) and insert 2x dowels (C) into holes in panel [6]. Slot Slot together with the rest of the structure as shown. Place 2x locking together with the rest of the structure as shown.
- Page 4 Brooklyn Drawers Assembly Instructions Slot back panel [7] into grooves on the back of the unit. Ensure the Screw 6x bolts (A) and insert 6x dowels (C) into holes in panel [1]. Slot panel is aligned and slides down into place.
- Page 5 Brooklyn Drawers Jolt Wardrobe Assembly Instructions ASSEMBLY INSTRUCTIONS Drawers (x4) Drawers (x4) Screw 4x bolts (A) into front panel [8]. Fit panels [9] and [10] over the Slot panel [11] down into grooves in the side and front panels. Insert 2x bolts as shown, ensuring grooves in panels face inwards.
- Page 6 Brooklyn Drawers Assembly Instructions Drawers (x4) Drawers (x4) Insert 2x dowels (C) into the other end of each support piece [12]. Finally, attach rail hardware (G) to both left and right side of the drawer Place back panel [13] into position on dowels and fasten into place using screws (E).
- Page 7 Brooklyn Drawers Assembly Instructions Attach 8x slide rails (F) inside the cabinet as shown using 3x small Slide all four completed drawers into place on the rails in the cabinet unit. screws (E) in each rail. Fasten all screws with a screwdriver.
- Page 8 Brooklyn Drawers Assembly Instructions Wall Mount Strap Washer wall anchor wall screw Attach 1x safety strap (W) to the top of the back side of the unit using Once assembled lift furniture into place, do not drag. Use a drill to 1x r/washer screw (Y).
