Maya Three Drawer
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
long
dowel
screw x16
x16
D
E
stopper
small
x3
screw x3

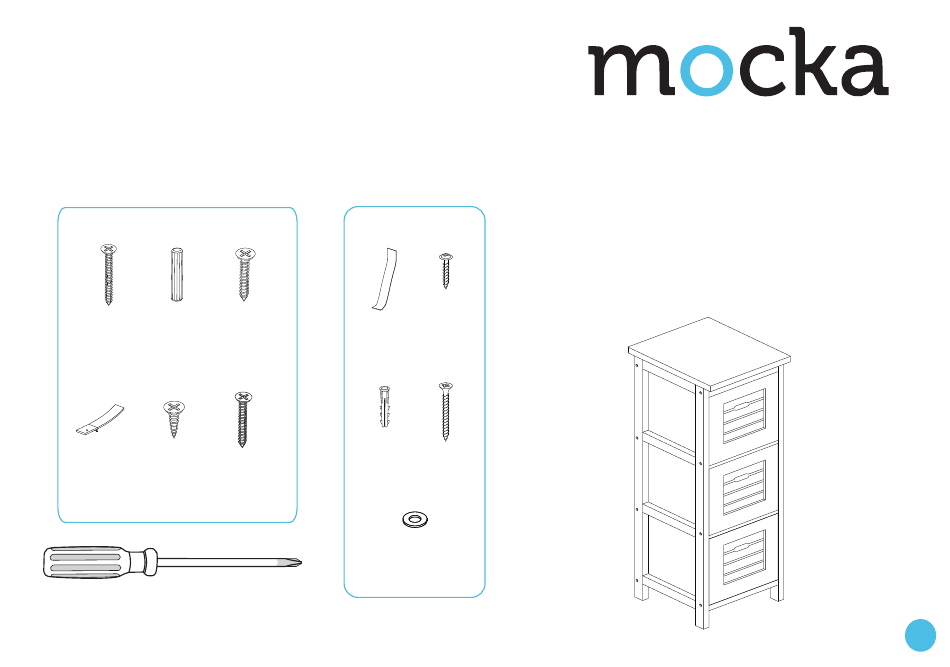

Hardware Supplied
Phillips screwdriver required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au
C
V
screw
Safety
x24
Strap
x1
F
X
wall
screw
anchor
x4
x1
washer
Wall Strap
WARNING:
Any furniture that is not anchored to a wall has the potential to tip
over in certain circumstances, i.e. if a child attempts to climb up on the furniture
W
or in the event of an earthquake. Accordingly, we recommend that all furniture
is anchored to a wall. We supply a free safety wall anchor with all furniture sold
and we recommend these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please note that different wall
materials may require different fixing devices from those supplied.
Wall
Screw
x1
Y
r/washer
screw
x1
Z
x2
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Maya Three Drawer
Summary of Contents for Mocka Maya Three Drawer
- Page 1 Maya Three Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Maya Three Drawer Assembly Instructions Attach panels 2x [4], 3x [5] and 3x [10] to panel [2] with 8x dowels (B) Attach panels 2x[4], 3x [5] and 3x [10] to panel [3] with 8x dowels (B) and 8x screws (A). Ensure the holes on panel [10] are facing upwards and 8x screws (A).
- Page 3 Maya Three Drawer Assembly Instructions Secure the top panel [1] to the main unit using 4x screws (F). Attach 3x stoppers (D) to panel [10] and secure with 3x screws (E). mocka.co.nz | mocka.com.au...
- Page 4 Maya Three Drawer Assembly Instructions strap Drawers x3 Use 1x screw (W) and 1x washer (Z) to attach the safety strap (V) to Attach side panels [7] to panel [6] and secure with 4x screws (C). Slide the panel [4].
- Page 5 Maya Three Drawer Jolt Wardrobe Assembly Instructions ASSEMBLY INSTRUCTIONS Strap Washer wall anchor wall screw Insert the three completed drawers into the main unit. Lift the unit into Attach the end of the safety strap (V) to the wall and secure with 1x wall position, do not drag.
