THORMA LANDSCAPE Installation And Operation Manual

GB
1. Installation manual
1.1 General

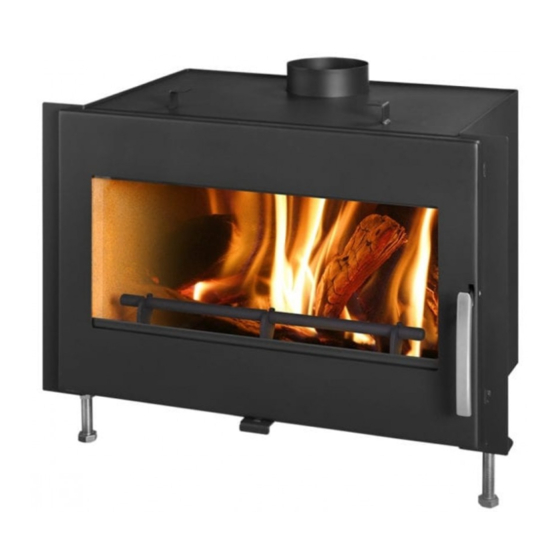

Fireplace insert for wood (further only "fireplace") is a single-shaft heating device which replaces the existing heating for short
periods between seasons or supports it in the cold seasons. Fireplace is designed for local heating. Fireplace can be installed
in a normal environment specified in STN 33 0300.
This fireplace has been tested according the standard EN 13229 with fuels: wood and brown-coal briquettes. This fireplace
met the requirements of this standard.
All local regulations, including regulations relating to national and European standards have to be followed when installing the
fireplace. Before mounting the fireplace, you have to inform the competent master chimney sweep who will inspect as expert
the proper connection of fireplace to the chimney.
Fireplace must be installed on floorings that have corresponding loading capacity. By installation, it is necessary to ensure
sufficient space for cleaning of fireplace, flue and chimney.
The fireplace must be closed during operation, but also when not in operation, because otherwise it might significantly affect
other devices connected to the chimney.
Combustion chamber is enclosed by sheet metal plate filled from inside with vermiculitte. In the bottom part of the combustion
chamber, there is the bed with cast-iron grate (2 pcs). There is an ash box under the grate. Stokers door are sealed with
gasket. The door may be opened only to add fuel. The stokers door are paned with highly heat-resistant glass-ceramic.
The smallest size of the front opening in the lining of fireplace is: width 750 mm and height 675 mm. Surface temperatures of
the lining can reach, depending on thermal resistance coefficient of the used construction material and its thickness, within the
range between 30 and 80°C.
NOTE: when claiming or ordering spare parts always quote the name, type and serial number given on the data card.
1.2 Specifications
Nominal thermal power [kW]
Heat flow into the space [kW]
Efficiency at the nominal power [%]
Operating blast draught [Pa]
Main dimensions [mm]:
width
depth (without handle)
height
Exhaust throat diameter [mm]
Height up to the bottom edge of exhaust
throat [mm]
Ash box volume [dm
Weight app [kg]
Recommended fuel:
- dry hard wood (beech, oak) - fuel efficiency app 15 MJkg
brown-coal briquettes - 1. class fuel Group C, fuel efficiency 18 ÷ 21MJkg
-
Approximate consumption of
recommended fuel at nominal power
-1
[kghod ]:
- Wood
- brown-coal briquettes
Heating capacity [m
- Favorable type of construction
- Less favorable type of construction
- Unfavorable type of construction
Standards: EN 13229
Installation and operation manual solid fuel fireplace insert
LANDSCAPE, LIVORNO, LEVANTO, MONZA
tested according to the standard EN 13229
LANDSCAPE
3
]
3
]:
wood =11,5, brow-coal briquettes = 8,5 kW
wood =11,5, brown-coal briquettes = 8,5 kW
wood = 76,4%, brown-coal briquettes = 55,8
LIVORNO
818 821
502 547
673 673
outlet socket is only at the top
97 105
-1
LANDSCAPE, LIVORNO
12 Pa
LEVANTO
821
502
673
150
4,18
97
-1
3,75
2,37
> 220
180
120
MONZA
1000
502
673
126
