Babyletto Scoot 5823 Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. Babyletto Manuals
  4. Baby & Toddler Furniture
  5. Scoot 5823
  6. Assembly instructions manual

Babyletto Scoot 5823 Assembly Instructions Manual

3-drawer changer dresser
Hide thumbs

Advertisement

Quick Links

Download this manual
Item# 5823
Scoot 3-Drawer Changer Dresser
WARNING!
!
READ ALL INSTRUCTIONS BEFORE USE OF THE CHANGING TABLE, ADD-ON
CHANGING UNIT, OR CHANGING PAD.
revised 10FEB2020
Assembly Instructions
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Scoot 5823 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Babyletto Scoot 5823

Summary of Contents for Babyletto Scoot 5823

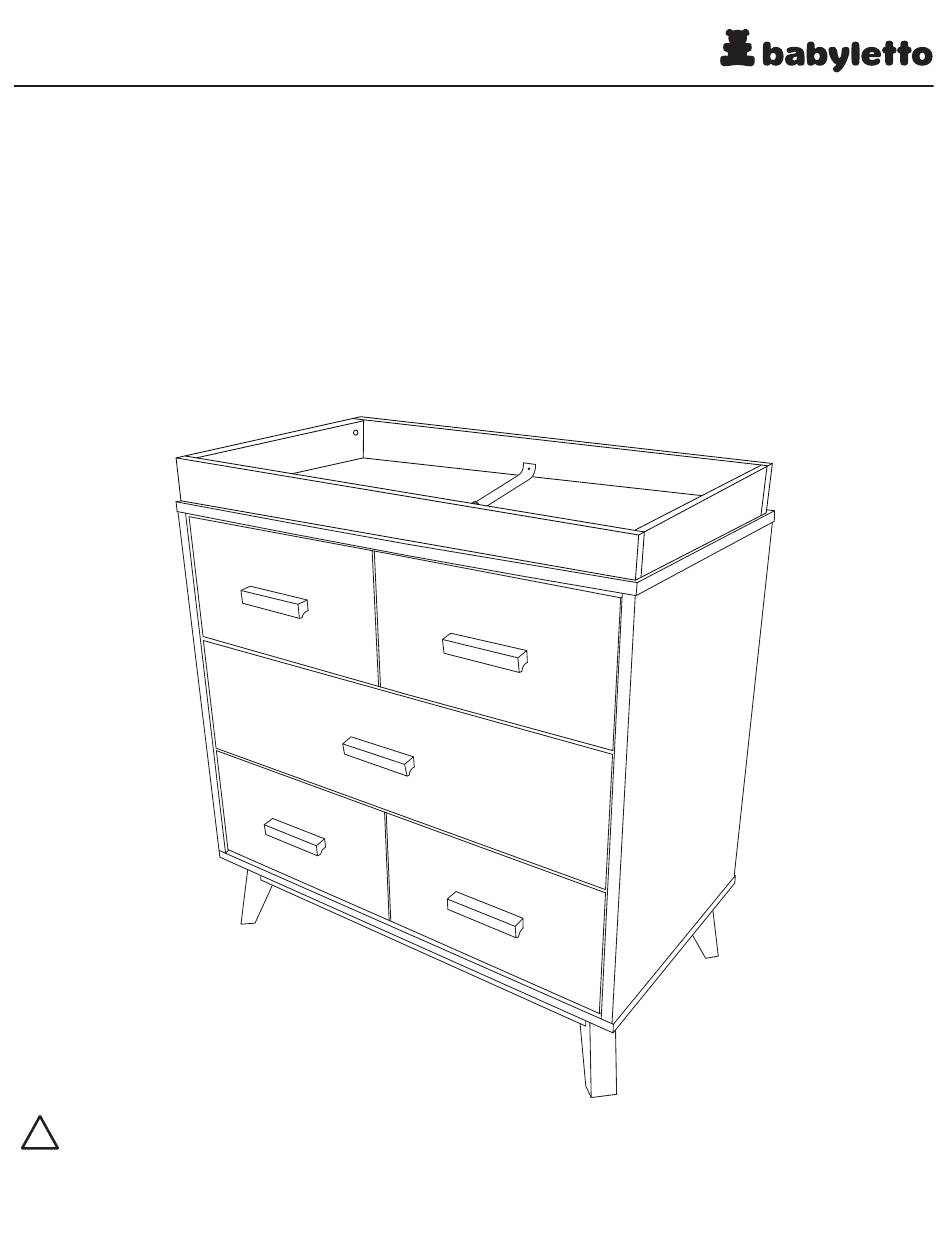

  • Page 1 Item# 5823 Scoot 3-Drawer Changer Dresser Assembly Instructions WARNING! READ ALL INSTRUCTIONS BEFORE USE OF THE CHANGING TABLE, ADD-ON CHANGING UNIT, OR CHANGING PAD. revised 10FEB2020...
  • Page 2 For Australia : Thank you for purchasing this nursery product! To ensure safe use of your product, please follow these assembly instructions closely. If you are missing parts or have any questions, please visit our website at www.designkids.com.au. For assembly, use the Allen wrench if it is included in the hardware box. We also recommend using a Phillips head screwdriver (not included) to complete assembly.
  • Page 3 PARTS Not to Scale E-1. Base A-2. Left Side Panel B-2. Right Side Panel F. Dresser Foot (4) G. Side Bottom Bar (2) H. Front / Back Bottom Bar (2) C-1. Top K-2. Drawer front II D-2. Back panel (2) L-2.
  • Page 4 N-2. Right drawer side (3) U-1. Finished Drawer Front I (2) O. Drawer bottom (3) V-1. Finished Drawer Front II HARDWARE Bolts in Actual Size H1. 2.9 cm Phillips H2. 1.4 cm Phillips H3. Cam bolt (12) H4. Cam lock (12) head bolt (12) head screw (12) H5.
  • Page 5 ASSEMBLY INSTRUCTIONS H / G...
  • Page 8 * Rotate H4 clockwise to secure. A-2 / B-2 * Rotate H4 clockwise to secure.
  • Page 9 * Rotate H4 clockwise to secure.
  • Page 10 DRAWER ASSEMBLY INSTRUCTIONS J-2 / K-2 J-2 / K-2 U-1 / V-1 U-1/ V-1...
  • Page 11 * Make sure that the drawer is placed on the tabs on the glide rails.
  • Page 12 1.4 cm Phillips * Screw the head screw (H2) in the pre-drilled holes on the drawer side panels. * Make sure that the glide touch the drawer front panel. DO NOT OVERTIGHTEN THE SCREWS.
  • Page 13 TRAY ASSEMBLY INSTRUCTIONS CHANGER PARTS Not to Scale T-1. Front / Back Panel (2) T-4. Bottom panel T-2. Side Panel (2) T-3. Cross support HARDWARE Bolts in Actual Size TH-3. Wood Dowel (4) TH-4. 5/8” Flat Head Screw (4) TH-1. Cam bolt (4) TH-2.
  • Page 14 TH-3 TH-1 TH-1 TH-2 TH-3 TH-2 TH-2 TH-2 * Rotate TH-2 clockwise to secure.
  • Page 15 TH-2 TH-1 TH-3 TH-2 TH-2 * Make sure that the end of cross support (T-3) fits the notch centered in the front rail (T-1). * Rotate TH-2 clockwise to secure.
  • Page 16 TH-6 TH-7 TH-6 TH-7 TH-4 (back) TH-5 (arrière) CHANGER PAD IS NOT INCLUDED, SOLD SEPARATELY. THIS PRODUCT IS DESIGNED TO BE USED WITH A 80 CM X 40 CM CHANGING PAD. The recommended maximum weight of the occupant is 13.6 kgs on changing table.
  • Page 17 FURNITURE ANTI-TIPPING KIT INSTALLATION Serious or fatal crushing can occur when furniture tips over on children. To help prevent tip-over, follow the steps below to install this anti-tipping strap. HARDWARE WARNING Children have died from furniture tipover. To reduce the risk of furniture tipover: ALWAYS install tipover restraint provided.
  • Page 18 Install the strap on the wall with long screw and washer. Install the other end of strap on the back of dresser with short screw and washer into the wood framing of the dresser. Finish KEEP THIS MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE.

  • Page 19: Fall Hazard

    WARNING: FALL HAZARD: Children have suffered serious injuries after falling from changing tables. Falls can happen quickly. STAY in arm’s reach of your child. ALWAYS secure this unit to the support surface by the provided hardware. See instructions. This tray is intended to be used only with MDB Family products. All other uses are at the risk of the user.

  • Page 20: Australia - Warranty

    AUSTRALIA - WARRANTY Ubabub International Pty Ltd warrants that your Scoot 3-Drawer Changer Dresser will be free from defects the whole product for a period of one year, from the date of purchase. This warranty only applies where the product is completely and correctly assembled and used in accordance with all accompanying recommendations and users instructions.
  • Page 21 NEW ZEALAND - WARRANTY Designer Baby Brands warrants that your Scoot 3-Drawer Changer Dresser will be free from defects for a period of one year from the date of purchase, in accordance with the New Zealand consumer guarantees act. This warranty only applies where the product is completely and correctly assembled and used in accordance with all accompanying recommendations and users instructions..
