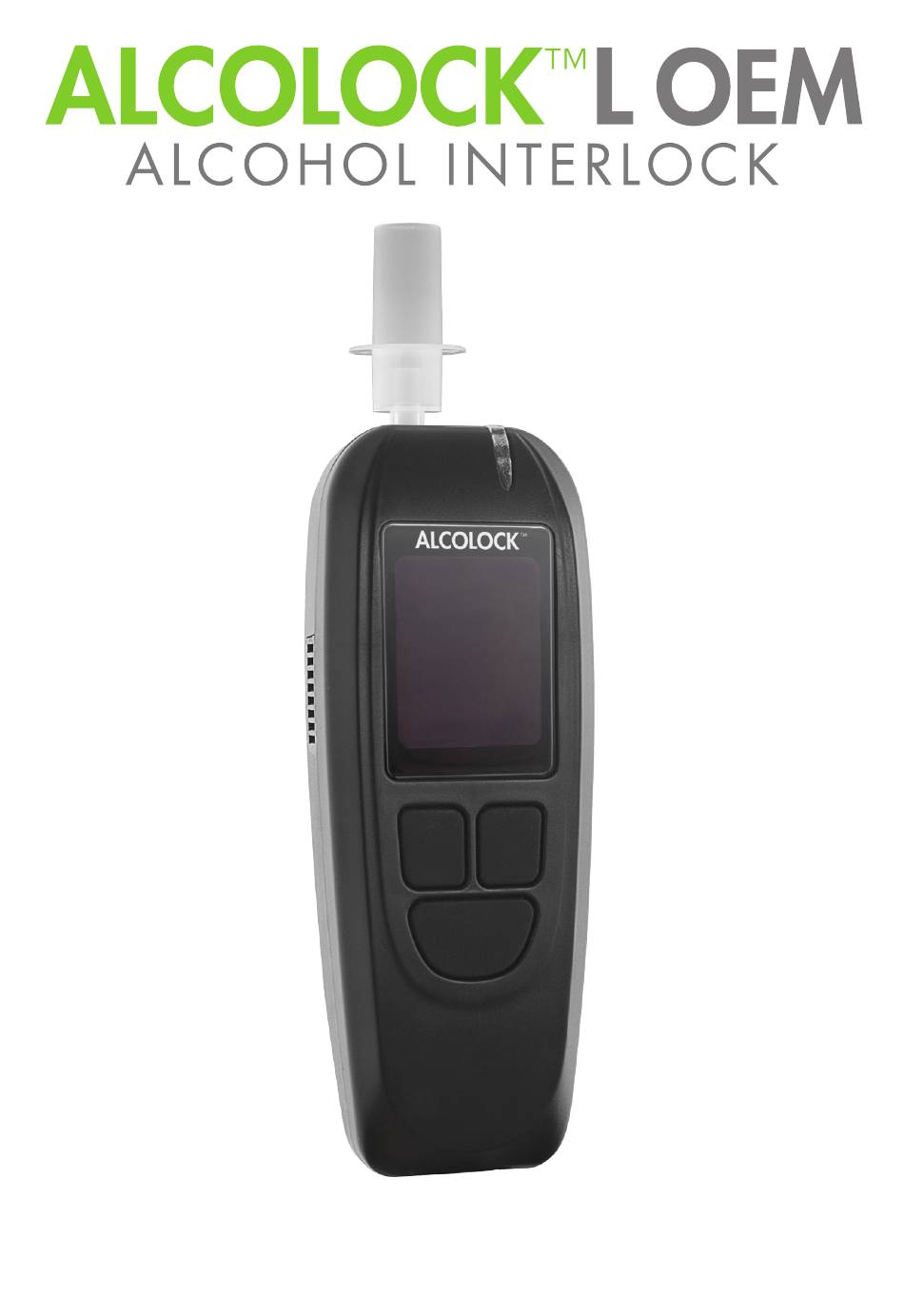

- Page 1 Calibration manual Alcohol gas standard...
- Page 2 F +1 416 619 3501 info@acs-corp.com acs-corp.com ACS, ALCOHOL COUNTERMEASURE SYSTEMS, ALCOLOCK and “The Molly” are trademarks of Alcohol Countermeasure Systems (International) Inc. and are used under license. Alcohol Countermeasure Systems is the trading style of Alcohol Countermeasure Systems Corp.
- Page 3 ACS #95-000436 • Regulator valve assembly, ACS #79-005546 • V3 download station, ACS #79-006111 • V3/L OEM download station adapter, ACS #79-009115 CYLINDER SETUP Remove the protective cap and screw the regulator valve to the canister. Continue to the next section.
- Page 4 Connect the download station to a power source. Disconnect the handset from the ECU. Connect the download station to the handset with a coiled cable and V3/L OEM adapter. The handset automatically powers on. Press the left button on the handset to select Cal.
- Page 5 NOTE: Press and hold the left button anytime to cancel time set and to return to the Date / Time screen. d. With the time adjusted, keep pressing Next until Set is displayed, and press Set. e. Press OK. The SELECT TYPE menu is displayed. Choose Dry Gas and press OK.
- Page 6 CALIBRATION IS COMPLETE The L OEM handset returns to ready state and Blow for 5 seconds is displayed. NOTE: If the calibration fails on numerous attempts, the sensor may need replacement. Contact an authorized service provider for return instructions.
- Page 7 TROUBLESHOOTING In the event of a calibration failure, first check the common causes of errors: • Plastic tubing has been overused or has condensation present • The alcohol gas standard value chosen does not match the gas being used, or the value has been incorrectly entered in the Select Value menu • The alcohol gas standard is expired • All connections to and from the gas valve are not secured properly • The value entered in Altitude menu is incorrect ALTITUDE REFERENCE TABLE...
- Page 8 CAM-ENG-60-000567-A © 2013...
