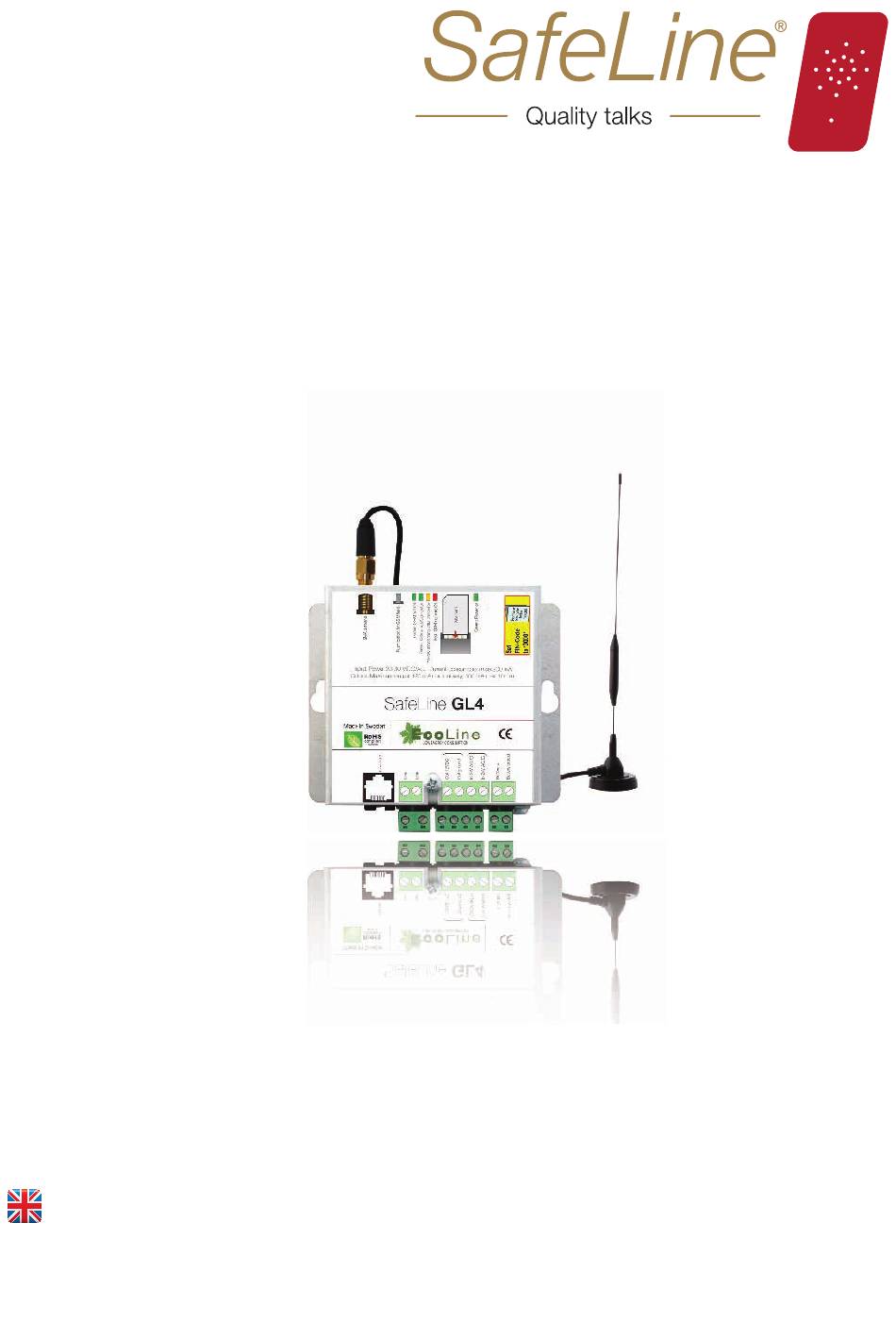

- Page 1 SafeLine Installation manual A GSM alternative for all of our lift telephones with built-in power supply and battery backup. GL4 v1.13 EN 06.2015...
- Page 2 SafeLine Installation manual TECHNICAL DATA Communication: GSM-module Siemens MC55i dual-band 900/1800 MHz Antenna connector type: Power 24 - 30 VDC/AC. current consumption max 200 mA Input: Output: 12 VDC maximum output 120 mA continuously, 500 mA max 10 min Dimensions (HxWxD):...
- Page 3 Installation Introduction Using the SIM card Components and wiring Menu LED indication Increase RX audio level Service Troubleshooting Interference / poor sound quality. GL4 v1.13 EN © 2012 SafeLine and all the SafeLine products and accessories are copyrighted by law.

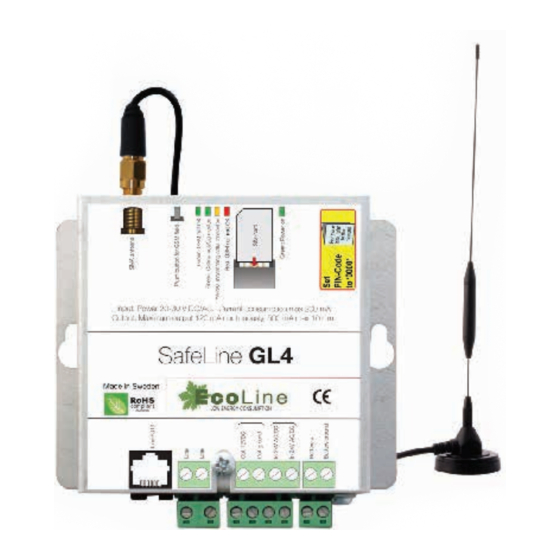

- Page 4 Installation INTRODUCTION The GL4 is a line emulator that simulates a standard telephone line, it can be used together with all SafeLine telephones or any other PSTN (Public Switched Telephone Network) telephone. Easy to install and no programming needed, makes it suitable for both temporary and permanent installation.
- Page 5 Before you can start using a new SIM card, the card has to be prepared. The SafeLine GL4 can only recognize the PIN code if the code is set to “0000”, “1234”, “1111” or if it is deactivated. If the PIN code is set to “0000” or if it is deactivated the SIM card can be moved from the SafeLine GL4 to any of SafeLine GSM products.
- Page 6 +75% or +100% may only be used in uniqe installations where it’s difficult to get the telephone to switch from the receiving part. GL4 v1.13 EN © 2012 SafeLine and all the SafeLine products and accessories are copyrighted by law.
- Page 7 INTERFERENCE / POOR SOUND QUALITY • Bear in mind that the wiring between GL4 and the lift telephone/ phone is basically a “standard” PSTN-line and can therefore not be placed in the lifts travelling cable together with high voltage. *** (Risk of interference)*** •...
- Page 8 3001 Heverlee SWEDEN BELGIUM Tel: +46 (0)8 447 79 32 Tel: +32 (0)16 39 48 66 E-mail: order@safeline.eu E-mail: order@safeline.eu SafeLine-Deutschland SafeLine Elevator Parts UK Westfalenstraße 22a 3 Evegate Park Barn D-51688 Wipperfürth Smeeth DEUTSCHLAND Ashford Kent Tel: +49 (0)2267 8 67 96 63 TN25 6SX E-mail: order@safeline.eu...
