Summary of Contents for Safeline VA4-SD

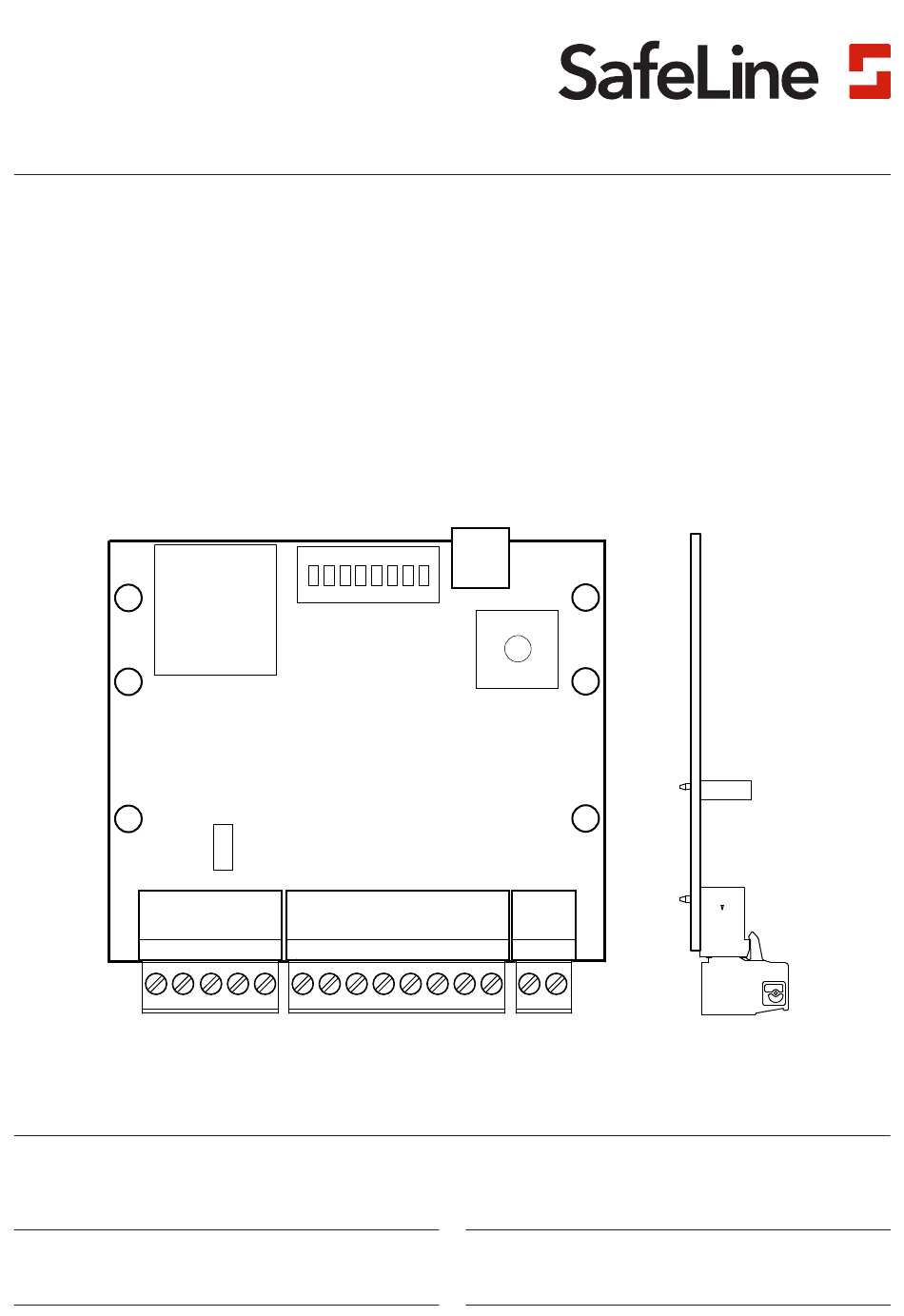

- Page 1 VA4-SD Manual Voice announcer Reliability – brought to you from Tyresö Sweden www.safeline-group.com © 2019 SafeLine and all the SafeLine products and 02.2019 VA4-SD v.2.01 EN accessories are copyrighted by law.
-
Page 2: Table Of Contents
Content Introduction Technical Data General information Overview Overview LED indicators Configuration DIP switch settings Binary inputs and gray code Special Binary 127 Music Setting audio volume Folder structure, microSD card Certificate Declaration of conformity Introduction VA4-SD v.2.01 EN... -
Page 3: Technical Data
Current consumption: max. 100 mA at 24 VDC Inputs: 0-28 VDC Low: < 5 V - High: > 16 V Loudspeaker: 4-8 Ohm/3 W Memory card: microSD/microSDHC, max 32 GB Max floors: 127 floors (binary/gray code) Introduction VA4-SD v.2.01 EN... -
Page 4: General Information
- This quality product is dedicated for the lift industry. It has been designed and manufactured to be used for its specifi ed purpose only. If it is to be used for any other purpose, SafeLine must be contacted in advance. -
Page 5: Overview
This unit can not be configured DIP switches. through SafeLine Pro. USB PC connection. LED, USB PC connection indicator. Volume control. Connector for speaker. Connector for inputs. Connections from controller. Power supply. 10. Green LED, power indicator. Overview VA4-SD v.2.01 EN... -
Page 6: Led Indicators
SD LED - Yellow Continuous Yellow - MicroSD detected and working. Power LED - Green Continuous Green - Mains power supply OK. Flashing Green - Setup Error. Flickering Green - Start-up. Green Off - No power or not working. Overview VA4-SD v.2.01 EN... -
Page 7: Dip Switch Settings
DIP switch After the initial boot up, VA4-SD reads the DIP-switch to set up the main mode of the unit. All internal settings and parameters are stored settings into the internal flash memory. Input 6, 7, and 8 may be used... -
Page 8: Binary Inputs And Gray Code
• DIP switch 7 and 8, music mode 11 Input 8 mutes the music (turns music off). • DIP switch 5, input trigger 1 Input 8 is used as input trigger. Note: Input trigger has the highest priority. Configuration VA4-SD v.2.01 EN... -
Page 9: Music
• Stage 1 is lowest volume, stage 9 is highest volume. Stage 0 is used for special purpose (future feature). • If input 6 is used for “night music” or reduced music level, the level will be approximately half of the level set by the audio level switch (BCD switch). Configuration VA4-SD v.2.01 EN... -
Page 10: Folder Structure, Microsd Card
All messages and music must be in wav format. Every MB on the SD-card gives you 60 seconds of audio in the resolution 16 kHz, 16 bit mono or 120 seconds of audio in the resolution 8 kHz, 16 bit mono. Configuration VA4-SD v.2.01 EN... -
Page 11: Declaration Of Conformity
EMC: Emission, Electromagnetic compatibility EN 12016:2013 EMC/Lifts: Immunity, Electromagnetic compatibility EN 50581:2012 RoHS: Technical doc. for assessment of restriction of RoHS. Tyresö, 2017-04-07 Lars Gustafsson, Technical Manager, R&D , SafeLine Group Antennvägen 10, 13548 Tyresö, Sweden +46 (0)8-447 79 32, www.safeline-group.com... - Page 12 Support: +32 (0)4 85 89 08 95 SafeLine Deutschland GmbH Kurzgewannstraße 3 · D-68526 Ladenburg · Germany Tel.: +49 (0) 6203 - 840 60 03 · sld@safeline.eu SafeLine Group UK Unit 47 · Acorn Industrial Park · Crayford · Kent · DA1 4AL · United Kingdom info@safeline-group.uk...
