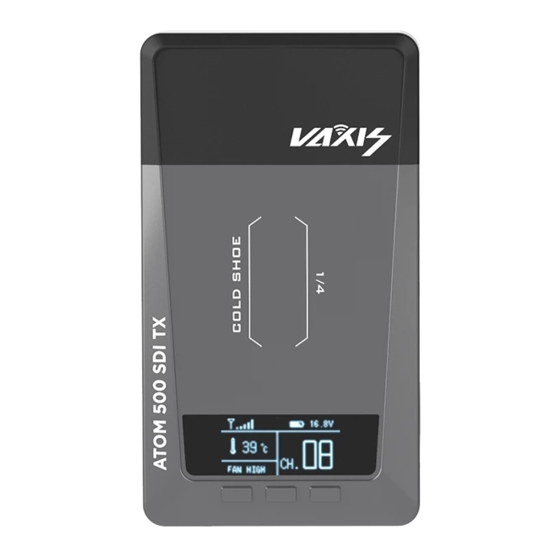

VAXIS ATOM 500 Instructions Manual

Wireless video system
Hide thumbs Also See for ATOM 500:

Advertisement

Quick Links

Download this manual
Dear users:
Thank you very much for choosing ATOM 500
wireless video transmission equipment. This product
adopts h.265 image coding and decoding technology
and 5g wireless transmission technology. Realize low
delay and high quality video transmission. We
sincerely hope that you can enjoy the long-term
convenience of using the product and wish you the
best experience from the product.
All the information contained in this manual
has been strictly verified to be correct at the time of
publication.
upgrading and improvement of the product, we hope
that your equipment and use may be different from
the description in this manual. For this, we hope you
will take the actual product as the standard, and
welcome you to call our service phone for
VAXIS.ATOM 500 SDI
Wireless Video System
Instructions
However,
due
to
the
1
continuous

Advertisement

loading
Need help?

Need help?

Do you have a question about the ATOM 500 and is the answer not in the manual?

Questions and answers

Related Manuals for VAXIS ATOM 500

Summary of Contents for VAXIS ATOM 500

  • Page 1 VAXIS.ATOM 500 SDI Wireless Video System Instructions Dear users: Thank you very much for choosing ATOM 500 wireless video transmission equipment. This product adopts h.265 image coding and decoding technology and 5g wireless transmission technology. Realize low delay and high quality video transmission. We...
  • Page 2 consultation. ■Main features:  Stable transmission distance 100m  Highest resolution 1080p 60, 60-100ms delay  Built in antenna , easy to install and use  Support mobile APP monitoring and password protection  Support HDMI loop out  up to 9 free frequency switching options ...

  • Page 3: Packing List

    Packing list Transmitter *1 Receiver *1 user's manual*1 Expanding accessories *1 Cold boot platform*1 Type-C power cord*1 Hexagon wrench*1 Introduction  Thank you for choosing our long-range wireless HDMI products. Before you install the product, please read the user manual carefully and follow the manual of the user manual to avoid product damaged or other safety accidents.
  • Page 4 ■Name of the product parts Transmitter: ① Power switch ② Screen display ③ HDMI Output ④ HDMI Input ⑤ Type-C DC Input ⑥ Direction button1 ⑦ Direction button2 ⑧ Menu button ⑨ Installation of extension accessories...
  • Page 5 Receiver: ① Power switch ② Screen display ③ HDMI Output ④ HDMI Output ⑤ Type-C DC Input ⑥ Direction button1 ⑦ Direction button2 ⑧ Menu button ⑨ Installation of extension accessories...
  • Page 6 ■Parameters: Transmitter Receiver Interface HDMI/ input(Type A Female), HDMI Output 1(Type A Female), /SDI input, Type-C interface SDI Output, Type-C interface Supply Voltage 5V DC 5V DC Range Power consumption <6.5W <4.5W Size (LxWxH):105x64x28mm (LxWxH):105x64x28mm Mass 134g 130g Input Video Format HDMI/SDI 720p59.94/60, 1080i 50/59.94/60,...
  • Page 7 Operation guide 1. Frequency switching Press the transmitter "direction key" to switch the frequency point, press the menu key to confirm the frequency point, and the receiver will automatically switch the connected frequency point synchronously. No frequency point switching function of receiver.
  • Page 8 < on > L, which is on by default. Click to switch to < off > to close the app connection 5. App installation and use ① App name is "vaxis vision" ，Download in app storeg ② Usage method a． Open app "vaxis vision" to select the connection device b．...

  • Page 9: Common Troubleshooting

    Common troubleshooting 1. Connection exception a. Please check whether TX / RX power supply is normal b. When RX is always displayed as link, please restart TXRX / switch to a clean frequency point 2. Display abnormal problems a. Please check whether the video source is connected to HDMI in correctly b.
  • Page 10   FCC Statement    This  device  complies  with  Part  15  of  the  FCC  Rules.  Operation  is  subject  to  the  following  two  conditions:  (1)  this  device  may  not  cause  harmful  interference  and  (2)  this  device  must  accept  any interference received, including interference that may cause undesired operation.   Any  Changes  or  modifications  not  expressly  approved  by  the  party  responsible  for  compliance  could void the user's authority to operate the equipment. ...

This manual is also suitable for:

Atom 500 sdi
