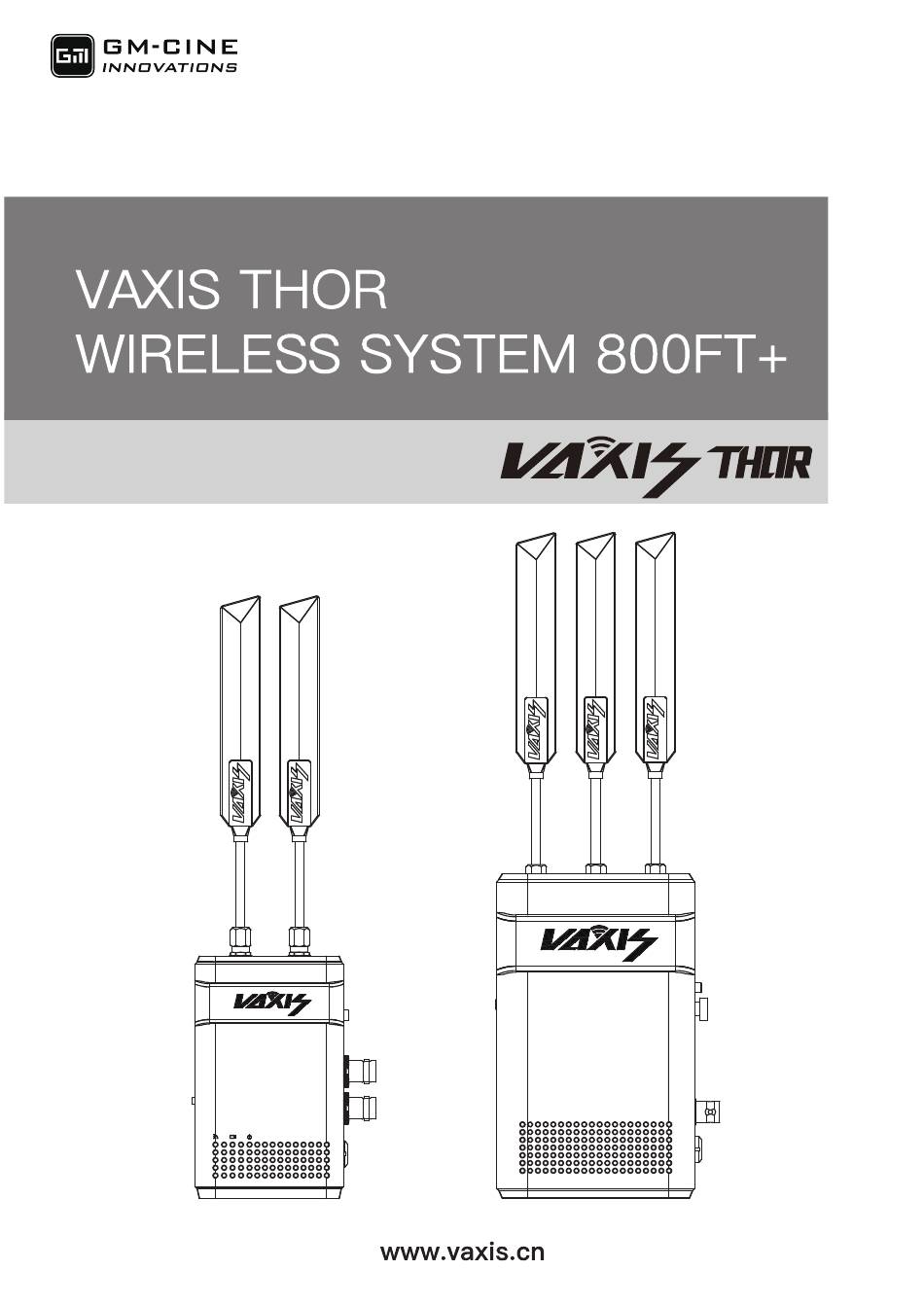

Summary of Contents for VAXIS Thor 800FT+
-
Page 2: Table Of Contents
Vaxis Thor 800FT+ Wireless Transmission System User manual 1. Cautions ............................ 2. About ............................3. Setting UP ..........................4. Placement Guidelines and Best Practices ............5. Operation instruction ...................... 6. Maintenance..................17... -
Page 3: Cautions
1. Cautions ■Logo and meaning Careful, warning, dangerous, Pay attend to following items. ■Cautions Do not use this product in the extreme hot, cold, dusty or humid environments. Prevent friction with hard objects. Avoid the product falling down from a high place, or it may damage the hardware. -
Page 4: About
2. About ■Product model and standard The VAXIS THOR 800FT+ Wireless HDMI/SDI Transmission Suite utilize today’s most advanced wireless video transmission technology, which can realize the broadcast-class and uncompressed 3G SDI/HDMI HD video signal transmitted with no compression and zero delay. The... - Page 5 ■Main features: Wirelessly transmit visually lossless 1080p60 Video/Audio up to 200 meters. TX: SDI In & SDI In. RX: SDI Out x1, HDMI Out x1. Built In HDMI/SDI Converter. Has 2 sword antennas in transmitter side, and 3sword antennas in receiver side.
- Page 6 Technical Specifications The following table presents the technical specifications for the Vaxis Thor 800FT+. Specification Parameter/Value Maximum Outdoor LOS 200 - 250 meters range Transmission Delay Zero [Less than 1 msec.] Radio Frequency 20MHz or 40 MHz Channel Selection Automatic frequency selection [AFS]...
-
Page 7: Setting Up
3. Setting UP Setting Up the Thor 800FT+ Transmitter ■ This section describes how to set up the Thor 800FT+ Transmitter. We highly recommend that the accessories and cables you use are of the highest quality. IMPORTANT IMPORTANT! For optimal system performance, carefully read and then implement the guidelines listed in Placement Recommendations for Camera and Monitor Units. - Page 8 Note: This may take up to 70 seconds when working outdoors in Japan. No broadcasting is occurring. Setting Up the Receiver of Vaxis Thor 800FT+ ■ This section describes how to set up the Thor 800FT+ receiver. You may set up the receiver using SDI, HDMI, or both.
- Page 10 Enable display of the received video via SDI by connecting a standard SDI cable from the Receiver's SDI port to the monitor's SDI port. Enable display of the received video via HDMI by connecting a standard HDMI cable from the Receiver's HDMI port to the monitor’s HDMI port.
- Page 11 LEDs turning off. When the indicators in both LEDs are blinking quickly, a system error has been detected. In this case, contact VAXIS support. The behaviors of each individual LED are described in the tables below. Receiver – Video LED Solid The video signal from the camera is locked (i.e., the signal is being received from the Transmitter.)
-
Page 12: Placement Guidelines And Best Practices
Maintaining Line of Sight (LOS) ■ In order to obtain maximal range from the Vaxis Thor 800FT+, it is necessary to maintain proper line of sight (LOS) between the Transmitter and the Receiver. Adhere to the following recommendations to achieve best LOS: •... -
Page 13: Operation Instruction
5. Vaxis Thor 800FT+ Operational Instructions Working with On Screen Display (OSD) Functions ■ When OSD functionality is enabled, you can view additional data displayed on the monitor attached to the Receiver, and monitor system parameters from the OSD menus. The following data is overlaid on the video received from the Camera Unit: •... - Page 14 Using the OSD Joystick The OSD joystick is made up of four direction selectors (Up, Down, Left and Right) and a confirmation button in the center. Enable On Screen Display by pressing the confirmation button. The Main Menu screen is displayed on the monitor.
- Page 15 Navigate through the menus using the direction selectors: • Down: Goes to the next menu or the next menu option. • Up: Goes to the previous menu or the previous menu option. • Right: Enters the options list of the currently selected menu. •...
- Page 16 Viewing Unit Parameters The Status menu lists information related to the Transmitter and Receiver you are working with. The following parameters are displayed: • Paired Tx: The name of the Transmitter with which the Receiver is paired. • SN: Serial number of the paired Transmitter . •...
- Page 17 Approached This alert is displayed for 30 seconds, from the moment the Transmitter has been detected as out of range Range Limit until the Out of Range warning is displayed. The message is a warning that the video signal is about to be lost.
- Page 18 NOTE For more information about using the OSD joystick, refer to Working with Functions. The Signal LED starts blinking, and the following message is displayed on the monitor connected to the Receiver: "Please activate registration on Transmitter." Power on the Transmitter with which to pair this Receiver. It is assumed that the Transmitter has already been set up, as described in Setting Up the Thor 800FT+ Transmitter].
-
Page 19: Maintenance
6. Maintenance ■Storage conditions Products storage temperature should be -20°C~60°C. For long time storage requirement, please use original carbon boxes, and avoid from high humid, acid base or dusty place. ■Maintenance Warning To ensure your safety, place choose well-known brand DC batteries, and guarantee suitable work conditions that battery manual mentioned.
