Summary of Contents for ASTEL MARINE CONUS MST18240

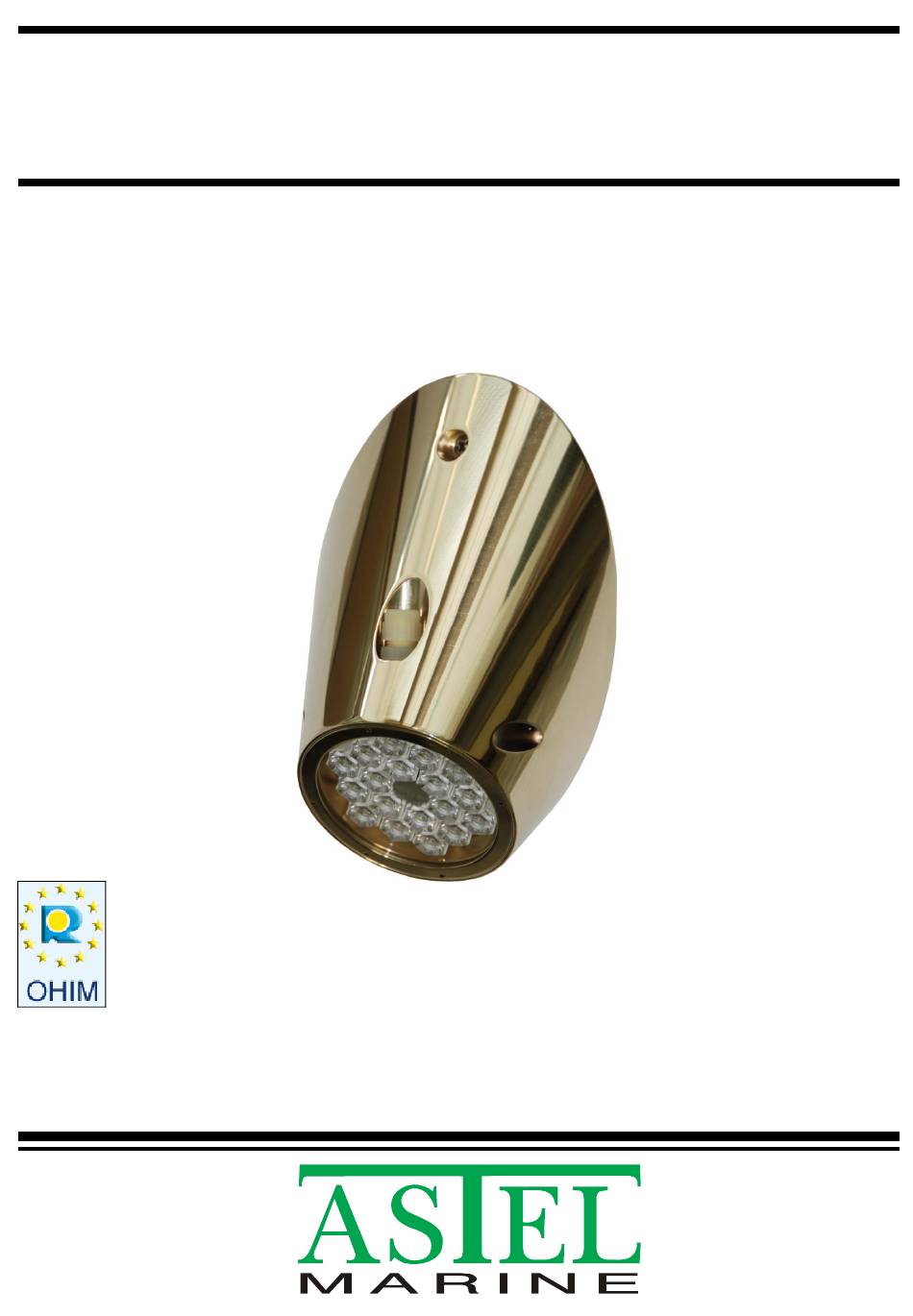

- Page 1 CONUS MST18240 UNDERWATER LIGHT Registered Community Design Operating Instructions...
-
Page 2: Table Of Contents
CONTENTS Preface............................... 3 Features ............................. 3 Precautions ............................3 Controls and Connectors........................4 Underwater Light CONUS MST18240 ..................4 Power Supply Unit MPS06800..................... 5 Installation ............................6 Underwater Light CONUS MST18240 ..................6 Power Supply Unit MPS06800..................... 7 Appearance............................9 Technical Specifications........................ -
Page 3: Preface
PREFACE PRECAUTIONS The underwater light has to be installed and The CONUS series underwater lights are designed to use the latest LED lighting used in accordance with the instructions of technology. this manual only. The power supply has to be disconnected The surface-mount designed casings enable very simple installation on the hull without before installation. -
Page 4: Controls And Connectors
CONTROLS AND CONNECTORS Underwater Light CONUS MST18240 (1) Optical window The 6 mm depth tempered glass optical window. (2) Underwater light casing Aluminium bronze or anodized aluminium casing with fixing holes and cable gland. (3) Cable The 8-pole multi-core cable to connect the power supply unit. -
Page 5: Power Supply Unit Mps06800
Power Supply Unit MPS06800 CONTROL LIGHT DC IN DC OUT (1) CONTROL Terminal-block connector to connect optional remote control unit or switch. (2) LIGHT Terminal-block connector to connect the LED underwater light using 8-pole multi-core cable. (3) DC IN Terminal-block connector to connect 12-24Vdc power supply. (4) DC OUT Terminal-block connector to connect to the DC IN connector of another power supply unit. -
Page 6: Installation
Operating Instructions with Declaration of Conformity and Warranty conditions Underwater Light CONUS MST18240 The CONUS MST18240 has to be installed on a flat surface on the stern of the hull of the vessel. Do not try to install the underwater light while the vessel is in the water. -
Page 7: Power Supply Unit Mps06800
Note: All the stainless steel fixing screws it is highly recommended to be sealed in the contact with underwater light casing by optional TEF-GEL waterproof paste (not included) to prevent galvanic corrosion. To install the underwater light on the steel hull it is highly recommended to use the optional isolation board (not included) between the hull and underwater light casing to prevent galvanic corrosion. - Page 8 M12 should be inserted. Underwater light connection The underwater light has to be connected to the LIGHT terminal-block connector as described in the table below: MPS06800 CONUS MST18240 FUNCTION terminal-block connector wire colour LIGHT Brown...
-
Page 9: Appearance
APPEARANCE TECHNICAL SPECIFICATIONS LED Underwater Light CONUS MST18240 Power requirement 3x800 mA Lens angle 50° Optical window 6 mm depth tempered glass Luminous flux 3.900 lm White color temperature 10.000 K Operating temperature -10C - +50C Casing Aluminium bronze (AB2) or anodized aluminium... -
Page 10: Warranty
WARRANTY 1. The equipment manufactured by ASTEL d.o.o. is warranted to be free from defects in workmanship and materials under normal use and service. 2. This Warranty is in effect for of two years from the date of purchase by the user. Proof of purchase must be included, to establish that it is inside the warranty period. -
Page 11: Declaration Of Conformity
Dutovlje 138 6221 Dutovlje Slovenija declares that the products Item, Product Name and Model Number: 1. Underwater Light CONUS MST18240 with Power Supply Unit MPS06800 conform to the following Product Specifications: EMC: EN 55022 (CISPR 22: 1993) EN 50130-4: 1994... - Page 12 ASTEL d.o.o., Dutovlje 138, 6221 Dutovlje, Slovenia Tel: +386 5 7310771, +386 5 7310772 Fax:+386 5 7310789 info@astel-marine.com E-mail: www.astel-marine.com Web:...
