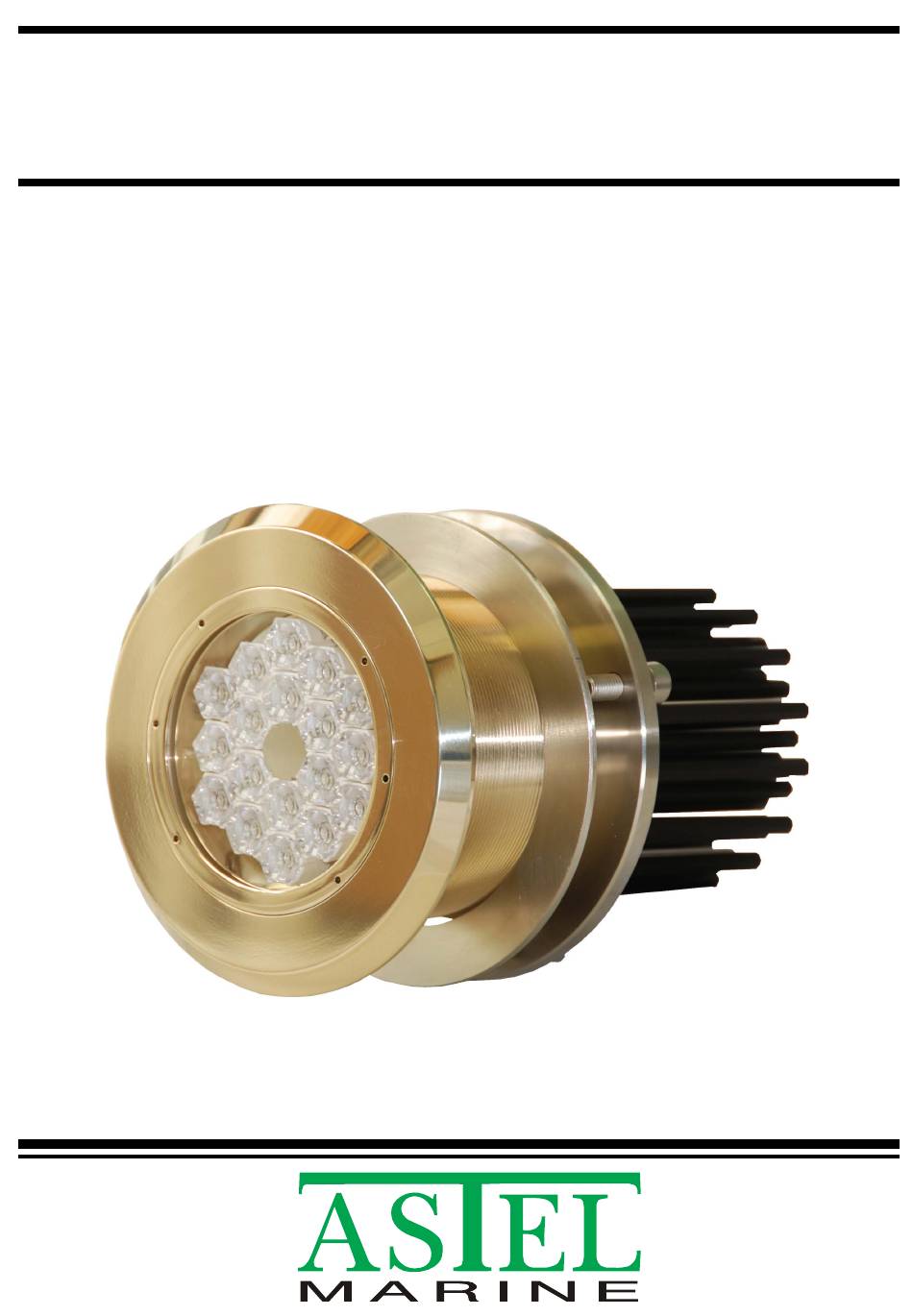

  • Page 1 PLAQUE MFM18240 UNDERWATER LIGHT Operating Instructions...

  • Page 2: Table Of Contents

    CONTENTS Preface............................... 3 Features ............................. 3 Precautions ............................3 Controls and Connectors........................4 Underwater Light PLAQUE MFM18240 ..................4 Power Supply Unit MPS06800..................... 5 Installation ............................6 Underwater Light PLAQUE MFM18240 ..................6 Power Supply Unit MPS06800..................... 7 Appearance............................9 Technical Specifications........................

  • Page 3: Preface

    PREFACE PRECAUTIONS  The underwater light has to be installed and The PLAQUE series underwater lights are designed to use the latest LED lighting used in accordance with the instructions of technology for flush-mount installation where this manual only.  The power supply has to be disconnected the most important are low-profile casings to avoid high water resistance and quality before installation.

  • Page 4: Controls And Connectors

    CONTROLS AND CONNECTORS Underwater Light PLAQUE MFM18240 (1) Optical window The 6 mm depth tempered glass optical window. (2) Underwater light casing Aluminium bronze casing with fixing holes and cable gland. (3) Fixing assembly The fixing nut, washer and screws to fix the underwater light on the hull.

  • Page 5: Power Supply Unit Mps06800

    Power Supply Unit MPS06800 CONTROL LIGHT DC IN DC OUT (1) CONTROL Terminal-block connector to connect optional remote control unit or switch. (2) LIGHT Terminal-block connector to connect the LED underwater light using 8-pole multi-core cable. (3) DC IN Terminal-block connector to connect 12-24Vdc power supply. (4) DC OUT Terminal-block connector to connect to the DC IN connector of another power supply unit.

  • Page 6: Installation

     Operating Instructions with Declaration of Conformity and Warranty conditions Underwater Light PLAQUE MFM18240 The PLAQUE MFM18240 has to be installed on a flat surface of the hull of the vessel. Do not try to install the underwater light while the vessel is in the water.

  • Page 7: Power Supply Unit Mps06800

    Note:  To install the underwater light on the steel hull it is highly recommended to use the optional isolation board (not included) between the hull and underwater light casing to prevent galvanic corrosion. Note:  Do not overtighten the screws as this can result in hull or underwater light damage. Bonding The underwater light has to be connected to the vessels bonding and cathodic protection using a pre- tinned wire a minimum of 8 AWG (8.36 mm...
  • Page 8 M12 should be inserted. Underwater light connection The underwater light has to be connected to the LIGHT terminal-block connector as described in the table below: MPS06800 PLAQUE MFM18240 FUNCTION terminal-block connector wire colour LIGHT Brown...

  • Page 9: Appearance

    APPEARANCE TECHNICAL SPECIFICATIONS LED Underwater Light PLAQUE MFM18240 Power requirement 3x800 mA Lens angle 50° Optical window 6 mm depth tempered glass Luminous flux 3.900 lm White color temperature 10.000 K Operating temperature -10C - +50C Casing Aluminium bronze (AB2)

  • Page 10: Warranty

    WARRANTY 1. The equipment manufactured by ASTEL d.o.o. is warranted to be free from defects in workmanship and materials under normal use and service. 2. This Warranty is in effect for of two years from the date of purchase by the user. Proof of purchase must be included, to establish that it is inside the warranty period.

  • Page 11: Declaration Of Conformity

    Dutovlje 138 6221 Dutovlje Slovenija declares that the products Item, Product Name and Model Number: 1. Underwater Light PLAQUE MFM18240 with Power Supply Unit MPS06800 conform to the following Product Specifications: EMC: EN 55022 (CISPR 22: 1993) EN 50130-4: 1994...
