Summary of Contents for ASTEL MARINE CONVEX MTH0680

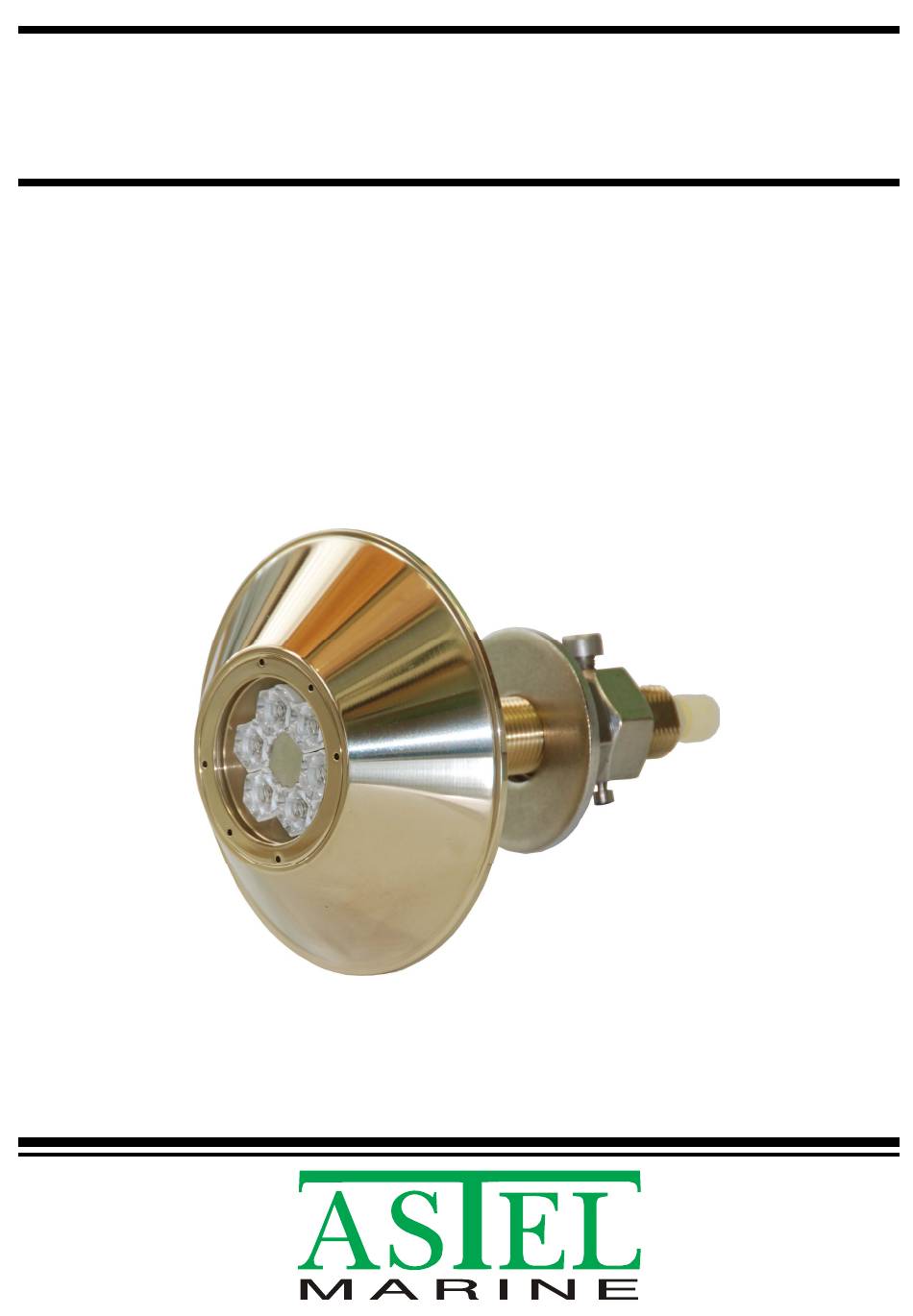

- Page 1 CONVEX MTH0680 UNDERWATER LIGHT Operating Instructions...
-
Page 2: Table Of Contents
CONTENTS Preface............................... 3 Features ............................. 3 Precautions ............................3 Controls and Connectors........................4 Underwater Light CONVEX MTH0680..................4 Power Supply Unit MPS06800..................... 5 Installation ............................6 Underwater Light CONVEX MTH0680..................6 Power Supply Unit MPS06800..................... 7 Appearance............................9 Technical Specifications........................9 Warranty............................ -
Page 3: Preface
PREFACE PRECAUTIONS The underwater light has to be installed and The CONVEX series underwater lights are designed to use the latest LED lighting used in accordance with the instructions of technology. this manual only. The power supply has to be disconnected The thru-hull designed casings enable very simple installation on the hull without making before installation. -
Page 4: Controls And Connectors
CONTROLS AND CONNECTORS Underwater Light CONVEX MTH0680 (1) Optical window The 6 mm depth tempered glass optical window. (2) Underwater light casing Aluminium bronze casing with M24 fixing screw and cable gland. (3) Fixing nuts The M24 stainless-steel nuts with locking and bonding screws and washer. -
Page 5: Power Supply Unit Mps06800
Power Supply Unit MPS02800 CONTROL DC IN LIGHT (1) LIGHT Terminal-block connector to connect the LED underwater light using 4-pole multi-core cable. (2) CONTROL Terminal-block connector to connect optional remote control unit or switch. (3) DC IN Terminal-block connector to connect 12-24Vdc power supply. (4) DC OUT Terminal-block connector to connect to the DC IN connector of another power supply unit. -
Page 6: Installation
Operating Instructions with Declaration of Conformity and Warranty conditions Underwater Light CONVEX MTH0680 The CONVEX MTH0680 has to be installed on a flat surface on the stern of the hull of the vessel. Do not try to install the underwater light while the vessel is in the water. -
Page 7: Power Supply Unit Mps06800
Fixing The underwater light has to be inserted through the hole from outside of the hull and has to be fixed with the fixing nut M24. Then the locking nut M24 (with locking screw M8 and bonding screw M4) has to be fitted and locked with locking screw M8. - Page 8 M12 should be inserted. Underwater light connection The underwater light has to be connected to the LIGHT terminal-block connector as described in the table below: MPS02800 CONVEX MTH0680 FUNCTION terminal-block connector wire colour LIGHT Brown...
-
Page 9: Appearance
APPEARANCE TECHNICAL SPECIFICATIONS LED Underwater Light CONVEX MSR0680 Power requirement 800 mA Lens angle 50° Optical window 6 mm depth tempered glass Luminous flux 1.300 lm White color temperature 10.000 K Operating temperature -10C - +50C Casing Aluminium bronze (AB2) Protection IP 68 Dimensions... -
Page 10: Warranty
WARRANTY 1. The equipment manufactured by ASTEL d.o.o. is warranted to be free from defects in workmanship and materials under normal use and service. 2. This Warranty is in effect for of two years from the date of purchase by the user. Proof of purchase must be included, to establish that it is inside the warranty period. -
Page 11: Declaration Of Conformity
Dutovlje 138 6221 Dutovlje Slovenija declares that the products Item, Product Name and Model Number: 1. Underwater Light CONVEX MTH0680 with Power Supply Unit MPS06800 conform to the following Product Specifications: EMC: EN 55022 (CISPR 22: 1993) EN 50130-4: 1994... - Page 12 ASTEL d.o.o., Dutovlje 138, 6221 Dutovlje, Slovenia Tel: +386 5 7310771, +386 5 7310772 Fax:+386 5 7310789 info@astel-marine.com E-mail: www.astel-marine.com Web:...
