INSTALLATION INSTRUCTIONS
2013-19 G3 Full / Front Enclosure / Double Canopy
G3 X(3)22RF
PARTS LIST
1 Bow Canopy Frame (Figure 3)
1 Bow Canopy
1 Bow Canopy Boot
1 Aft Curtain
1 Aft Canopy with Zippers
1 Aft Canopy Boot
2 Aft Side Curtains (1 Port, 1 Starboard)
2 Bow Side Curtains (1 Port, 1 Starboard
1 Bow Curtain
PARTS LIST
Measuring Tape
Center Punch
Drill
5/ 1 6" Drill Bit
Pencil
Phillips Screwdriver
2 Sets SAE allen wrenches
WARNING
Indicates potential hazard that
could result in death or injury.
Dowco Marine, Inc. | 1610 Frisco Drive, Lebanon MO 65536 | dowcomarine.com | (800) 404-5252

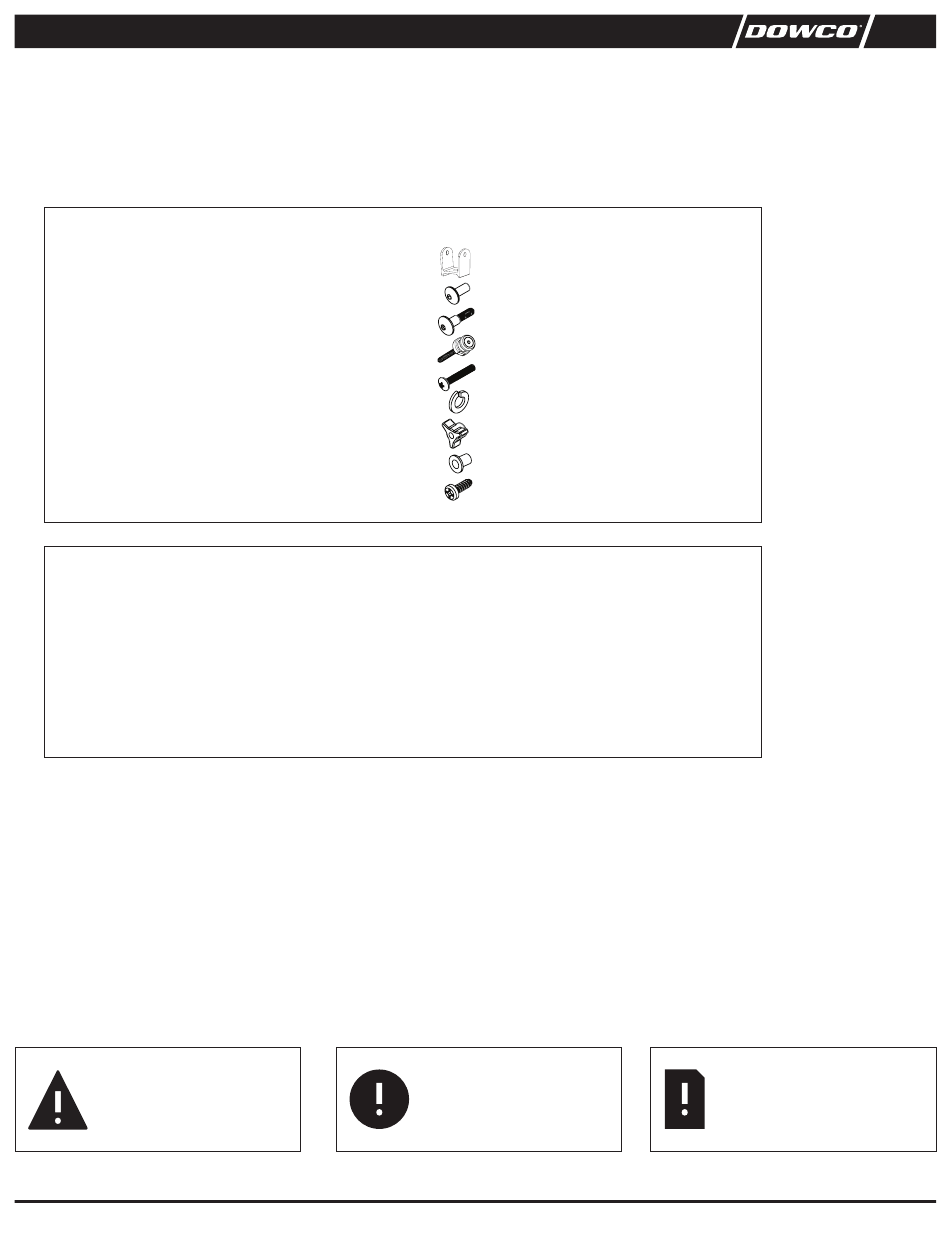

BOW HARDWARE PACKAGE
2 - "H" Brackets (1 1/4")
4 - 1/4"-20 Barrel Nuts
2 - 1/4"-20 Short Shoulder Bolts
2 - Deck Buttons w/ 1/4"-20 x 1.5" Bolt
2 - 5/ 1 6 x 2" Bolts
2 - Lock Washers
2 - 5/ 1 6" Tri Wing Knob
4 - Plastic Shoulder Washers
8 - Self Drill Screws
CAUTION
Indicates potential hazard that
could result in boat damage.
NOTE
Indicates special information to make
maintenance easier or instructions
clearer
140120-00 | 02/19
Advertisement
Related Manuals for Dowco G3 X322RF
Summary of Contents for Dowco G3 X322RF
- Page 1 Indicates potential hazard that Indicates potential hazard that maintenance easier or instructions could result in boat damage. could result in death or injury. clearer 140120-00 | 02/19 Dowco Marine, Inc. | 1610 Frisco Drive, Lebanon MO 65536 | dowcomarine.com | (800) 404-5252...
- Page 2 Replace the brackets. Insert a 1 3/4" bolt from the top through the bracket and the rail. Place a barrel nut on each bolt and tighten (Figure 2). STEP 5 Follow the same procedure for the other side. 140120-00 | 02/19 Dowco Marine, Inc. | 1610 Frisco Drive, Lebanon MO 65536 | dowcomarine.com | (800) 404-5252...
- Page 3 (4) and zip the bow canopy to the aft canopy. Push up the aux bow and zip to pocket - push the secondary bow up and zip to pocket. 140120-00 | 02/19 Dowco Marine, Inc. | 1610 Frisco Drive, Lebanon MO 65536 | dowcomarine.com | (800) 404-5252...
- Page 4 Each curtain has a tag sewn in the upper left-hand corner of the flap. This will identify each curtain and give its location on the pontoon. STEP 2 The curtain flaps will face the inside of the pontoon. STEP 3 Zip all curtains to both canopy tops. 140120-00 | 02/19 Dowco Marine, Inc. | 1610 Frisco Drive, Lebanon MO 65536 | dowcomarine.com | (800) 404-5252...
- Page 5 Find the first snap (C) on the same side. Install the remaining studs. CARE WARNING Do not trailer boat with any canopy top up (in radar arch position) or with the enclosure assembled! 140120-00 | 02/19 Dowco Marine, Inc. | 1610 Frisco Drive, Lebanon MO 65536 | dowcomarine.com | (800) 404-5252...
