INSTALLATION INSTRUCTIONS
2019 G3 Full / Front Enclosure / Double Canopy
V324SE
PARTS LIST
1 Bow Canopy Frame (Figure 3)
1 Bow Canopy
1 Bow Canopy Boot
TOOLS REQUIRED
Measuring Tape
Center Punch
Drill
5/ 1 6" Drill Bit
Pencil
Phillips Screwdriver
2 Sets SAE Allen Wrenches
WARNING
INDICATES POTENTIAL HAZARD
THAT COULD RESULT IN DEATH
OR INJURY
Dowco Marine, Inc. | 1610 Frisco Road, Lebanon MO 65536 | dowcomarine.com | (800) 404-5252

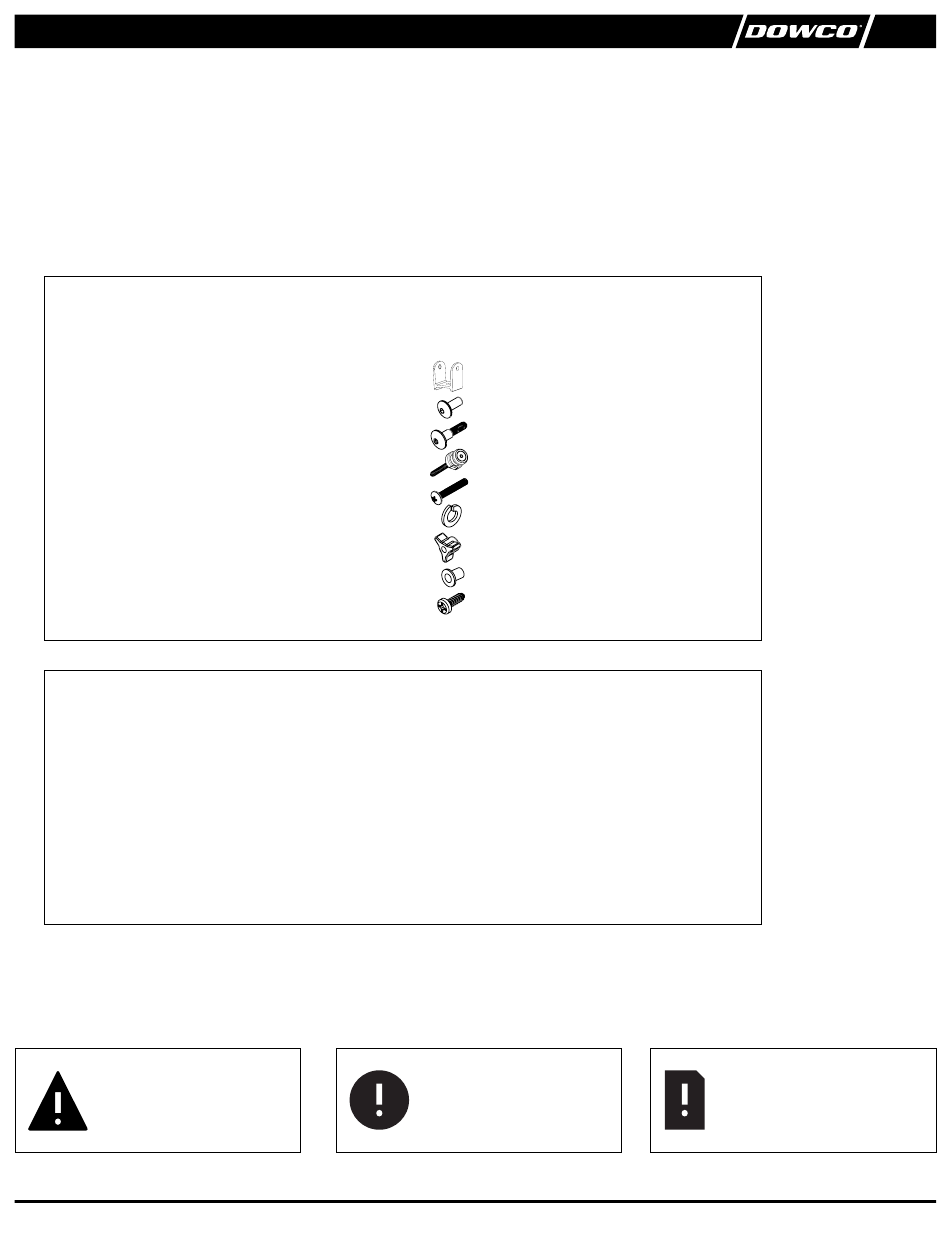

BOW HARDWARE PACKAGE
2 - "H" Brackets (1 1/4")
4 - 1/4"-20 Barrel Nuts
2 - 1/4"-20 Short Shoulder Bolts
2 - Deck Buttons w/ 1/4"-20 x 1.5" Bolt
2 - 5/ 1 6x2" Bolts
2 - Lock Washers
2 - 5/ 1 6" Tri Wing Knob
2 - Plastic Shoulder Washers
8 - Self Drill Scews
CAUTION
INDICATES POTENTIAL
HAZARD THAT COULD
RESULT IN BOAT DAMAGE
NOTE
INDICATES SPECIAL INFORMATION
TO MAKE MAINTENANCE EASIER
OR INSTRUCTIONS CLEARER
140305-00 | 06/18
Advertisement
Table of Contents
Related Manuals for Dowco V324SE
Summary of Contents for Dowco V324SE
- Page 1 INDICATES POTENTIAL HAZARD TO MAKE MAINTENANCE EASIER HAZARD THAT COULD THAT COULD RESULT IN DEATH OR INSTRUCTIONS CLEARER RESULT IN BOAT DAMAGE OR INJURY 140305-00 | 06/18 Dowco Marine, Inc. | 1610 Frisco Road, Lebanon MO 65536 | dowcomarine.com | (800) 404-5252...
- Page 2 NOTE: This double bimini is designed to fit the 2019 V324SE Pontoon Boat that has the aft canopy brackets in the following locations: Main Bracket from rear fence 80" Rear HDA 33.5" FWD HDA 16.5" Measurements should be taken from the main bracket of the aft canopy bracket as shown below for bow and extended aft canopy brackets/hinges.
- Page 3 TO PREVENT DAMAGE TO THE TOP RAIL, IT IS RECOMMENDED TO DRILL A PILOT HOLE FIRST. AUXILLARY BOW FIG. 3 CROWN SECONDARY BOW MAIN BOW RAIL HOLD DOWN ARM SIDE ASSEMBLY 140305-00 | 06/18 Dowco Marine, Inc. | 1610 Frisco Road, Lebanon MO 65536 | dowcomarine.com | (800) 404-5252...
- Page 4 If the curtains are uneven, you may have to remove all the curtains and re-center one or both canopy tops. 140305-00 | 06/18 Dowco Marine, Inc. | 1610 Frisco Road, Lebanon MO 65536 | dowcomarine.com | (800) 404-5252...
- Page 5 Find the first snap (C) on the same side. Install the remaining studs. CARE WARNING DO NOT TRAILER BOAT WITH ANY CANOPY TOP UP (IN RADAR ARCH POSITION) OR WITH THE ENCLOSURE ASSEMBLED! 140305-00 | 06/18 Dowco Marine, Inc. | 1610 Frisco Road, Lebanon MO 65536 | dowcomarine.com | (800) 404-5252...
