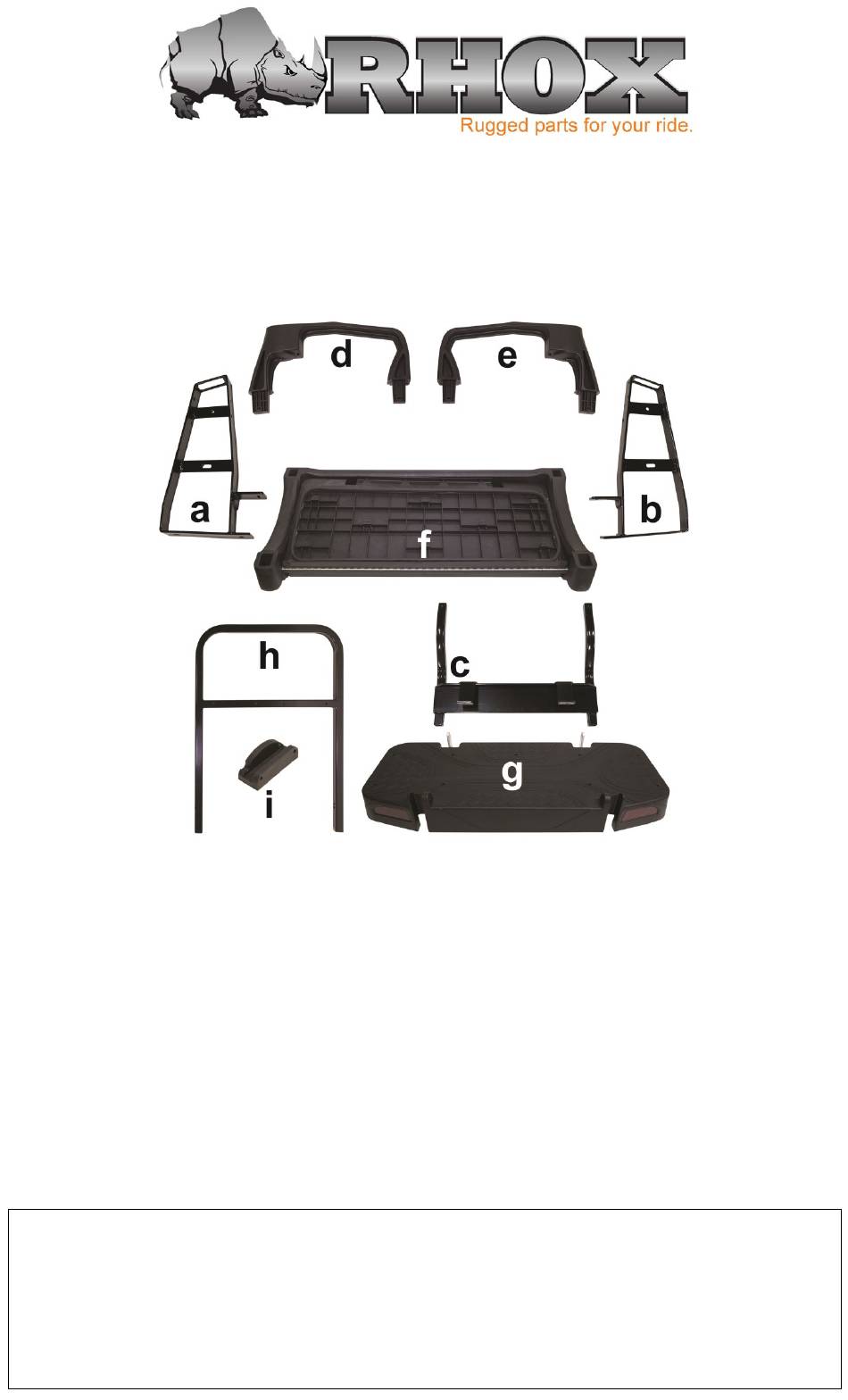

Contents of SEAT-511 Rear Seat Kit:
a
b
c
d
e
f
g
h
i
j
k
Caution: Please read through the instructions carefully. Installer is responsible
for damage if instructions are not followed properly. Look behind each drill or
cut location BEFORE YOU DRILL OR CUT. Installer is responsible for damage
(i.e. drilling/cutting into a wiring harness, battery, fuel tank etc.). Extra installers
will be helpful in some parts of the installation. Refer to vehicle's maintenance
manual for torqueing specifications on reused hardware.
SEAT-511
E-Z-Go TXT
RHOX 500 Series Rear Seat Kit
Installation Instructions
(1 ea.) Front Seat Back Support, Driver Side
(1 ea.) Front Seat Back Support, Passenger Side
(1 ea.) Vertical Support Bracket
(1 ea.) Arm Rest, Passenger Side
(1 ea.) Arm Rest, Driver Side
(1 ea.) Platform
(1 ea.) Footplate
(1 ea.) Safety Grab Bar
(1 ea.) Seat Bottom Handle
(1 ea.) Cushion Set (Not Shown)
(1 ea.) Bag of Hardware (Contents on Next Page)
Advertisement
Table of Contents
Related Manuals for RHOX 500 Series
Summary of Contents for RHOX 500 Series
- Page 1 SEAT-511 E-Z-Go TXT RHOX 500 Series Rear Seat Kit Installation Instructions Contents of SEAT-511 Rear Seat Kit: (1 ea.) Front Seat Back Support, Driver Side (1 ea.) Front Seat Back Support, Passenger Side (1 ea.) Vertical Support Bracket (1 ea.) Arm Rest, Passenger Side (1 ea.) Arm Rest, Driver Side...
- Page 2 Contents of SEAT-511 Hardware Kit 3/8-16 x 1.5” Hex Head Bolts 3/8” Flat Washers M8-1.25 x 55 Hex Head Bolts M8-1.25 x 45 Hex Head Bolts M8 Flat Washers M8-1.25 Nylock Nuts M6-1.0 x 70 Hex Head Bolts M6-1.0 x 45 Hex Head Bolts M6-1.0 x 35 Hex Head Bolts M6-1.0 x 30 Hex Head Bolts M6 Flat Washers...
- Page 3 Installation Preparation Engage parking brake. Turn key OFF. Electric Carts Only: Place Tow/Run Switch in Tow. Remove top. NOTE: If reinstalling the top, keep the top attached to the front struts and prop up the rear of the top using a broom handle or similar tool.
- Page 4 Remove both seat back supports and the bag attachment. Driver side seat support shown. Rear Seat Kit Installation Install the new front seat back support brackets where the original bracket was installed using (4) 3/8-16 x 1.5” Hex Head Bolts and (4) 3/8” Flat Washers. NOTE: The driver and passenger side brackets are different.
- Page 5 Insert the (4) M6 Square Nuts into the lower portions of the arm rests. (Driver Side Shown) Place the arm rests with the square nuts inside of the seat platform as shown. Fasten the arm rests to the platform using (2) M6 x 70 Hex Head Bolts (black arrow), (2) M6 x 45 Hex Head Bolts (red arrow) and (4) M6 Flat Washers.
- Page 6 Place the platform sub-assembly on top of the seat back support brackets and vertical support bracket. A second installer will be helpful on this step. Loosely fasten the platform to the seat back supports using (2) M6 x 30 Hex Head Bolts, (4) M6 Flat Washers and (2) M6 Nylock Nuts (black arrows).
- Page 7 10. Secure the safety grab bar to the footplate using (2) Clevis Pins and (2) Cotter Pins on the upper mounting holes (black arrows) and (2) M6 x 35 Hex Head Bolts and (2) M6 Flat Washers on the lower mounting holes (red arrows). Bottom View of Footplate 11.
- Page 8 13. If reinstalling the OE top and struts, install them to the seat back supports using the Original Hardware. NOTE: RHOX 88” Tops require TOP-0511 rear struts. Install TOP-0511 rear struts in the same location as the OE struts. 14. Optional Weather Seal: Clean the surface of the platform indicated by the red dashed line.
