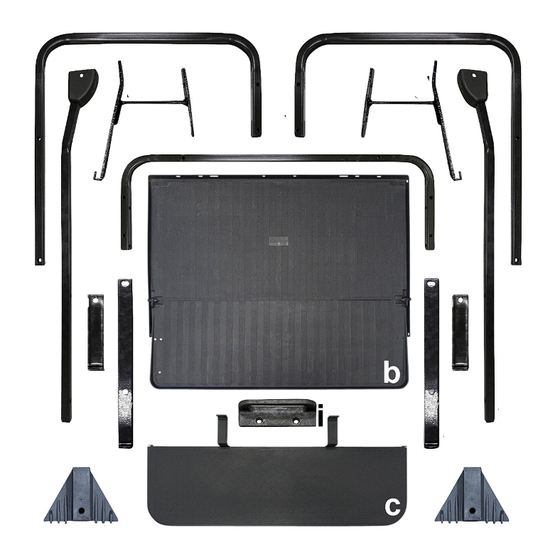

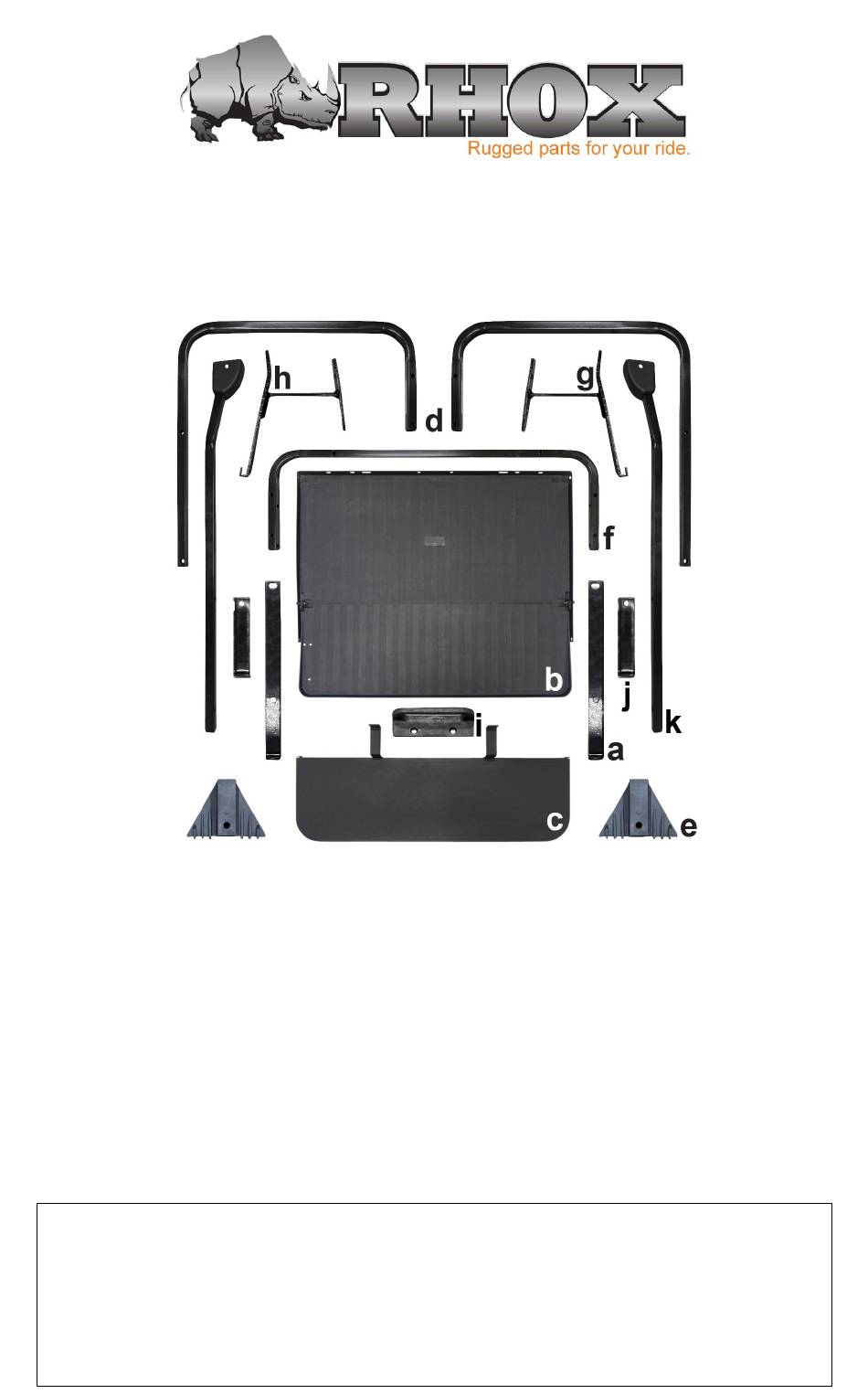

Contents of SEAT-331 RHOX 300 Series Rear Seat Kit:
a
b
c
d
e
f
g
h
i
j
k
l
Caution: Please read through the instructions carefully. Installer is respon-
sible for damage if instructions are not followed properly. Look behind each
drill or cut location BEFORE YOU DRILL OR CUT. Installer is responsible for
damage (i.e. drilling/cutting into a wiring harness, battery, fuel tank etc.).
Extra installers will be helpful in some parts of the installation. Refer to vehi-
cle's maintenance manual for torqueing specifications on reused hardware.
SEAT-331
Club Car Precedent
RHOX Seat Kit
Installation Instructions
(2 ea.) Vertical Support Brackets
(1 ea.) Seat Platform
(1 ea.) Foot Plate
(2 ea.) Handrails
(2 ea.) Foot Plate Support Brackets
(1 ea.) Seat Back Support Frame
(1 ea.) Seat Back Bracket, Passenger Side
(1 ea.) Seat Back Bracket, Driver Side
(1 ea.) Seat Bottom Handle
(2 ea.) Rear Strut Brackets
(2 ea.) Rear Struts
(1 ea.) Box of Hardware (Contents on Next Page)
Advertisement
Table of Contents
Related Manuals for RHOX 300 Series
Summary of Contents for RHOX 300 Series
- Page 1 SEAT-331 Club Car Precedent RHOX Seat Kit Installation Instructions Contents of SEAT-331 RHOX 300 Series Rear Seat Kit: (2 ea.) Vertical Support Brackets (1 ea.) Seat Platform (1 ea.) Foot Plate (2 ea.) Handrails (2 ea.) Foot Plate Support Brackets (1 ea.) Seat Back Support Frame...
- Page 2 Contents of SEAT-331 Hardware Kit Bag #1 10mm x 80 Hex Head Bolts 10mm x 75 Hex Head Bolts 10mm x 70 Hex Head Bolts 10mm x 50 Hex Head Bolts 10mm x 45 Hex Head Bolts 10mm x 30 Hex Head Bolts 10mm x 25 Hex Head Bolts 10mm x 40 Phillips Head Truss Bolts 10mm Flat Washers...
- Page 3 Installation Preparation Engage parking brake. Turn key OFF. Electric Carts Only: Place Tow/Run Switch in Tow. Remove canopy (black arrows). Retain hardware. Front Strut (Driver Side) Remove rear struts (red arrow). Hardware is located inside of sweat- er basket. Discard struts Rear Strut (Driver Side) and hardware.
- Page 4 Rear Seat Kit Installation Use a 3/8” drill bit to open up the (2) rear and outer most holes in the bagwell area. Drill completely through the rivet and the frame. Driver side hole not shown. Loosely fasten the vertical support brackets to the bagwell area using (2) 10mm x 50 Hex Head Bolts, (4) Flat Washers and (2) Nylock Nuts (Bag #1).
- Page 5 Loosely fasten the foot- plate to the vertical support brackets using (2) 10mm x 30 Hex Head Bolts, (4) Flat Washers and (2) Nylock Nuts (Bag #3). Loosely fasten the longer leg of a handrail to the rearmost portion of the seat platform (blue arrow) using (1) 10mm x 40 Phillips Head Truss Bolt,...
- Page 6 10. Loosely fasten the top of the handrails to the support frame (green arrow, page 5) using (2) 10mm x 70 Hex Head Bolts, (4) Flat Washers, (2) Nylock Nuts and (2) Spacers (Bag #4). 11. If reinstalling the OE top, complete steps 12-15.
- Page 7 17. Loosely fasten the seat back support brackets on top of the support frame using (2) 10mm x 45 Hex Head Bolts, (4) 10mm Flat Washers and (2) 10mm Nylock Nuts (Bag #5). Rear seat back is not shown. NOTE: The seat back support brackets have (2) vertical mounting holes for adjustment.
- Page 8 NOTE: RHOX 88” Tops require TOP-0108 rear struts. 23. Reinstall top using Original Hardware (if applicable). This completes the installation of your RHOX 300 Series Rear Seat Kit. Please enjoy safely! Scan QR code or use the link below to view the installation video.
