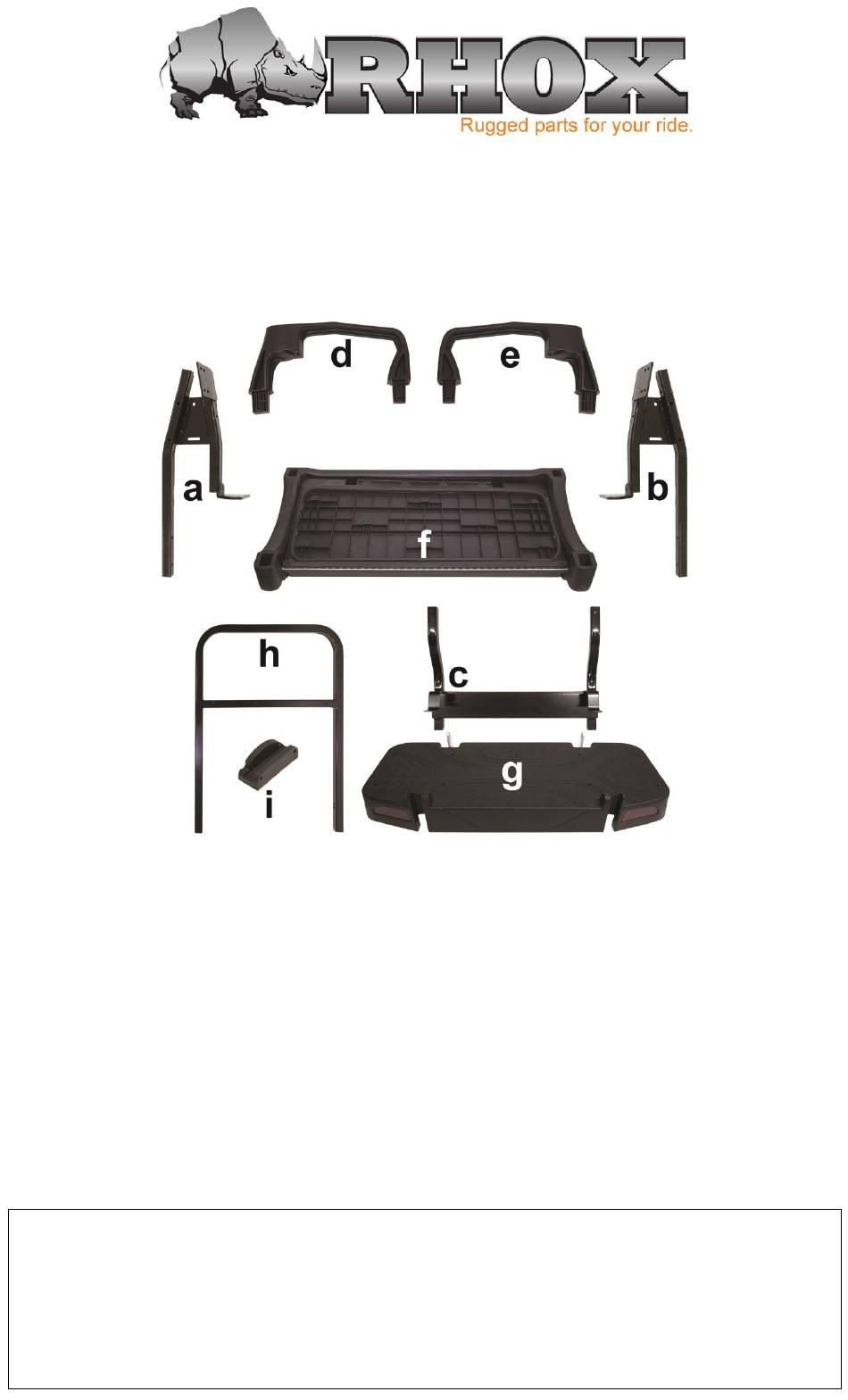

Contents of SEAT-561 Rear Seat Kit:
a
b
c
d
e
f
g
h
i
j
k
Caution: Please read through the instructions carefully. Installer is responsible
for damage if instructions are not followed properly. Look behind each drill or
cut location BEFORE YOU DRILL OR CUT. Installer is responsible for damage
(i.e. drilling/cutting into a wiring harness, battery, fuel tank etc.). Extra installers
will be helpful in some parts of the installation. Refer to vehicle's maintenance
manual for torqueing specifications on reused hardware.
SEAT-561
E-Z-Go RXV
RHOX 500 Series Rear Seat Kit
Installation Instructions
(1 ea.) Front Seat Back Support, Passenger Side
(1 ea.) Front Seat Back Support, Driver Side
(1 ea.) Vertical Support Bracket
(1 ea.) Arm Rest, Passenger Side
(1 ea.) Arm Rest, Driver Side
(1 ea.) Platform
(1 ea.) Footplate
(1 ea.) Safety Grab Bar
(1 ea.) Seat Bottom Handle
(1 ea.) Cushion Set (Not Shown)
(1 ea.) Bag of Hardware (Contents on Next Page)
Advertisement
Table of Contents
Related Manuals for RHOX 500 Series
Summary of Contents for RHOX 500 Series
-
Page 1: Installation Instructions
SEAT-561 E-Z-Go RXV RHOX 500 Series Rear Seat Kit Installation Instructions Contents of SEAT-561 Rear Seat Kit: (1 ea.) Front Seat Back Support, Passenger Side (1 ea.) Front Seat Back Support, Driver Side (1 ea.) Vertical Support Bracket (1 ea.) Arm Rest, Passenger Side (1 ea.) Arm Rest, Driver Side... - Page 2 Contents of SEAT-561 Hardware Kit M8-1.25 x 55 Hex Head Bolts M8 Flat Washers M8-1.25 Nylock Nuts M6-1.0 x 70 Hex Head Bolts M6-1.0 x 45 Hex Head Bolts M6-1.0 x 35 Hex Head Bolts M6-1.0 x 30 Hex Head Bolts M6 Flat Washers M6 Lock Washers M6-1.0 Nylock Nuts...
- Page 3 Installation Preparation Engage parking brake. Turn key OFF. Electric Carts Only: Place Tow/Run Switch in Tow. Remove top. NOTE: If reinstalling the top, keep the top attached to the front struts and prop up the rear of the top using a broom handle or similar tool.
- Page 4 Remove sweater basket. Discard hardware. Remove access panel. Retain hardware. Remove both seat back support brackets and rubber boots. The brackets are attached to the frame, under the body. Retain boots. (Passenger Side) Rear Seat Kit Installation Slide the original boots onto the new seat back support brackets.
- Page 5 Use a 5/16” drill bit to open up the (2) rear most holes in the bagwell area (black arrows). Drill completely through the frame. Loosely fasten the vertical support bracket to the bagwell area using (2) M8 x 55 Hex Head Bolts, (4) Flat Washers and (2) Nylock Nuts.
- Page 6 Place the platform sub-assembly on top of the seat back support brackets and vertical support bracket. A second installer will be helpful on this step. Loosely fasten the platform to the seat back supports using (2) M6 x 30 Hex Head Bolts, (4) M6 Flat Washers and (2) M6 Nylock Nuts (black arrows).
- Page 7 13. Secure the safety grab bar to the footplate using (2) Clevis Pins and (2) Cotter Pins on the upper mounting holes (black arrows) and (2) M6 x 35 Hex Head Bolts and (2) M6 Flat Washers on the lower mounting holes (red arrows). 14.
- Page 8 16. If reinstalling the OE top and struts, install them to the seat back supports using the Original Hardware. NOTE: RHOX 88” Tops require TOP-0561 rear struts. Install TOP-0561 rear struts in the same location as the OE struts. 17. Optional Weather Seal: Clean the surface of the platform indicated by the red dashed line.
