2. introduction

unique and innovative 360° swivel and tilt function enables light source to be positioned in any direction. exclusive patented design owned
and registered to sealey. each lamp houses 10 super bright smd leds providing up to 400 lumen output with 120° spread of light, illuminating
the whole work area. includes an additional high power 3W led in the end for use as a directional torch. features two swivel hooks and three
rubber covered magnets, two on the rear and one on the end, which allow hands free operation. High quality 2.2Ah lithium-ion battery for longer
life, no memory effect and a much slower discharge than traditional ni-mH batteries. micro usB charging port. (Pin jack charging port on eu
models.) supplied with mains and in car charger. Also available with schuko plug - add 'eu' onto the number of choice.

3. specification

model no: ............................................................led360.V2
Battery: .....................................................3.7V - 2.2Ah li-ion
led quantity: .............................................. 10 smd + 1 led
lumen output side(high/low)/top: ................. (400/200)/120lm
operating time side(high/low)/top: ............................ (3/6)/8hr
charging time: ...................................................................4hr
iP rating:..........................................................................iP54
minimum length: ......................................................... 260mm
maximum length: ........................................................ 280mm
important WArrAntY informAtion
V
The battery fitted to this lamp is considered to be a consumable item and its ability to accept a charge will reduce over time.
We will provide warranty against mechanical and electrical defect for a period of one year - this does not cover fair wear and tear.
If the battery is not properly charged before first use, or regularly conditioned, its capacity will diminish. Under these circumstances
we will not replace the battery regardless of whether it is less than one year old.
note: the lithium battery does not suffer from memory effect and once fully charged may be stored for up to six months without
another charge.

4. operation

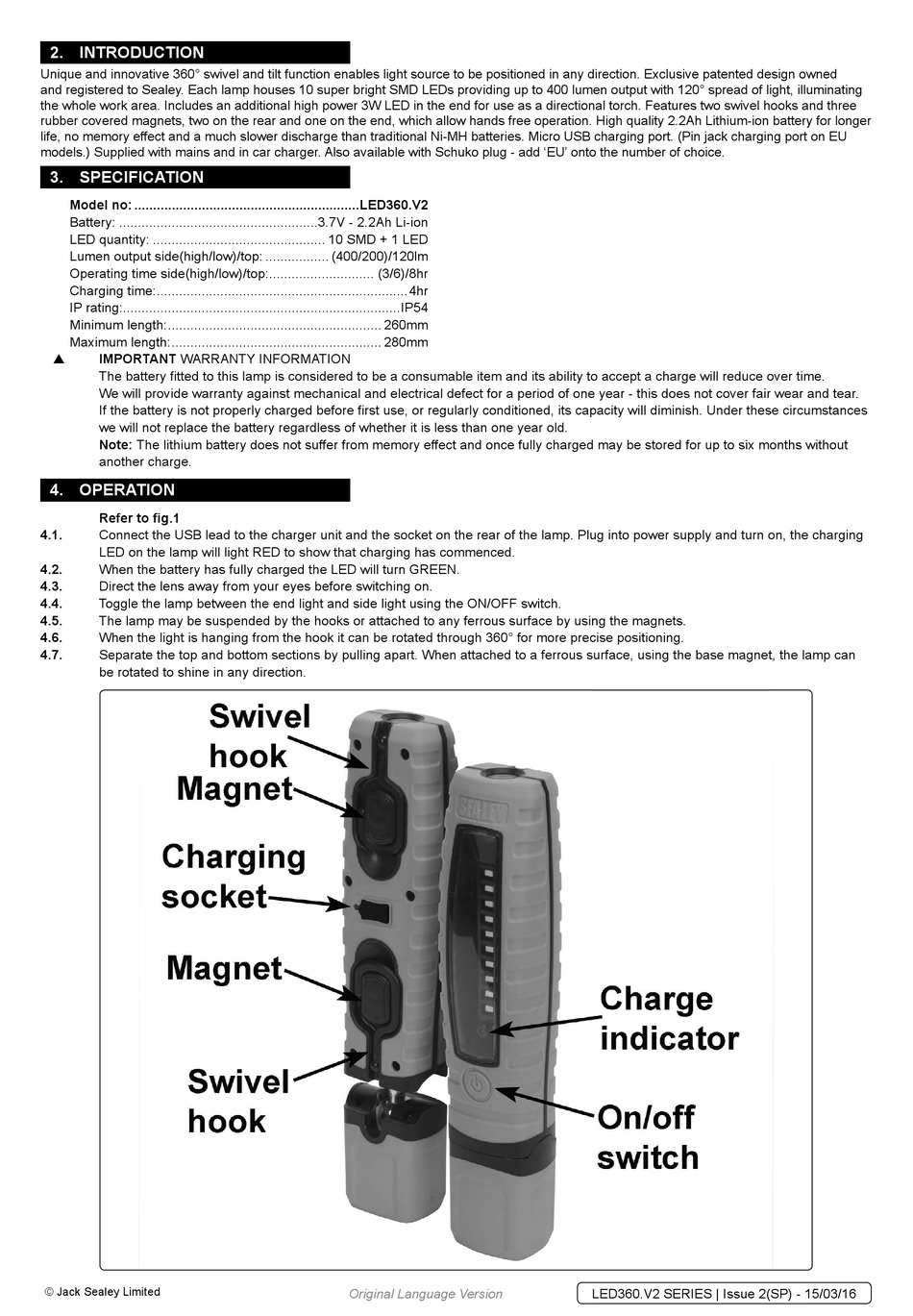

Refer to fig.1
4.1. connect the usB lead to the charger unit and the socket on the rear of the lamp. Plug into power supply and turn on, the charging
led on the lamp will light red to show that charging has commenced.
4.2. When the battery has fully charged the led will turn Green.
4.3. direct the lens away from your eyes before switching on.
4.4. toggle the lamp between the end light and side light using the on/off switch.
4.5. the lamp may be suspended by the hooks or attached to any ferrous surface by using the magnets.
4.6. When the light is hanging from the hook it can be rotated through 360° for more precise positioning.
4.7. separate the top and bottom sections by pulling apart. When attached to a ferrous surface, using the base magnet, the lamp can
be rotated to shine in any direction.
© Jack sealey limited
Original Language Version led360.V2 series | issue 2(sP) - 15/03/16
