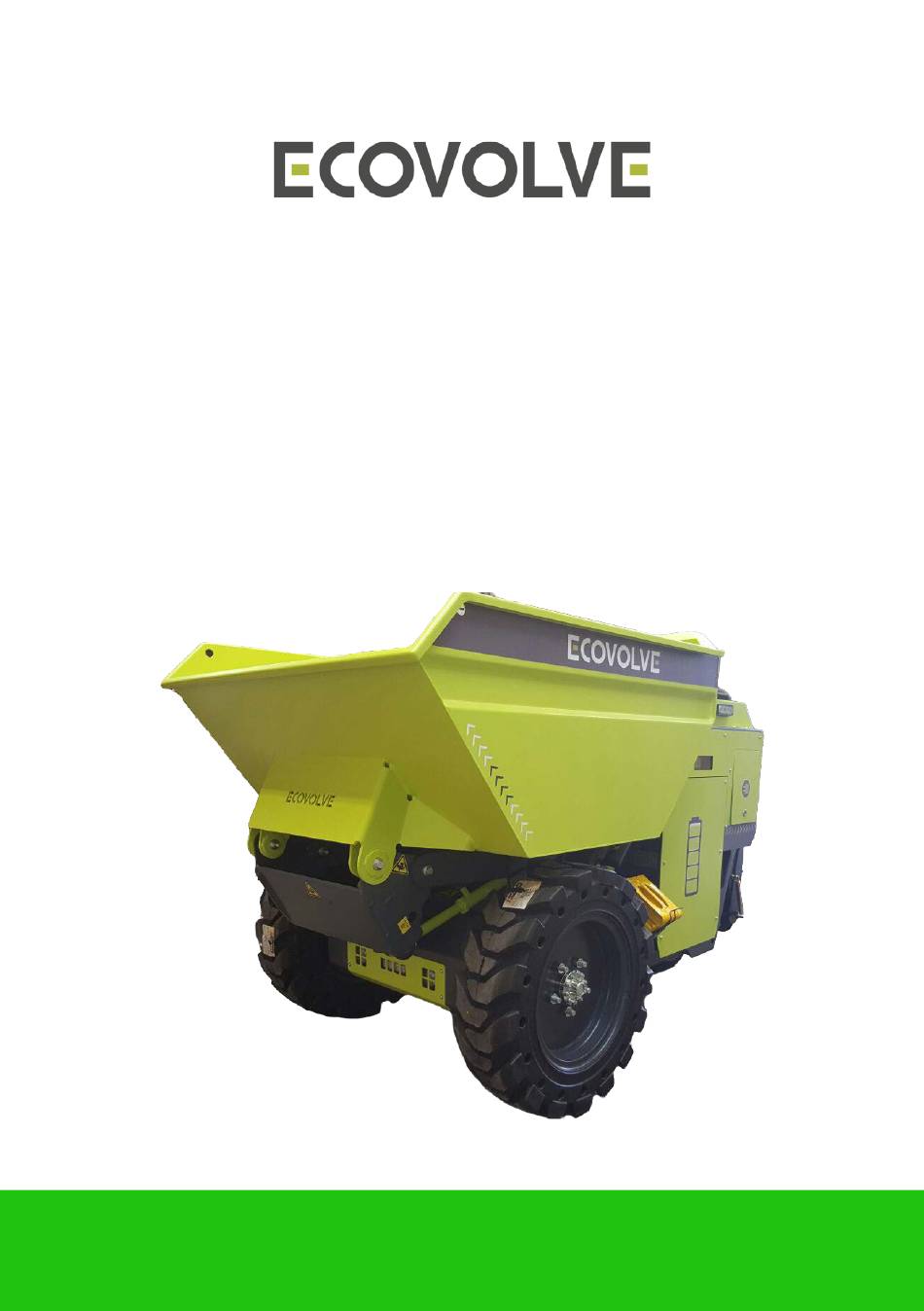

ED1500
ELECTRIC DUMPER
OPERATOR'S HAND BOOK
WWW.ECOVOLVE.EU
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ED1500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ECOVOLVE ED1500

Summary of Contents for ECOVOLVE ED1500

  • Page 1 ED1500 ELECTRIC DUMPER OPERATOR’S HAND BOOK WWW.ECOVOLVE.EU...
  • Page 2 A full and comprehensive instruction guide may be found in the Operator’s Manual supplied with the ED1500. The OP- ERATOR’S MANUAL contains full information on the operational, main- tenance, transportation and technical data for the ED1500.

  • Page 3: Safety Regulations

    Operators Personal Protective Equipment (PPE) SAFETY SHOES REQUIRED Safety shoes must always be worn when operating the ED1500 to avoid personal injury. For all other (PPE) follow the guidelines issued by the specific site you are...

  • Page 4: Skip Sticker Warning Symbols

    SKIP STICKER WARNING SYMBOLS Indicate change of direction by using hand signals. Danger! Don't drive with the skip in the raised position Max 10° Danger! Risk of over turning on Max Gradient 10° 10 max Danger! High level of risk which could result in death or seri- ous injury if they are not avoided.

  • Page 5: Table Of Contents

    9 OPERATOR’S SAFETY RAILS & PLATFORM 10 CHARGING 10 STEERING & PARKING 12 TRANSPORTATION OF MACHINE 13 LIFTING & ANCHOR POINTS 15 OPERATOR’S DAILY/WEEKLY CHECK 16 METRIC KEY MEASUREMENTS AND GROUND PRESSURE 17 IMPERIAL KEY MEASUREMENTS AND GROUND PRESSURE 18 ED1500 EUROPEAN CE CERTIFICATE...

  • Page 6: Tiller Controls

    OFF switch. (Fig 3) Speed Switch. Two options high and Horn. (Fig 5) low (Fig 4) Traction paddles. UP forward /DOWN reverse. (Fig 6-7) EMR REVERSE – When Pressed IN will STOP the ED1500, and move it forward away from danger. (Fig 8-9)

  • Page 7: Dash Controls

    Multi-functional display. Displays battery discharge (BDI), hour meter and error messages.(Fig 10) Multi-functional display metre. (Fig 10) Light switch. (Fig 11) Key start. To power up the ED1500, first check that the emergency stop button is in the UP position, then turn the start key clockwise. (Fig 12)
  • Page 8 Emergency stop button.(“E-stop”) Press the E-stop button to immediately interrupt all powered functions. Use the E-stop during operation if the travel or skip functions do not respond normally to operator commands. (Fig 13-14) ON POSITION OFF POSITION Skip lever. The skip lever has four positions. pull the lever back to raise the skip.

  • Page 9: Operator's Safety Rails & Platform

    OPERATOR’S SAFETY RAILS & PLATFORM Operator’s platform In the down position the operator can operate the ED1500 standing on the platform, in the up position the operator can walk behind the ED1500. (Fig 17-18) Ride on mode: Operators platform Must be in the Down position.

  • Page 10: Charging

    To ensure maximum performance and life of AGM battery. Charge the battery pack fully before use. STEERING & PARKING Steering The tiller head of the ED1500 can move from left to right as required when steering the ED1500, this will turn the traction wheel in the direction desired. (Fig 27)
  • Page 11 (Fig 35) Greasing The ED1500 is fitted with 17 grease nipples which can be located at all moving joint. To grease simply remove the grease nipple dust cap. (Fig 36) Give each point 1 squirt of grease and replace dust cap.

  • Page 12: Transportation Of Machine

    When LOADING the ED1500 on a suitable vehicle ensure that the following points are adhered to. • Clean the ED1500 to reduce the hazard of dirt and debris falling from the machine during transport. • Confirm that the transport vehicle is serviceable for the transport task and that it is rated to carry a Mass of 1.5 tons or 3306 Lbs...

  • Page 13: Lifting & Anchor Points

    LIFTING & ANCHOR POINTS The unladed weight of the dumper is 1500kg /3306Lbs. The ED1500 has two lifting points (Fig 28) and five anchor points which are used to lift and secure the machine when transporting. The two lifting points, as indicated below are designed so that the machine can be lifted safely on to a suitable transporter.
  • Page 14 Anchor While being transported it is important to ensure the ED1500 does not move, the five anchor points provided should be used to best effect, front and back of the machine, using certified slings and chains. See Fig 31-34.

  • Page 15: Operator's Daily/Weekly Check

    Check for Damages. Check for Lubrication. It is the operator’s responsibility to report any faults observed to the site supervisor. The op- erator’s weekly check list is covered under rele- vant section of the Operator’s manual supplied with the Ed1500.

  • Page 16: Metric Key Measurements And Ground Pressure

    METRIC KEY MEASUREMENTS AND GROUND PRESSURE...

  • Page 17: Imperial Key Measurements And Ground Pressure

    IMPERIAL KEY MEASUREMENTS AND GROUND PRESSURE...

  • Page 18: Ed1500 European Ce Certificate

    ED1500 EUROPEAN CE CERTIFICATE...
