Summary of Contents for ECOVOLVE ED8000

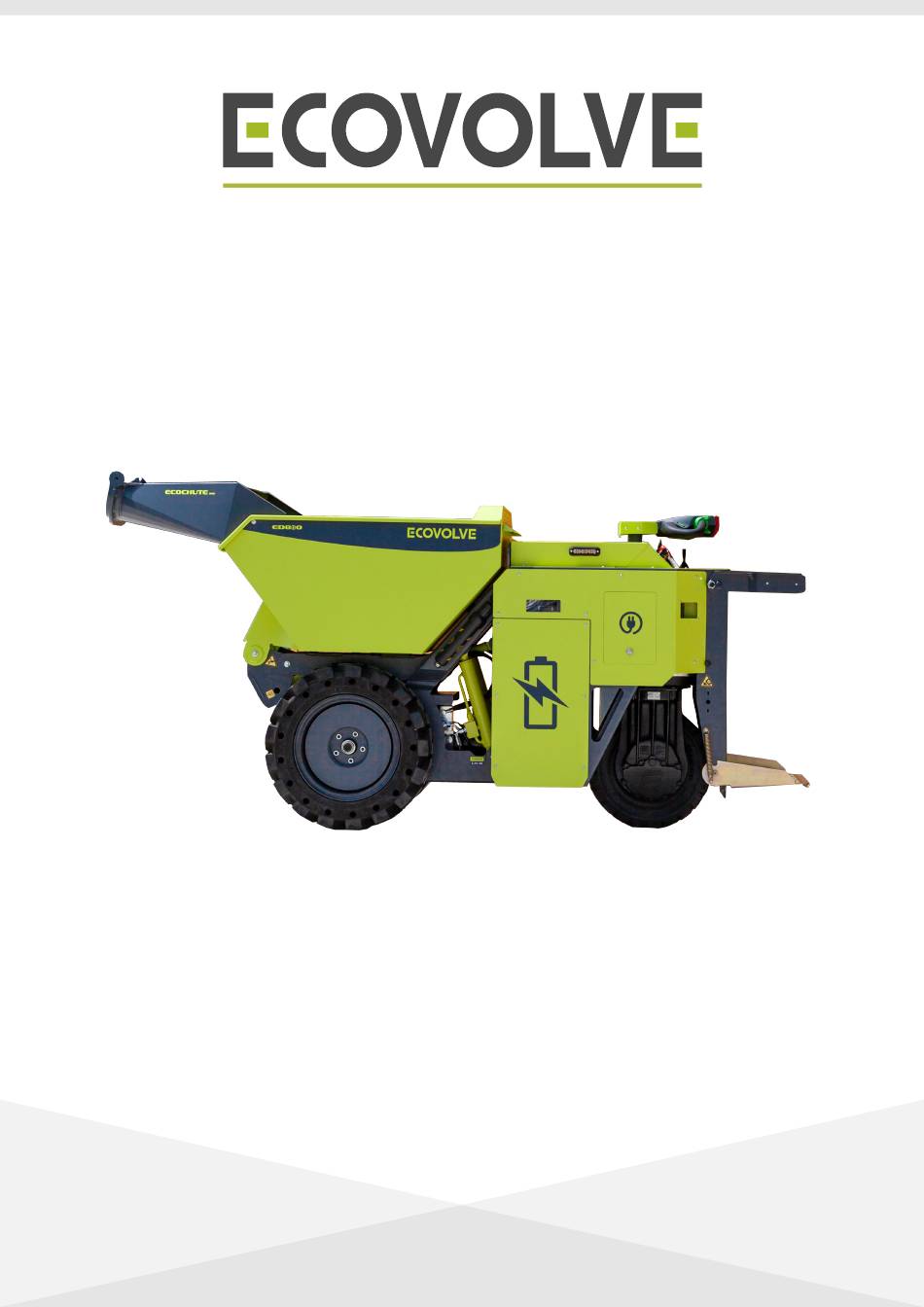

- Page 1 ED800 BATTERY HI-TIP DUMPER OPERATOR’S HANDBOOK...
- Page 2 The OWNERS MANUAL contains more detailed and complete information about the operation, maintenance, transport, servicing and technical data for the ED800. Manufacturer : Ecovolve Model : ED800 : ........
-
Page 3: Table Of Contents
Contents Safety Safety regulations ............. . . Decal warning symbols . -
Page 4: Safety
Safety Safety regulations Always follow the warnings contained within this operators handbook and on the ED800 to avoid incidents and accidents from occuring unnecessarily. The following symbols and the signal words DANGER, WARNING, CAUTION and ELECTRICAL WARNING indicate hazards and instructions. Warning symbols. -
Page 5: Decal Warning Symbols
Safety Decal warning symbols Indicate change of direction by using hand signals. Danger! Dont drive with the skip in the raised position. Danger! Risk of over turning on max gradient of 10º. Danger! Dont empty the skip on steep gradients . Drivable uphill/downhill on a Max gradient of 15º. -
Page 6: Overview
Overview Operators platform and safety rails CAUTION The following section is an overview of the operators platform and safety rails. All operators must read and fully understand the instructions before operating the truck. Operators platform The truck has a 2 position platform for the operator to stand on when operating the machine. In the raised position the operator can walk behind the truck (fig 1). -
Page 7: Dashboard Controls
Overview Dashboard controls CAUTION The following section is an overview of the dashboard controls. All operators must read and fully understand the instructions before operating the truck. FIG 1 FIG 3 FIG 2 Key ignition switch Emergency stop button. Multi function display. FIG 5 FIG 6 FIG 4... -
Page 8: Tiller Head Controls
Overview Tiller head controls CAUTION The following section is an overview of the tiller head controls. All operators must read and fully understand the instructions before operating the truck. FIG 1 FIG 2 FIG 3 Flashing Beacon & Horn Switch: Pressed IN Speed Switch. -
Page 9: Operation
Operation Operating the truck Switching on the truck • Ensure the tiller head is in the central position and disengage the emergency stop button. • Insert the key into the key switch and turn clockwise from the zero position to position “II” and hold for 3 seconds. The traction wheel will reset. •... - Page 10 Operation Operating the hi tip skip functions The truck is equipped with a high tip function. The skip lever is located on the dashboard which operates all the functions of the skip. The skip lever functions in four positions. Tilting the skip FORWARD: Push the lever to the RIGHT. �...
-
Page 11: Parking
Operation Parking In the interest of safety, It is the operators responsibility to ensure that the truck is parked in a safe and secure manner. When parking the truck: • The start key must be turned anticlockwise • The E-stop button •... -
Page 12: Charging
Charging Charging the battery The charging compartment is located at the side of truck (fig 1). The supplied 3m charging � cable is stored inside the compartment. The charging Compartment contains the location of the battery charging plug and � two handheld programming device connections (labeled 1234 and 1222). -
Page 13: Ic1200 Battery Charger Overview
Charging Delta Q IC1200 Battery charger overview Display icons 1. Fault / Error / Usb indicator Erreur / Erreur / Indicateur 2. Battery charging / Indicator 5. Charging output indicator Indicateur de charge de la ba�erie 6. Charge profile / Error display AC Power indicator AC Power indicator 3. -
Page 14: Transportation
Transportation Transporting the truck The Ecovolve range are all easily transportable. It is comparatively lightweight for its capacity and can be loaded on to a vehicle with a load rating of 1300kg minimum. The operator’s platform can be raised up and the safety rails can be lowered down for ease of transportation. - Page 15 Transportation Lifting and anchor points The truck has two lifting points and five anchor points which are used to lift and secure the � machine when transporting. Use certified slings and chains to secure the truck when being transported. � The assigned lifting and anchor points must be used in conjunction with approved straps or �...
-
Page 16: Technical Data
100-240 100-240 100-240 ed Charging - Input (V AC) 50.0 A 50.0 A 100.0 A - Output (V DC) Technical data e (Hrs) Induc tio n moto r ED800 Metric key measurements 5KW/7HP 5KW/7HP 5+4KW/11HP and ground pressure Zero Zero Zero 60-80 60-80... -
Page 17: Ed 800 Imperial Measurements
100-240 100-240 100-240 ed Charging - Input (V AC) 50.0 A 50.0 A 100.0 A - Output (V DC) Technical data e (Hrs) Induc tio n moto r ED800 Imperial key measurements and ground 5KW/7HP 5KW/7HP 5+4KW/11HP pressure Zero Zero Zero 60-80 60-80... -
Page 18: Operators Daily Checklist
Daily checklist Operator’s daily check list All operator’s must complete the daily checklist at the start of each working day prior to the operation of the truck. The truck must not be used if any item on the checklist is faulty or damaged. Any faults or damage to the truck must be reported to the relevent authority. -
Page 19: Ce Certificate
CE Certificate ED800 CE CERTIFICATE... - Page 20 www.ecovolve.eu...
