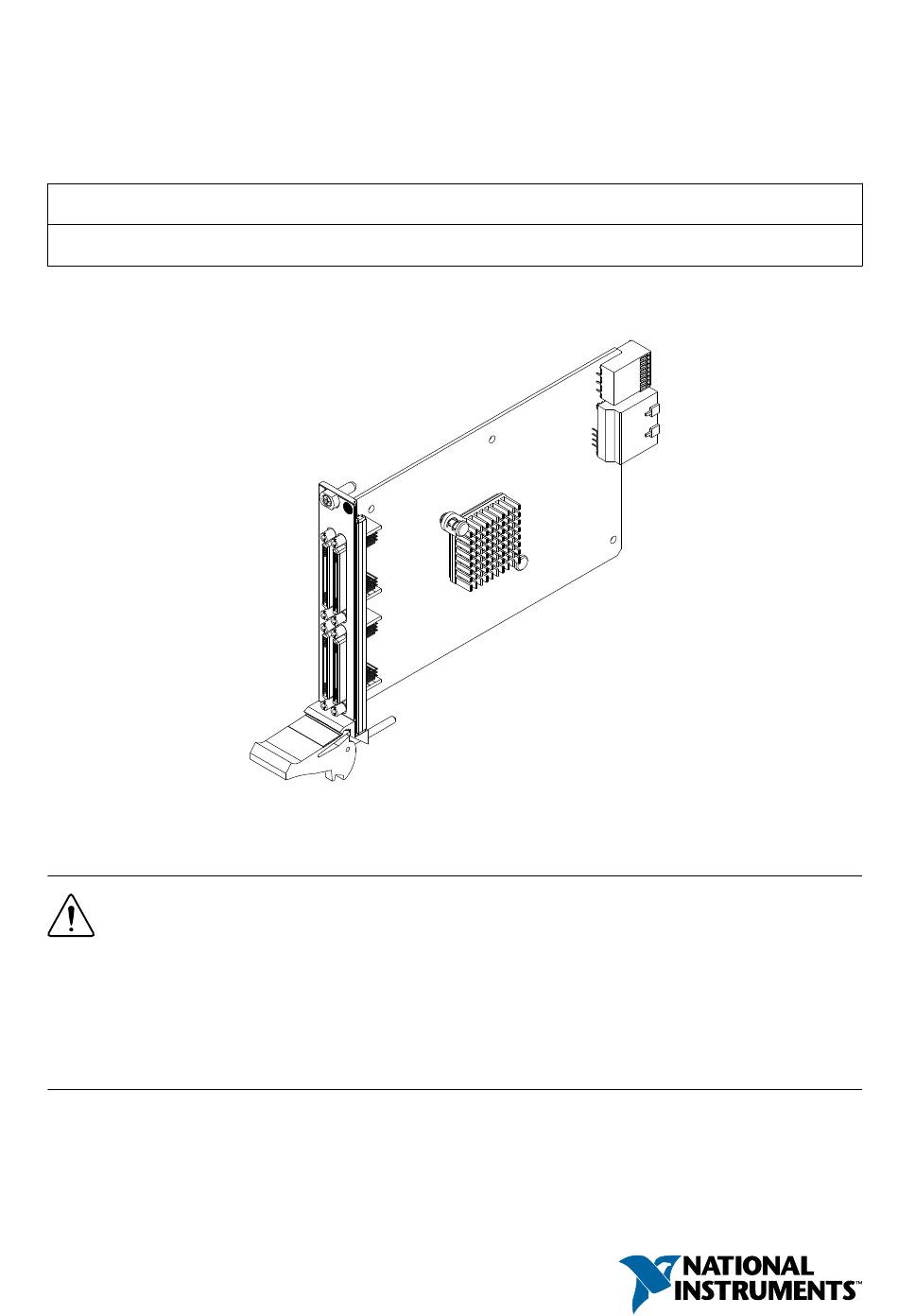

GETTING STARTED GUIDE
NI PXIe-7821R
R Series for PXI Express Digital RIO with Kintex-7 160T FPGA
Français
This document explains how to install and configure the NI PXIe-7821R.
Safety Guidelines
Caution
manual. Product misuse can result in a hazard. You can compromise the safety
protection built into the product if the product is damaged in any way. If the product
is damaged, return it to National Instruments for repair.
Electromagnetic Compatibility Guidelines
This product was tested and complies with the regulatory requirements and limits for
electromagnetic compatibility (EMC) as stated in the product specifications. These
Deutsch
ni.com/manuals
Do not operate the NI PXIe-7821R in a manner not specified in this user
한국어
日本語
简体中文
Advertisement
Related Manuals for National Instruments PXIe-7821R
Summary of Contents for National Instruments PXIe-7821R
- Page 1 Safety Guidelines Caution Do not operate the NI PXIe-7821R in a manner not specified in this user manual. Product misuse can result in a hazard. You can compromise the safety protection built into the product if the product is damaged in any way. If the product is damaged, return it to National Instruments for repair.
-
Page 2: Unpacking The Kit
Unpack any other items and documentation from the kit. Store the device in the antistatic package when the device is not in use. Verifying the Kit Contents Verify that the following components are in your kit. 2 | ni.com | NI PXIe-7821R Getting Started Guide... -
Page 3: Preparing The Environment
Figure 1. Kit Contents for the NI PXIe-7821R 1. Hardware 2. NI-RIO Media 3. Getting Started Guide Preparing the Environment Ensure that the environment in which you are using the NI PXIe-7821R meets the following specifications................Operating temperature 0° C to 55° C (IEC 60068-2-1, IEC 60068-2-2) ................ - Page 4 5. PXI Express Peripheral Slot 3. PXI Express Hybrid Peripheral Slot NI PXIe-7821R modules can be placed in PXI Express peripheral slots, PXI Express hybrid peripheral slots, or PXI Express system timing slots. Touch any metal part of the chassis to discharge static electricity.
- Page 5 11. Cover all empty slots using filler panels or slot blockers to maximize cooling air flow. 12. Power on the chassis. Verifying Hardware Installation for Host Targets You can verify that the system recognizes the NI PXIe-7821R by using Measurement & Automation Explorer (MAX). Launch MAX by navigating to Start»All Programs»National Instruments»MAX or by clicking the MAX desktop icon.
- Page 6 Shielded R Series High Speed Digital Cable, 2m (156166-02) Note NI is not liable for connections that exceed any of the maximum ratings of input or output signals on the NI PXIe-7821R and on the computer chassis. Refer to the NI PXIe-7821R Specifications, available at for the maximum ni.com/manuals...
- Page 7 DIO31 DIO30 * x is the connector number. External Clock x is an input only. The NI PXIe-7821R is protected from overvoltage and overcurrent conditions. Refer to the NI PXIe-7821R Specifications, available at , for more information on ni.com/manuals overvoltage and overcurrent conditions.
- Page 8 When the system powers on, the DIO channels are set as input low with pull-down resistors. To set another power-on state, you can configure the NI PXIe-7821R to load a VI when the system powers on. The VI can then set the DIO lines to any power-on state.
- Page 9 Shielded R Series High Speed Digital Cable, 2m (156166-02) For user-supplied cables, the ferrite beads can be ordered directly from NI by visiting ni.com/ info and entering RDIO2FERRITE Figure 5. Ferrite Installation 1. I/O cable 2. Ferrites NI PXIe-7821R Getting Started Guide | © National Instruments | 9...
-
Page 10: Where To Go Next
NI Community ni.com/services ni.com/community Where to Go for Support The National Instruments Web site is your complete resource for technical support. At ni.com/ support you have access to everything from troubleshooting and application development self- help resources to email and phone assistance from NI Application Engineers. - Page 11 Other product and company names mentioned herein are trademarks or trade names of their respective companies. For patents covering National Instruments products/technology, refer to the appropriate location: Help»Patents in your software, the file on your media, or the National Instruments Patent Notice at .
