Summary of Contents for Aimco AUDITOR AUET

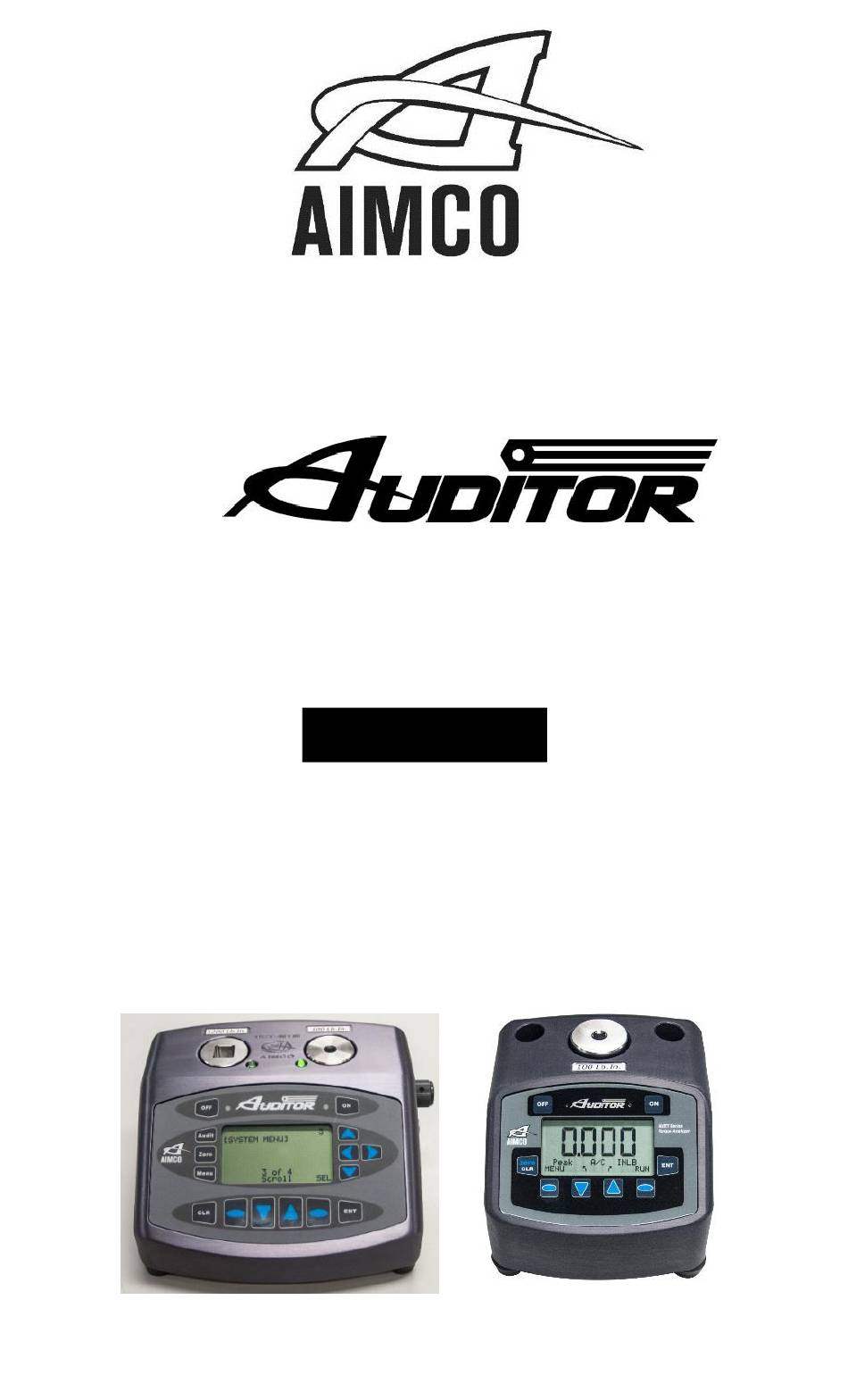

- Page 1 AUET & AUET/MTM-DC Desktop Torque Testers User Guide...
-
Page 2: Table Of Contents
CONTENTS Safety Requirements ..........................3 Descriptions and Specifications Unit Specifications ........................ 4 Screen and Button Diagram ....................5 Side Panel Diagrams ......................6 Operating Instructions Charging the AUET-DC ......................7 Basic Navigation ........................7 Turning On / Off ........................7 Preparing the AUET-DC for Use................... -
Page 3: Safety Requirements
SAFETY REQUIREMENTS SAVE THESE INSTRUCTIONS e) When operating a power tool 1) WORK AREA outdoors, use an extension cord a) Keep work area clean and well suitable for outdoor use. Use of lit. Cluttered and dark areas invite a cord suitable for outdoor use accidents. -
Page 4: Unit Specifications
your hair, clothing, and gloves application. The correct power away from moving parts. Loose tool will do the job better and safer clothes, jewelry, or long hair can be at the rate for which it was caught in moving parts. designed. -
Page 5: Screen And Button Diagram
SCREEN AND BUTTON DIAGRAM Figure 1 Data Display 12. Right Selection Button Data Storage Mode Operating Mode Increase Parameter Value Menu Mode Status Select Parameter Selection Arrow – Down 13. Selection Arrow – Up Change Operating Mode ... -
Page 6: Side Panel Diagrams
Figure 2 AUET/MTM-DC Transducer Transducer Input Selection Figure 3 AUET/MTM AUET Model Model Serial Serial Communication Communication Output Output DC Power DC Power Input Input... -
Page 7: Charging The Auet-Dc
Turning On / Off To turn the AUET on, press the “ON” symbol (low battery) will show button (Figure 1). The AIMCO logo will be on the Main Display screen, see displayed for approximately 4 seconds Figure 1, (19). The 100–240VAC... -
Page 8: Preparing The Auet-Dc For Use
Preparing the AUET for Use Alignment of the concave shapes in an The AUET testers feature a supplied Joint opposing manner a simulated soft joint is Simulator (Fig. A) that is configurable to a achieved (Fig. C). wide variety of joint conditions. Fig. -
Page 9: Selecting Operating Mode
Selecting the Proper OPERATING MODE cycle through the available Operating While in the Main Display screen, press Mode choices. The choices will be the Selection Arrow-Down button to displayed in the following order: Selecting the Proper DATA MODE stored, then the UP arrow would need to The AUET contains two Data Modes. -
Page 10: Using The Auet-Dc In Memory Mode
Clearing a Torque Value / RUN MODE clear a torque value from the display: When in RUN MODE, if Auto Clear is Set the Auto Clear function to turned on by selecting a time value, the OFF. display screen will automatically convert While in the Main Display back to a zero value after the set amount screen, conduct a rundown. -
Page 11: Clearing A Previous Torque Value / Memory Mode
Rundown Number will be displayed It is possible to scroll to a stored- and the system will be ready to record rundown-number which is above the another torque value. highest stored value; for example, if 10 5. If the rundown is determined to be rundowns have been stored, it is invalid (statistical outlier, operator possible to scroll to stored-rundown-... -
Page 12: Accessing Menu Functions
AUET-DC, AUET/MTM-DC MENU FUNCTIONS The basic set-up features of the AUET-DC are accessed through the MENU function. Data management, system set-up, display characteristics and power management can all be configured from this area to match the users’ needs. Accessing the MENU Functions 1. -
Page 13: Auto Clear
(2-1) Auto Clear programming is 500 Hz for most, but more The Auto Clear function determines the consistent values may be obtained with length of time, in seconds, that a torque other settings, depending on tool design, reading will display on the screen after a joint characteristics and other factors. -
Page 14: End Timer
5. When the desired value is selected, Turning Sign Lock ON / OFF press ENTER to save and progress to 1. From the main display press MENU the next MENU level. 2. Press the Right Selection button to select PEAK OPTIONS MENU At any Menu level, pressing ENT twice will 3. -
Page 15: System Menu
4. Press the appropriate Left or Right 7. If OFF is selected with the Right Selection button to select the HIGH or Selection button, the corresponding LOW limit. LIMIT will be disabled. 5. If, as an example, the High Limit is ... -
Page 16: Sleep
SYSTEM MENU. This information may be 1. From the main display press MENU. valuable when contacting AIMCO 2. Use the Selection Arrow buttons to customer service or technical support. scroll to SYSTEM MENU. 3. Press the Right Selection button to Accessing the Information Screens select (SEL) SYSTEM MENU. -
Page 17: Data Menu
Pinout Diagram Print Data Requirements Data can be transmitted by cable through Pin # Description the built in Serial port using AIMCO’s Part Unused # RS232C. The data can be transmitted to Transmit a serial printer or to a terminal emulation Receive program on the user’s computer PC such... -
Page 18: Clear Memory
(4-2) Clear Memory (4-3) Reset All To erase all stored rundown data: To erase all stored rundown data and 1. From the Main Display screen, press format the memory allocation: MENU. 1. From the Main Display screen, press 2. Use the Selection Arrow buttons to MENU. -
Page 19: Tool Manager/Job Manager
is unlikely that the computer will reassign Tool Manager and Jobs Manager are SQL the port; therefore this setup is a one-time Lite databases that have been built to procedure. However some computers, support data collection. particularly MS operating systems, often applications have been designed to be simple, powerful, and flexible. - Page 20 The View Data tab allows you to look at the collected data and see whether the tool passed or failed. This data can be exported to Excel as a .csv file and displayed by Excel charts.
- Page 21 AWS Jobs Manager 1-Main Screen Auditor Job Manager Job & Route Builder Job Info drop down list shows all available Jobs. Selecting the “New” button allows you to create a new job. The “Delete” button lets you delete a selected job. Route Info lists all Routes and the Jobs in a Route.
- Page 22 The View Data tab allows you to look at the collected data and the trace file. This data can be exported to Excel as a .csv file and displayed by Excel charts The trace file displays the data in a torque/time graph and allows the user to supersede the move-on reading selected by the wrench by visually discerning via the trace where the fastener started to rotate.
-
Page 23: Transducer Setup
The AUET/MTM-DC can be used with a For the typical, Industry Standard (IS) type variety of external transducers, whether of transducer, the setup procedure is as supplied by AIMCO or another manu- follows: facturer. Because manufacturers use a wide range of transducer technologies and 1. - Page 24 UP or DOWN arrows to change this attached to the unit. value. Hit ENT once the desired value is displayed. Should you have any additional questions, please contact your local AIMCO-Auditor™ Series Representative LIT-MAN861 Rev. 12/2014 Printed in USA ©2014 AIMCO...
