B-K lighting PS Installation Instructions Manual page 6

Installation Instructions
5 7/8" Dia.
(149mm)
120V
Remote

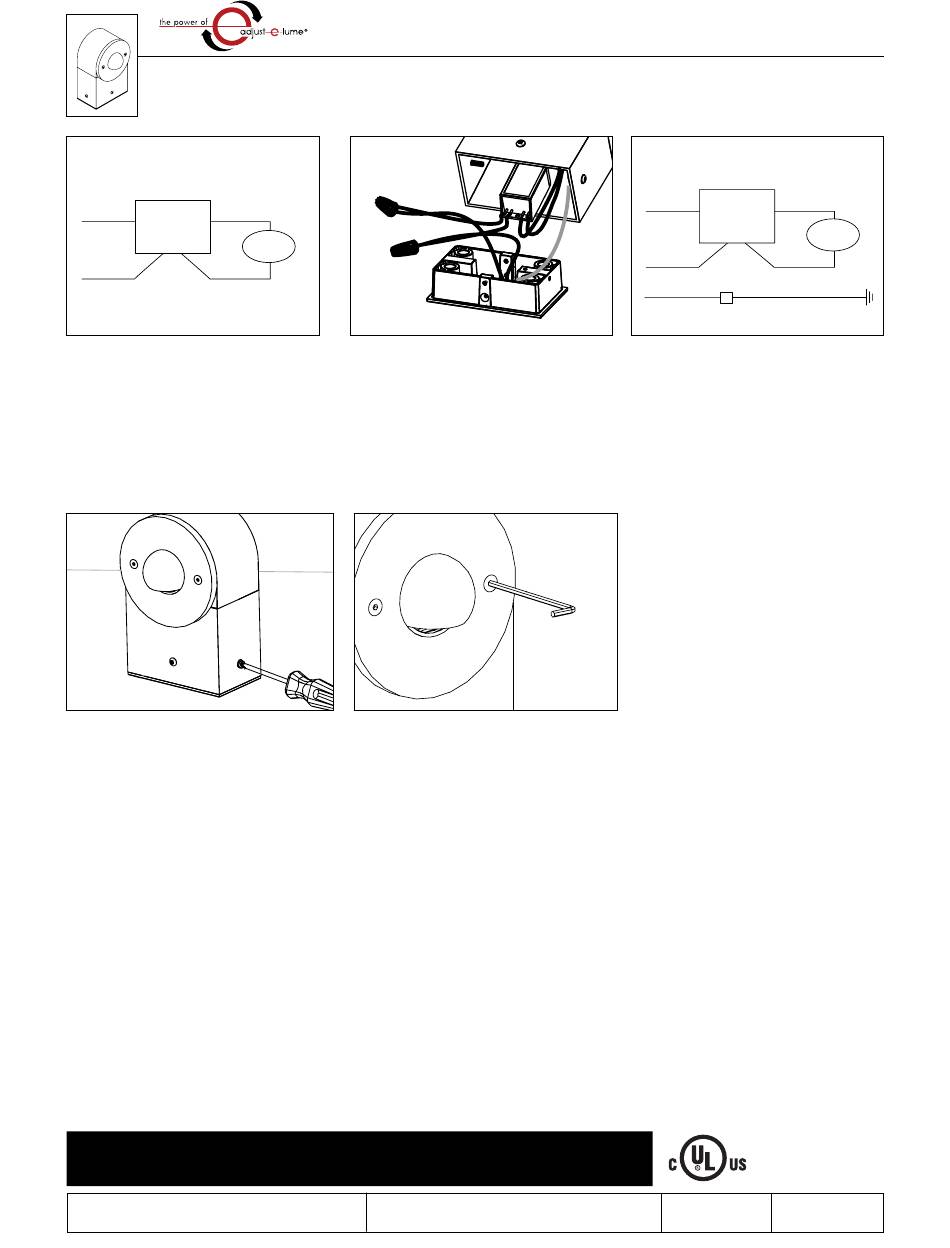

Transformer
COM
5"
(127mm)
WIRING DIAGRAM
120V
Integral
Transformer
90° Angle = B
COM
GROUND
PS-LED
8. Place fixture on anchor base and tighten four (4)
#10-32 stainless steel button head cap screws
using a 1/8" Allen wrench.
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
B-K LIGHTING
& Low Voltage
with
TECHNOLOGY
Integral
Transformer
12V
Fixture
COM
Integral Transformer
12V
7. Pull branch circuit wires necessary for
Fixture
installation (By Others) through Power Pipe™.
Use waterproof wire connectors (By Others) to
COM connect transformer primary leads to branch
circuit wires. Connect incoming ground to
ground wire provided in fixture body. See
GROUND
wiring diagram.
S000733
9. Use 1/8" Allen wrench to loosen #10-24 stainless
faceplate screws to remove faceplate for access
to source.
TECHNOLOGY
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX 559.438.5900
www.bklighting.com • info@bklighting.com
PS™ / PSL™
120V 12V
Remote
Transformer
COM COM
120V 12V
Integral
Transformer
COM COM
GROUND GROUND
WIRING DIAGRAM
RELEASE DATE REFERENCE NUMBER
5-23-18 INS000733.1
Fixture
Fixture
