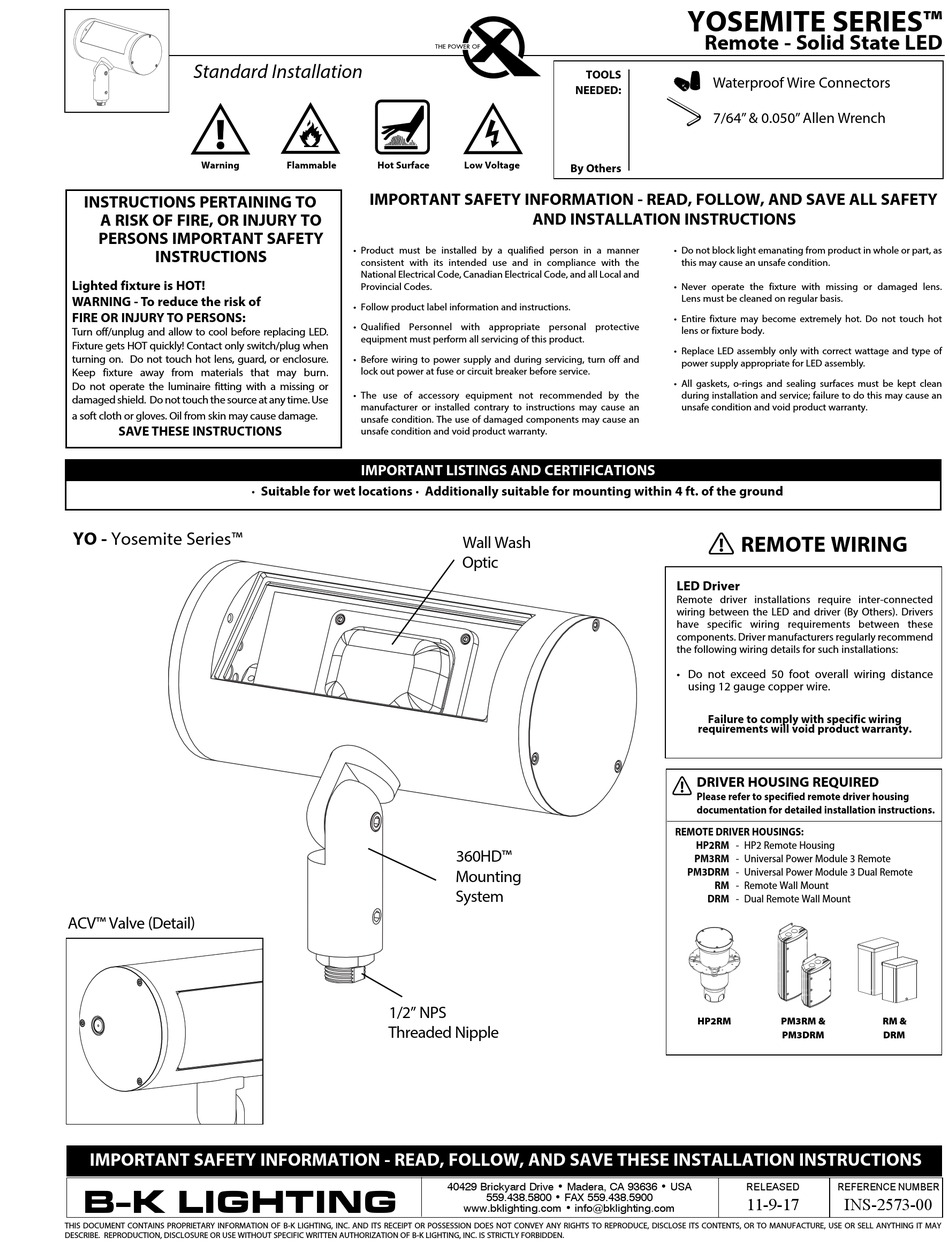

B-K lighting HP2RM Installation Instructions Manual

Standard Installation
Warning
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted fixture is HOT!
WARNING - To reduce the risk of
FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing LED.
Fixture gets HOT quickly! Contact only switch/plug when
turning on. Do not touch hot lens, guard, or enclosure.
Keep fixture away from materials that may burn.
Do not operate the luminaire fitting with a missing or
damaged shield. Do not touch the source at any time. Use
a soft cloth or gloves. Oil from skin may cause damage.
SAVE THESE INSTRUCTIONS

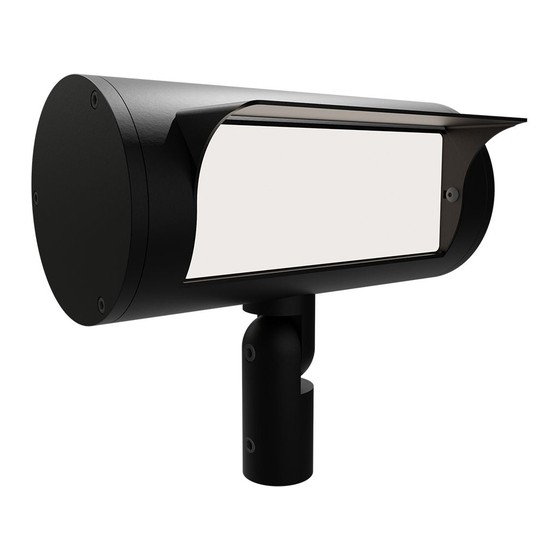

YO - Yosemite Series™
PM2RM PM2DRM
ACV™ Valve (Detail)
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
Flammable Hot Surface
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local and
Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel with appropriate personal protective
equipment must perform all servicing of this product.
• Before wiring to power supply and during servicing, turn off and
lock out power at fuse or circuit breaker before service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause an
unsafe condition and void product warranty.
IMPORTANT LISTINGS AND CERTIFICATIONS
· Suitable for wet locations · Additionally suitable for mounting within 4 ft. of the ground
1/2" NPS
Threaded Nipple
TOOLS
NEEDED:
Low Voltage
By Others
AND INSTALLATION INSTRUCTIONS
Wall Wash
Optic
360HD™
Mounting
System
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX 559.438.5900
www.bklighting.com • info@bklighting.com
YOSEMITE SERIES™
Remote - Solid State LED
Waterproof Wire Connectors
7/64" & 0.050" Allen Wrench
• Do not block light emanating from product in whole or part, as
this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body.
• Replace LED assembly only with correct wattage and type of
power supply appropriate for LED assembly.
• All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
REMOTE WIRING
LED Driver
Remote driver installations require inter-connected
wiring between the LED and driver (By Others). Drivers
have specific wiring requirements between these
components. Driver manufacturers regularly recommend
the following wiring details for such installations:
• Do not exceed 50 foot overall wiring distance
using 12 gauge copper wire.
Failure to comply with specific wiring
requirements will void product warranty.
DRIVER HOUSING REQUIRED
Please refer to specified remote driver housing
documentation for detailed installation instructions.
REMOTE DRIVER HOUSINGS:
PM3RM PM3DRM
HP2RM - HP2 Remote Housing
PM3RM - Universal Power Module 3 Remote
PM3DRM - Universal Power Module 3 Dual Remote
RM - Remote Wall Mount
DRM - Dual Remote Wall Mount
HP2RM PM3RM &
PM3DRM
RELEASED REFERENCE NUMBER
11-9-17
PM2R P
RM &
DRM
INS-2573-00
