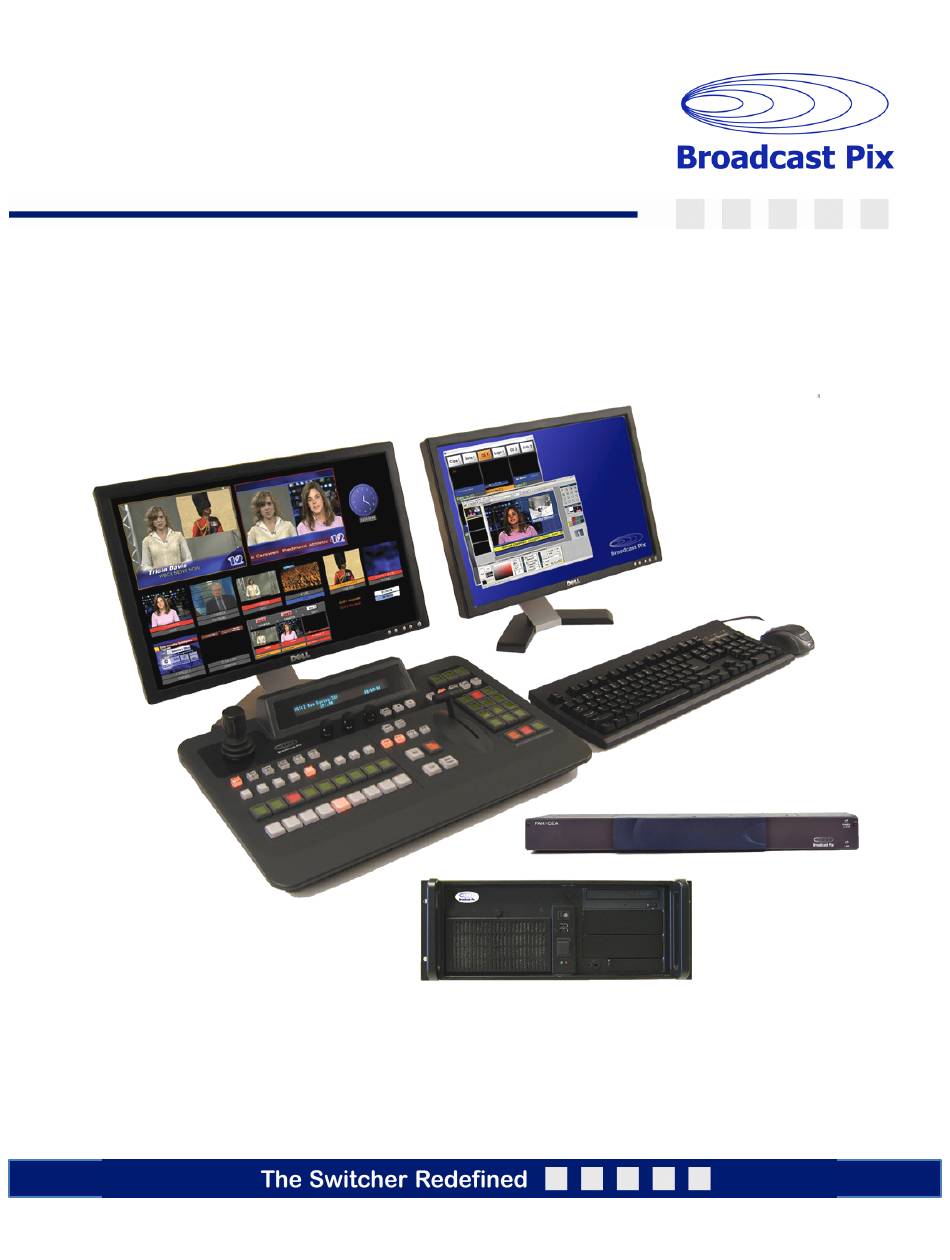

- Page 1 Slate 3000 1 M/E HD & SD Video Switchers Installation Planning Guide Slate is a Live Integrated Production System Page Broadcast Pix Slate 3000 Installation Planning Guide - October 2008...
- Page 2 © 2008 Copyright Broadcast Pix, Inc. Broadcast Pix, Slate, PixButtons, PixPad, AutoAspect, and SoftPanel are trademarks of Broadcast Pix, Inc. Other trademarks are owned by their respective companies. Specifications are subject to change. Page Broadcast Pix Slate 3000 Installation Planning Guide - October 2008...
- Page 3 Audio-Follow-Video Option Sony Camera Control Option (RS-232C) 23. Sony Camera Control Option (RS-422) 24. Hitachi Camera Control 25. Panasonic Camera Control More Options System Delay Slate Specifications Contact Information Page Broadcast Pix Slate 3000 Installation Planning Guide - October 2008...
- Page 4 Introduction The Broadcast Pix™ Slate™ 3000 a live, integrated production system that incorporates a Production Switcher, Multi-View monitoring, Character Generator, Clip Stores, Still Stores, and video router. In addition, it can control external audio mixers, cameras and video servers. Having complete control room functionality allows a single operator to run all aspects of a sophisticated HD or SD production, resulting in a more polished and engaging production.
-
Page 5: Standard Features
Always know what content will appear on air once a button is pushed on a Broadcast Pix Slate system; no other switcher on the market has this functionality. -
Page 6: Multi-Format
Device Controls - Clips - CG - Stills - Logo - Fx - Keyer Program/ - Robotic camera Preview - Server - Mems - Etc. Next Transition 9-18 input buttons Page Broadcast Pix Slate 3000 Installation Planning Guide - October 2008... -

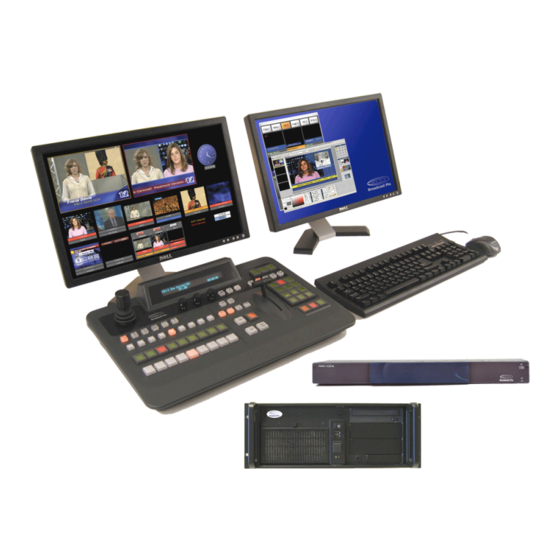

Page 7: System Components
Broadcast Pix Slate 1 M/E Control Panel Broadcast Pix Workstation Broadcast Pix 16x16 Router Broadcast Pix 32x32 Router Page Broadcast Pix Slate 3000 Installation Planning Guide - October 2008... -
Page 8: Control Panel Specifications
RS – 232 Redundant Serial port power supplies for fail-safe 12.5 in Top View Bottom View 31.8 cm 8.5 in 21.6 cm 8.5 in 21.6 cm 12.5 in 31.8 cm Page Broadcast Pix Slate 3000 Installation Planning Guide - October 2008... - Page 9 Provides greater visibility of PixButtons™. Cut-out installation of control panel Rear View 1.9 in 4.8 cm 9.5 in / 23.9 cm 5.36 in 13.6 cm 12.5 in 31.8 cm Cut-out Dimensions Page 9 Broadcast Pix Slate 3000 Installation Planning Guide - October 2008...
-
Page 10: Workstation Specifications
The workstation runs the BPSwitcher application, which is necessary to operate the system with all its features. (Applications from vendors other than Broadcast Pix should not be added to the system, unless approved by Broadcast Pix, or they will hurt system performance and invalidate the warranty.) - Page 11 Mul* House Digital Digital Slate I/O I/O View Network I/O Out View Network I/O I/O Out * HD Models are shown with optional DVI-I input and output board. Page 11 Broadcast Pix Slate 3000 Installation Planning Guide - October 2008...
- Page 12 Mul*‐View DVI In 13 Out 13 In 14 Out 14 Mul*‐View VGA Out 15 In 15 Slot 6 (HD models) Out 16 In 16 DVI Out D DVI In 1 16x16 Router DVI Out E DVI In 4 BP Control 100BASE Keyboard PS 2 Mouse USB Network Hub Slate Worksta,on Straight cat 5 network cable to control panel Page Broadcast Pix Slate 3000 Installation Planning Guide - October 2008...
- Page 13 Out 25 In 26 Out 26 DVI Out E DVI In 4 In 27 Out 27 In 28 Out 28 BP Control 100BASE In 29 Out 29 In 30 Out 30 Keyboard PS 2 In 31 Out 31 Mouse USB In 32 Out 32 Straight network cable to Slate Worksta,on 32x32 Router Network Hub control panel Page Broadcast Pix Slate 3000 Installation Planning Guide - October 2008...
- Page 14 Multiple Slate Systems Unique to the Broadcast Pix Slate 3032 is the option to hook two or more Slate systems to one centralized router to share inputs and outputs. Great for larger facilities where multiple studios/control points are needed, it simplifies wiring by having one access point for all connections and lowers overall cost.
- Page 15 In 4 In 23 Slate 2 Out 23 Slot 3 In 24 Slate 2 Out 24 Out E In 5 In 25 Slate 1 Out 25 In 6 In 26 Slate 1 Out 26 In 7 In 27 Slate 1 Out 27 In 8 In 28 Slate 1 Out 28 Slate 2 Worksta,on In 29 Slate 1 Out 29 In 30 Slate 1Out 30 In 31 Slate 1 Out 31 In 32 Slate 1 Out 32 32x32 Router Page Broadcast Pix Slate 3000 Installation Planning Guide - October 2008...
- Page 16 Not only do you know that a clip channel is on air, you know exactly what clip is on air and how much time is left on that clip. The Broadcast Pix Slate system takes file inputs a step further displaying the actual file name on the control panel.
- Page 17 While aspect treatment of inputs is standard on all Slate systems, you can also simultaneously output 16:9 and 4:3 versions of the same 16:9 show with a Slate 3016hh or 3032hh system. 16:9 output Slate 3000hh 4:3 output Page Broadcast Pix Slate 3000 Installation Planning Guide - October 2008...
- Page 18 The Slate system is highly scalable, and can easily accommodate multiple users. A common setup up for a Broadcast Pix studio is a technical director, switching and calling the camera shots plus a second operator changing graphics and clips as needed. Both users are controlling the same Broadcast Pix workstation, the technical director with the 1 M/E control panel, and the graphics operator with a keyboard, mouse and dedicated graphics monitor.
- Page 19 The Broadcast Pix Multi-View is intended for a director/producer to verify camera shots, input signals and overall composition. It is not, however, meant to monitor signal quality. For the highest quality monitoring, and fail-safe monitoring, we recommend to connect a ‘glass’...
- Page 20 DMS connector is monitor output 1 and 3 and the bottom DMS connector is monitor output 2 and 4. Optional Quad Monitor Card Wall Monitors for Producers/Directors Primary Monitor for CG Technical Director Monitor Page Broadcast Pix Slate 3000 Installation Planning Guide - October 2008...
- Page 21 This option does not have to replace an audio operator, it can assist them. For example, when a clip from the internal Broadcast Pix clip store plays on air, it can automatically turn on the sliders for the clip store audio on the mixer, and when it goes off air the sliders turn off.
- Page 22 Sony BRC-300, BRCH-700, EVI-HD1 and many others. The Broadcast Pix software can control up to 9 cameras, with 6 presets each, directly from the 1 M/E control panel. It uses the joystick to pan/tilt/zoom and knobs in the Device Control to adjust focus, iris and other settings.
- Page 23 RXD (B) + TXD (B) + RXD (A) - RXD (A) - TXD (B)+ RXD (A) - TXD (B) + TXD (A) - RXD (B) + TXD (A) - Page Broadcast Pix Slate 3000 Installation Planning Guide - October 2008...
-
Page 24: Power Supply
Hitachi Camera Control Option #801 (RS-485) The Broadcast Pix Slate system can also control larger box-style cameras with the Hitachi camera control through the Eagle Pan/Tilt heads and protocol. Up to 9 Cameras, with 32 presets each, are connected to the workstation using a serial RS-485 connection, which has a maximum length of 1,200 meters (4,000 feet). - Page 25 Panasonic Camera Control Option #802 (RS-422) Additionally the Broadcast Pix system can control a wide-range of Panasonic cameras, including the AW-HE100, AW-PH400 and other Panasonic pan-tilt camera control systems. This software option can control up to 12 different robotic cameras, each of which may have up to 100 presets.
-
Page 26: More Options
This option also supports up to 8 GPIOs, useful when needing to trigger memory scripts in the Broadcast Pix system from an external device. - Page 27 It inserts text and images into Inscriber layouts through RTX Tag fields and then updates and displays them on the Broadcast Pix Switcher. The text and images can be updated manually or automatically from XML data sources. This is an ideal option for sports production, where data is constantly changing, or for using as a simplified graphics station in a news or government production where a long list of names exist, and do not need to be re-keyed.
-
Page 28: System Delay
** Presentation Mode is using only 720p genlocked cameras coming in and going out a progressive format to a progressive projector. When activated the SD outs will be out of phase and delayed by 90 lines. Page Broadcast Pix Slate 3000 Installation Planning Guide - October 2008... -
Page 29: Slate Specifications
Type of connector DMS-59, breakout cables to DVI-I included with VGA adaptors 1 input & 1 output/card. 2 cards max per system Number of inputs/outputs Only available on High Definition systems. Page Broadcast Pix Slate 3000 Installation Planning Guide - October 2008... -
Page 30: Analog Output
Balanced line level analog Format Type of connector Number of inputs 1 channel Stereo (Left/Right), for clip ingest Number of outputs 2 channel Stereo (Left/Right), for clip playout Page 30 Broadcast Pix Slate 3000 Installation Planning Guide - October 2008... -
Page 31: Router Specifications
500 watts 1 M/E Control Panel Specifications 15.5x31x8 inches / 39x79x20 centimeters Dimensions Weight 21.8 Lbs / 9.9 Kg Power (1) 50 watt power supply (redundant one optional) Page 31 Broadcast Pix Slate 3000 Installation Planning Guide - October 2008... -
Page 32: Contact Information
Western US and Canada - San Francisco, CA +1-415-450-8388 South American Regions: Latin America - San Francisco, CA +1-415-310-2646 Europe, Africa, Middle East and India: Zijdstraat 72 1431 Aalsmeer The Netherlands +31-297-385940 Page Broadcast Pix Slate 3000 Installation Planning Guide - October 2008...
