4. Thermal sensor connector (2-pin T_SENSOR)
This connector is for the thermistor cable that monitors the temperature of the devices
and the critical components inside the motherboard.

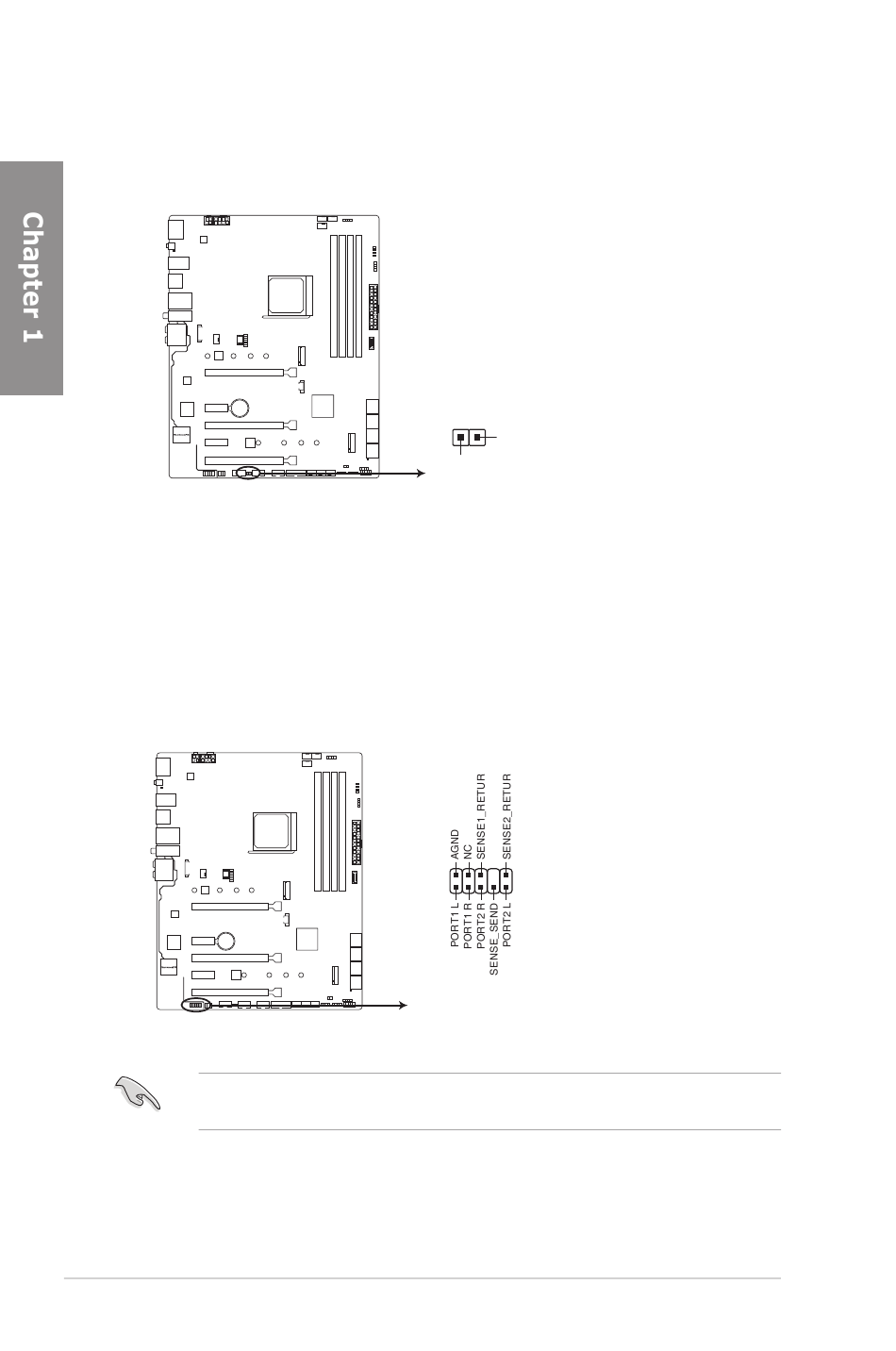

ROG STRIX X570-F GAMING T_SENSOR connector
1.1.8

Internal connectors

1. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that supports HD
Audio. Connect one end of the front panel audio I/O module cable to this connector.
ROG STRIX X570-F GAMING Analog front panel connector
We recommend that you connect a high-definition front panel audio module to this
connector to avail of the motherboard's high-definition audio capability.
1-12
STRIX X570-f GAMING
AAFP
STRIX X570-f GAMING
T_SENSOR
GND
PIN 1
SENSOR IN
HD-audio-compliant
pin definition
Chapter 1: Product Introduction
