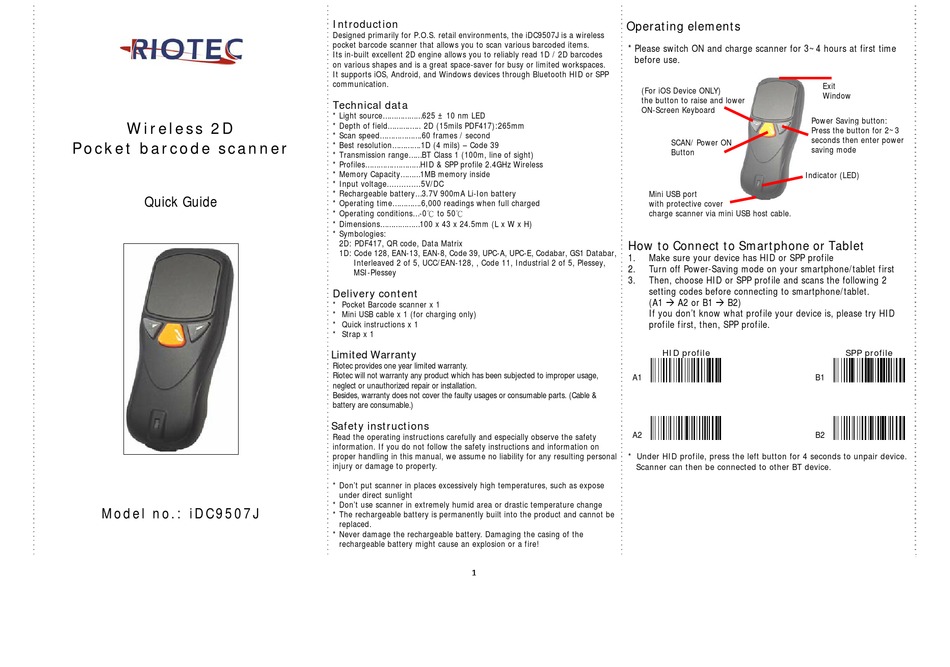

RIOTEC iDC9507J Quick Manual

W i r e l e s s 2 D
P o c k e t b a r c o d e s c a n n e r
Quick Guide
M o d e l n o . : i D C 9 5 0 7 J
Introduction
Designed primarily for P.O.S. retail environments, the iDC9507J is a wireless
pocket barcode scanner that allows you to scan various barcoded items.
Its in-built excellent 2D engine allows you to reliably read 1D / 2D barcodes
on various shapes and is a great space-saver for busy or limited workspaces.
It supports iOS, Android, and Windows devices through Bluetooth HID or SPP
communication.

Technical data

* Light source..................625 ± 10 nm LED
* Depth of field............... 2D (15mils PDF417):265mm
* Scan speed...................60 frames / second
* Best resolution.............1D (4 mils) – Code 39
* Transmission range......BT Class 1 (100m, line of sight)
* Profiles.........................HID & SPP profile 2.4GHz Wireless
* Memory Capacity.........1MB memory inside
* Input voltage..............5V/DC
* Rechargeable battery...3.7V 900mA Li-Ion battery
* Operating time.............6,000 readings when full charged
* Operating conditions...-0℃ to 50℃
* Dimensions..................100 x 43 x 24.5mm (L x W x H)
* Symbologies:
2D: PDF417, QR code, Data Matrix
1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, GS1 Databar,
Interleaved 2 of 5, UCC/EAN-128, , Code 11, Industrial 2 of 5, Plessey,
MSI-Plessey
Delivery content
* Pocket Barcode scanner x 1
* Mini USB cable x 1 (for charging only)
* Quick instructions x 1
* Strap x 1
Limited Warranty
Riotec provides one year limited warranty.
Riotec will not warranty any product which has been subjected to improper usage,
neglect or unauthorized repair or installation.
Besides, warranty does not cover the faulty usages or consumable parts. (Cable &
battery are consumable.)

Safety instructions

Read the operating instructions carefully and especially observe the safety
information. If you do not follow the safety instructions and information on
proper handling in this manual, we assume no liability for any resulting personal
injury or damage to property.
* Don't put scanner in places excessively high temperatures, such as expose
under direct sunlight
* Don't use scanner in extremely humid area or drastic temperature change
* The rechargeable battery is permanently built into the product and cannot be
replaced.
* Never damage the rechargeable battery. Damaging the casing of the
rechargeable battery might cause an explosion or a fire!
1
Operating elements
* Please switch ON and charge scanner for 3~4 hours at first time
before use.
(For iOS Device ONLY)
the button to raise and lower
ON-Screen Keyboard
SCAN/ Power ON
Button
Indicator (LED)
Mini USB port
with protective cover
charge scanner via mini USB host cable.
How to Connect to Smartphone or Tablet
1. Make sure your device has HID or SPP profile
2. Turn off Power-Saving mode on your smartphone/tablet first
3. Then, choose HID or SPP profile and scans the following 2
setting codes before connecting to smartphone/tablet.
(A1  A2 or B1  B2)
If you don't know what profile your device is, please try HID
profile first, then, SPP profile.
HID profile
A1
A2
* Under HID profile, press the left button for 4 seconds to unpair device.
Scanner can then be connected to other BT device.
Exit
Window
Power Saving button:
Press the button for 2~3
seconds then enter power
saving mode
SPP profile
B1
B2
