Graf AquaControl + User Information page 2

Fill level measuring device and drinking water supply
Hide thumbs Also See for AquaControl +:

Advertisement

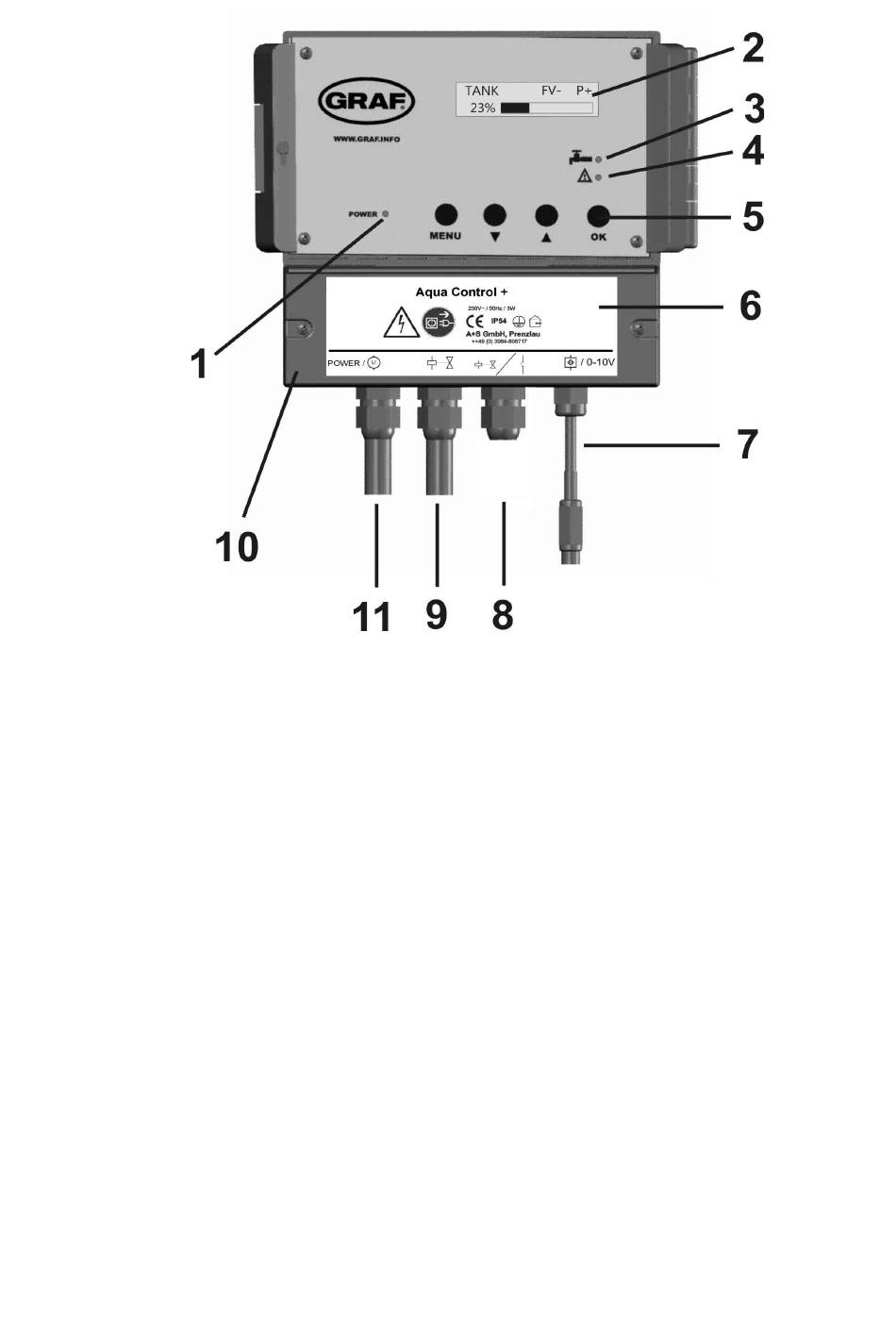

Figure 1: View of equipment
1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
LED for power supply display
Display
LED for drinking water operation
LED for faults and malfunction
Operating buttons
Lower cover of the System Control
Main connection cable with coupling for data lead and
outlet (0-10V)
Alarm indicator contact and valve connection for filter cleaning
the rainwater filter
Valve connection with power coupling
The mains circuit breaker of the system controls are under this
cover.
Mains power supply cable and pump connection with power
coupling
