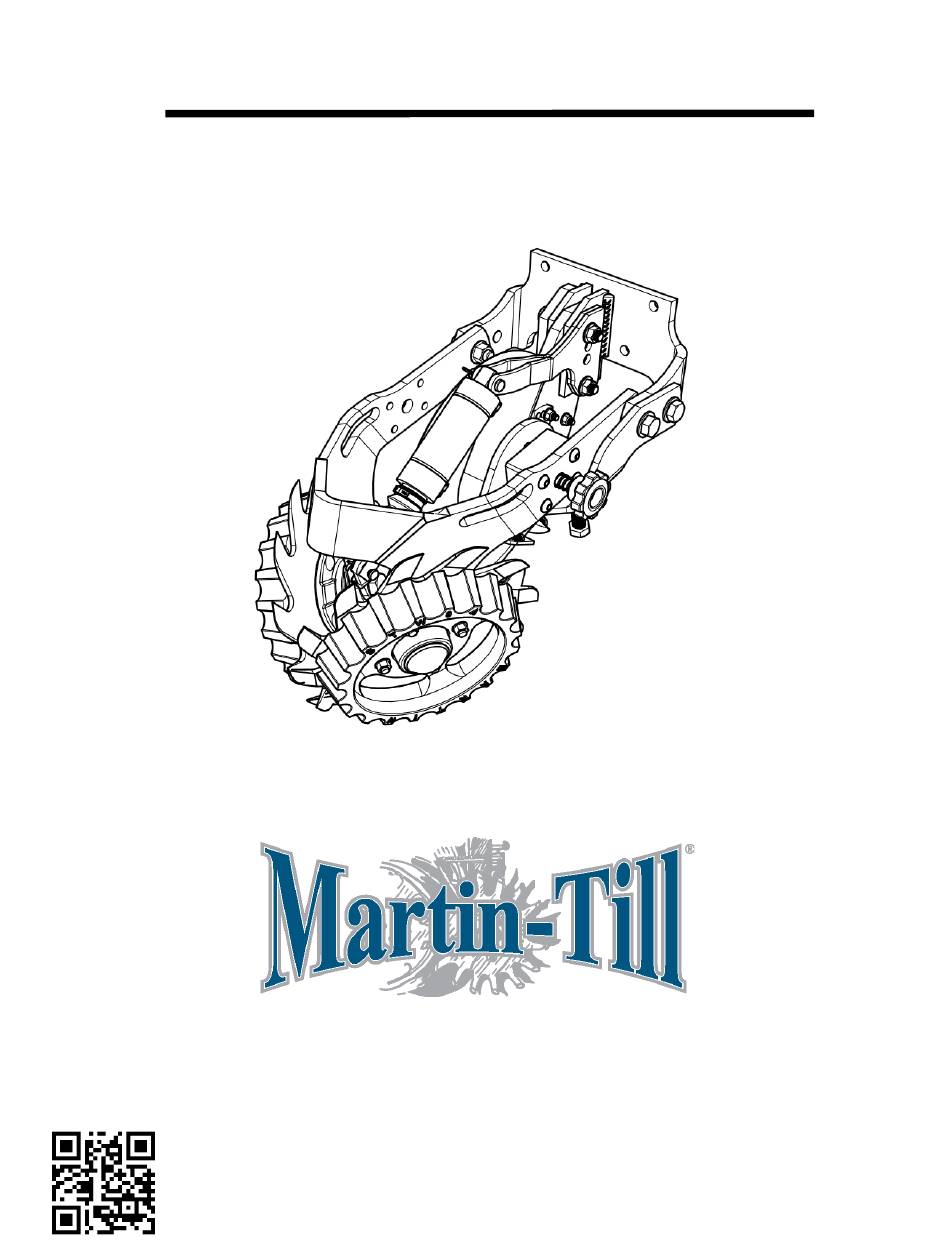

Martin-Till UMO-WA1360 Installation Instructions Manual

Applies to all 1360 row cleaner with unit mounted fertilizer opener

Advertisement

Quick Links

UMO-WA1360
APPLIES TO ALL 1360 ROW CLEANER WITH UNIT MOUNTED FERTILIZER OPENER
INSTALLATION INSTRUCTIONS
SHOWN WITH DS MOUNT AND OPTIONAL SMARTCLEAN CYLINDER
AND BRACKETS, RAZOR WHEEL(RTW1412.5) , SIDE TREADER WHEELS
STW-04 )
(CA03-D)
(
& CAM ADJUST
Martin Planter Attachments
Martin Industries LLC
206 Elk Fork Road
Elkton, KY 42220
Telephone: 270-265-5817
E-Mail: martin@martintill.com
www.martintill.com
VERSION 02 15 2018

Advertisement

loading
Need help?

Need help?

Do you have a question about the UMO-WA1360 and is the answer not in the manual?

Questions and answers

Summary of Contents for Martin-Till UMO-WA1360

  • Page 1 UMO-WA1360 APPLIES TO ALL 1360 ROW CLEANER WITH UNIT MOUNTED FERTILIZER OPENER INSTALLATION INSTRUCTIONS SHOWN WITH DS MOUNT AND OPTIONAL SMARTCLEAN CYLINDER AND BRACKETS, RAZOR WHEEL(RTW1412.5) , SIDE TREADER WHEELS STW-04 ) (CA03-D) & CAM ADJUST Martin Planter Attachments Martin Industries LLC...
  • Page 2 Shown STEP 2 : DETERMINE DESIRED FERTILIZER PLACEMENT The Martin-Till Unit Mounted Fertilizer Opener (UMO — 100) allows you to place fertilizer in three different horizontal (offset), and three different vertical (depth), distances from the seed. The options on STEP 2A determine the vertical distance from the seed (depth).
  • Page 3 Position A 3/4” above seed depth Position B Even with seed depth (Recommended) Position C 3/4” below seed depth...
  • Page 4 STEP 2B: UMO — 100 OFFSET SETTING OPTION Three different offset settings are shown in the pictures. The UMO can be installed to the right side (Offset 1” from seed furrow), in between (Offset 2” from seed furrow), or to the left side (Offset 3” from seed furrow) of the mount flanges.
  • Page 5 STEP 2C: FURROW CONTROL LEVER GROUND PRESSURE ADJUSTMENT SETTING #1: This configuration provides maximum ground pressure. SETTING #2: This configuration provides medium ground pressure. SETTING #3: This configuration provides the least ground pressure. NOTE: This is the default and recom- mended position.
  • Page 6 STEP 3 : ATTACH UMO-100 TO THE MOUNT After selecting the desired depth and offset settings, attach the UMO-100 to the mount using two 1/2” X 3” flange bolts, and Flange locknuts, provided for you. If you purchased the optional SmartCean System, you will install the SmartClean cylinder top brackets on the side of the mount flanges.
  • Page 7 STEP 4 : ATTACH 1360 FRAME ASSEMBLY TO THE MOUNT Stop arm installation, as shown in the picture, is for the right UMO configuration . For a left IMPORTANT: UMO configuration, install the right stop arm (STARM1360-5-8R) on the opposite side. 1.
  • Page 8 STEP 5 : INSTALLING THE OPTIONAL CAM ADJUSTMENT ASSEMBLY This step is unnecessary if using the standard threaded adjustment bolt (see page 7) IMPORTANT: The cam installation shown in the picture is for the right UMO configuration. For a left UMO configuration, install the same cam assembly with the cam pointing forward on the oppo- site side.
  • Page 9 STEP 6 : DETERMINE THE BEST WHEEL CONFIGURATION FOR YOUR SOIL CONDITIONS OPTION A: INTERSECTED (Both wheels in front hole) Both wheels forward provides maximum cleaning effect. The interlocked wheels till the middle of the seed row. OPTION B: OFFSET (Left wheel in front hole and right wheel in rear hole) The staggered configuration allows the wheels to turn more easily in loose soil.
  • Page 10 STEP 7: INSTALL SMART CLEAN CYLINDER BOTTOM ANCHOR IMPORTANT: Skip to Step 8 if optional SmartClean System was not purchased If the optional SmartClean cylinder was purchased, install the SmartClean cylinder bottom anchor, before in- stalling the wheels, as shown below. Proper location of the bottom anchor mounting bolts is determined by the wheel configuration you’ve chosen from page 9.
  • Page 11 STEP 8: INSTALL WHEEL ASSEMBLIES IMPORTANT: Skip to Step 8C if not using optional D-Lock Deflector (Scraper) NOTE: The D-Lock Deflector (Scraper) is recommended (in place of the standard D-Lock) when operating in wetter conditions, or damp stringy residue, to reduce wrapping. NOTE: Either the D-Lock deflector (illustrated below and on next page) or the D-Lock (illustrated on page 13) must be installed to allow the 5/8”...
  • Page 12 STEP 8: INSTALL WHEEL ASSEMBLIES (CONT.) IMPORTANT: Skip to Step 8C if not using optional D-Lock Deflector (Scraper) STEP 8B: INSTALL WHEEL ASSEMBLIES USING OPTIONAL D-LOCK DEFLEC- TOR (SCRAPER) 1) Attach the D-lock deflector (DLD-02L) to the end of the hub axle, making sure it is flush with the end of the axle, before bolting the axle to the frame.
  • Page 13 STEP 8: INSTALL WHEEL ASSEMBLIS (CONT.) STEP 8C: INSTALL WHEEL ASSEMBLIES USING STANDARD D-LOCK 1. Attach the D-lock to the end of the hub axle making sure it is flush with the end of the axle be- fore bolting the axle to the frame. 2.
  • Page 14 STEP 9 : INSTALL THE OPTIONAL SMART CLEAN CYLINDER Install the SmartClean cylinder between the top and bottom brackets. Use pins as shown in the pic- ture below. NOTE: Cylinder may be installed with elbow valves in either up or down orientation, depending on user preference.
  • Page 15: Maintenance Tips

    MAINTENANCE TIPS 1360 Row Cleaner Hub Preventative Maintenance The 1360 Row Cleaner hub is designed to be “flushed out” with lubrication, without damaging the triple lip seal. To “flush” the hub, lubricate until fresh grease is visible around the seal. In most conditions annual lubrication of the 1360 Row Cleaner hub is sufficient •...
  • Page 17 PARTS LIST FOR UMO-100 UMO — 100R shown, UMO — 100L (not shown) is the opposite side (UMO-12) SPACER BAR (N12FLN) 1/2” NUT 5/16” X 1 1/2” FLANGE BOLTS (B5F516NC112) UMO BEAM (UMO-MSB01R) 1/2” X 3” FLANGE BOLT (B8F12NC3) 5/16” FLANGE NUT (N516FLN) (N516FLN) 5/16”...
  • Page 20 The most trusted name in no-till Established 1991 Martin Industries LLC 206 Elk Fork Road Elkton, KY 42220 Telephone: 270-265-5817 E-Mail: martin@martintill.com...
