BD
1345 ROW CLEANER
BK
BCIH
INSTALLATION INSTRUCTIONS

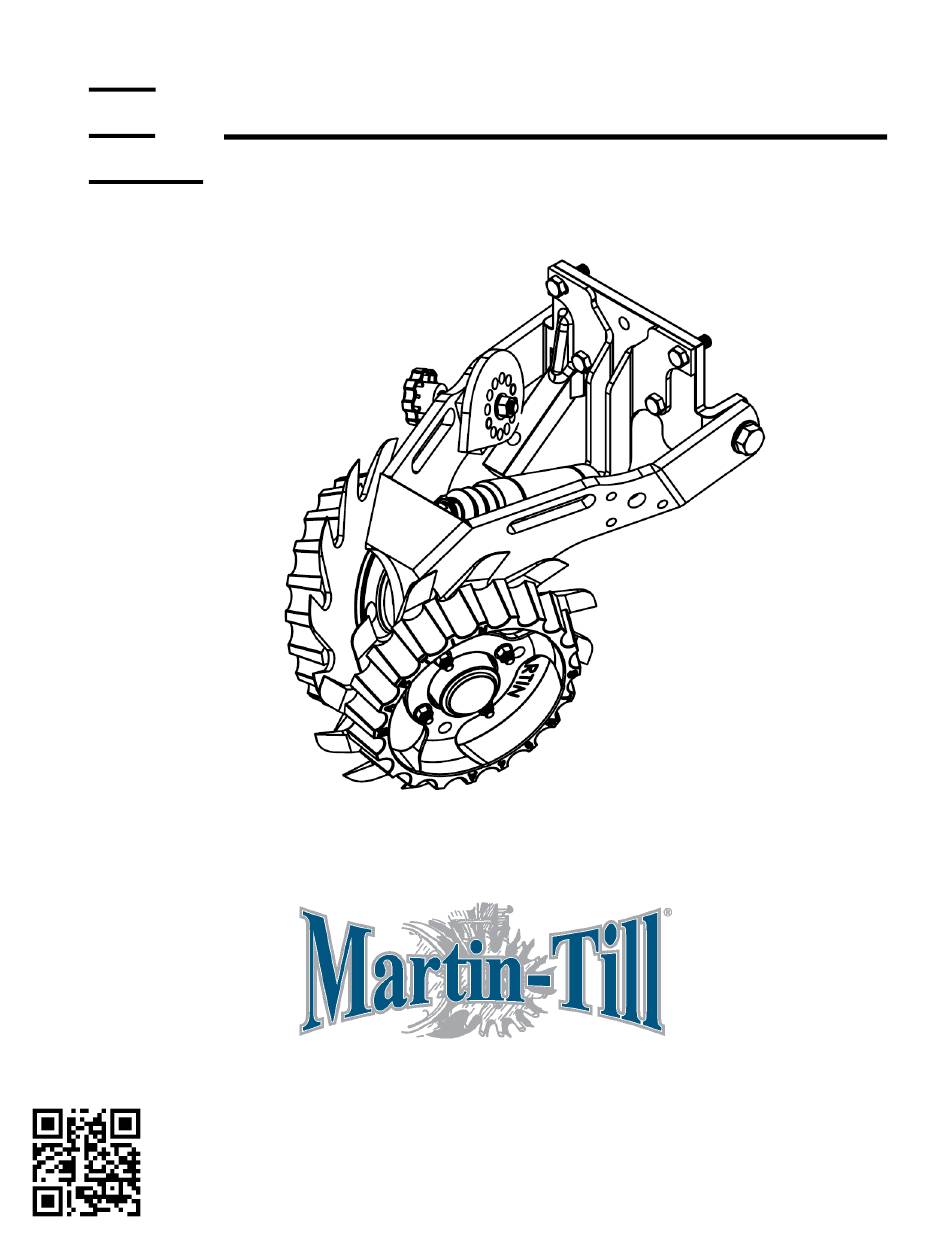

SHOWN WITH BD MOUNT AND OPTIONAL SMARTCLEAN CYLINDER
AND BRACKETS, RAZOR WHEEL(RTW1412.5) , SIDE TREADER WHEELS
STW-04 )
(CA03-D)
(
& CAM ADJUST
Martin Industries LLC
206 Elk Fork Road
Elkton, KY 42220
Telephone: 270-265-5817
E-Mail: martin@martintill.com
www.martintill.com
VERSION 01/30/2019
Advertisement
Related Manuals for Martin-Till BD1345
Summary of Contents for Martin-Till BD1345
- Page 1 1345 ROW CLEANER BCIH INSTALLATION INSTRUCTIONS SHOWN WITH BD MOUNT AND OPTIONAL SMARTCLEAN CYLINDER AND BRACKETS, RAZOR WHEEL(RTW1412.5) , SIDE TREADER WHEELS STW-04 ) (CA03-D) & CAM ADJUST Martin Industries LLC 206 Elk Fork Road Elkton, KY 42220 Telephone: 270-265-5817 E-Mail: martin@martintill.com www.martintill.com VERSION 01/30/2019...
- Page 2 You have received 1/4” longer bolts in this case. Some of the SmartClean bracket sets are shown below . Use the instructions in Step 4 to install the bottom brackets. SC-BKW1345 SC-BD1345...
- Page 3 FOR CASEIH 1200 SERIES PLANTERS (BCIH 1360) Attach the Right and Left L shape brackets ( CIH1360R & CIH1360L) to the planter using provided two 1/2” X 3 1/2” Grade 8 bolts and nuts as shown in the right picture. Torque to 80 ft-lbs. Using four 1/2”...
- Page 4 STEP 3 : INSTALL THREADED ADJUSTMENT ASSEMBLY 1. Place the adjustment assembly against the frame as shown in diagram below. 2. Secure the adjustment assembly to the frame using the three button head screws and nuts provided. 3. Put the 1/2” nut on the 1/2” x 4” bolt and thread the bolt into the tapped hole of the adjustment assembly.
- Page 5 STEP 4 : INSTALL OPTIONAL CAM ADJUSTMENT ASSEMBLY Mount the cam block to the frame using the three 3/8” button head bolts. 2. Slide the 1/2” x 4” bolt through the knob, spring, and support block and thread it into the cam. 3.
- Page 6 STEP 5 : DETERMINE THE BEST WHEEL CONFIGURATION FOR YOUR SOIL CONDITIONS OPTION A: INTERSECTED (Both wheels in front hole) Both wheels forward provides maximum cleaning effect. The interlocked wheels till the middle of the seed row. OPTION B: OFFSET (Left wheel in front hole and right wheel in rear hole) The staggered configuration allows the wheels to turn more easily in loose soil.
- Page 7 STEP 6: INSTALL WHEEL ASSEMBLIES 1) Secure the hub to the frame with the 5/8” X 3” flange bolt, washer and nut. Using a torque- wrench, tighten to 116 ft-lbs. Install the dust cap. 2) Install the wheel (part # to the outside) and side treader wheel on the hub, using the four car- riage bolts and flange nuts.
- Page 8 STEP 7: INSTALL OPTIONAL DEFLECTOR (SCRAPER) NOTE: The Deflector (Scraper) is recommended when operating in wetter conditions, or damp stringy residue, to reduce wrapping. NOTE: The Deflector (Scraper) comes in pair of left and right for left and right wheels. Intersected Configuration ( Wheel in front hole) 1) Place the deflector (Scraper) on the back of the assembled wheel unit (previously assembled in step 6) as shown here and pass the flange bolt (BFS0156) through the wheel assembly and the...
- Page 9 Offset Configuration ( Wheel in rear hole) 1) Place the deflector (scraper)on the back of the assembled wheel unit (previously assembled in step 6) as shown here and pass the flange bolt (BFS0156) through the wheel assembly and the deflector using the rear hole in the frame unit and attach the flange nut (NFSL007) hand tighten and locate the deflector (scraper) as shown and torque the flange bolt (BFS0156) to 116 ft-lbs being careful not to allow the deflector to rotate during bolt tightening.
- Page 10 STEP 7 : INSTALL THE OPTIONAL SMARTCLEAN CYLINDER Install the SmartClean cylinder between the top and bottom brackets. Use thicker (7/16 ” ) Pin on the top brackets and thinner (3/8”) pin on the bottom bracket as shown in the picture below. NOTE: Cylinder may be installed with elbow valves in either up or down orientation, depending on user preference.
- Page 11 PARTS LIST FOR 1345 HUB ASSEMBLY (CHU44-B2) BEARING RETAINER (BC-01) HUB (HU44-B2) BEARING (5203KMF) DUST CAP (HS1328)
- Page 12 The most trusted name in no-till Established 1991 Martin Industries LLC 206 Elk Fork Road Elkton, KY 42220 Telephone: 270-265-5817 E-Mail: martin@martintill.com...
