UMO-WA1345
APPLIES TO ALL 1345 ROW CLEANER with UNIT MOUNTED FERTILIZER OPENER
INSTALLATION INSTRUCTIONS

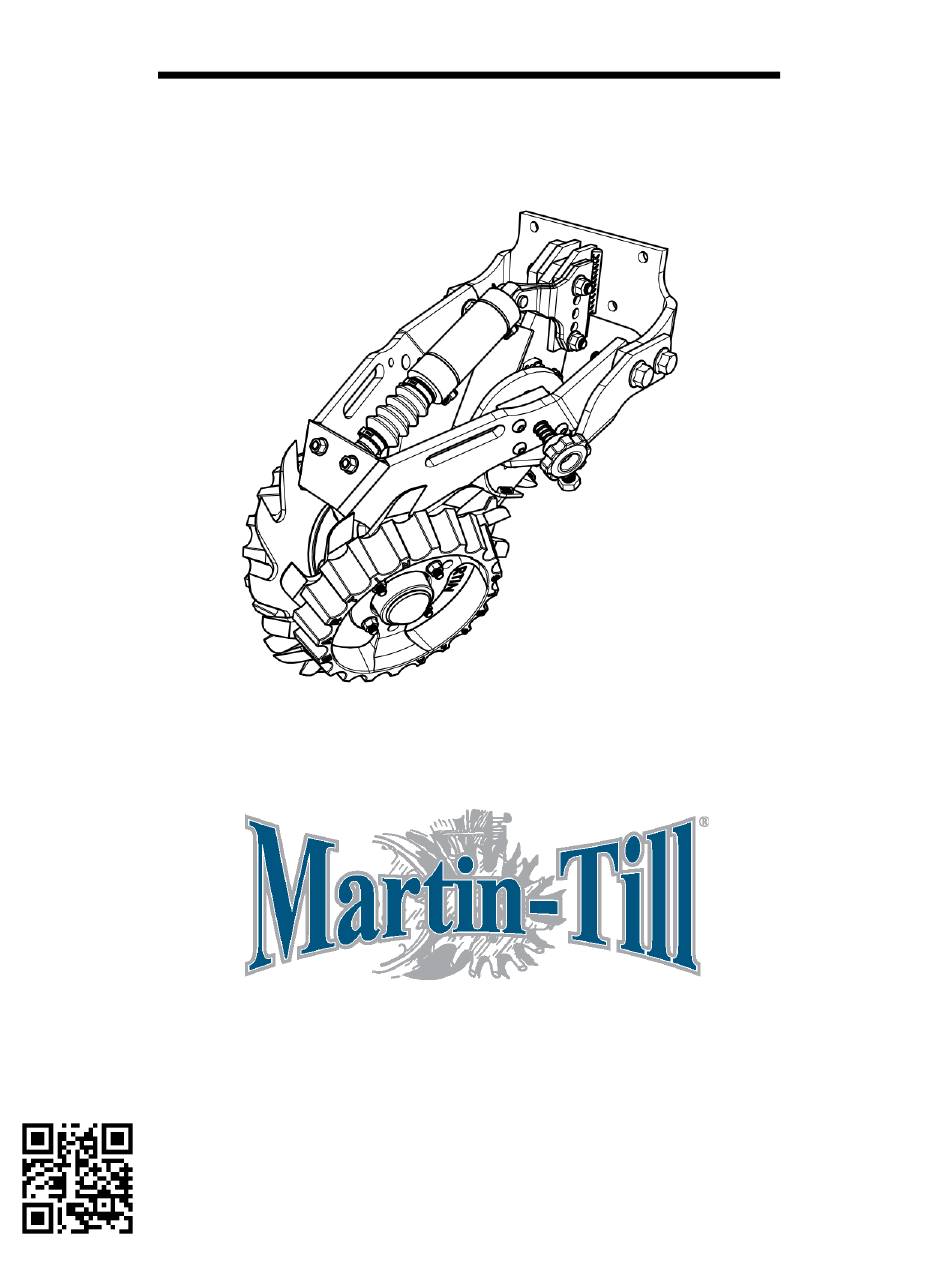

SHOWN WITH DS MOUNT AND OPTIONAL SMARTCLEAN CYLINDER
AND BRACKETS, RAZOR WHEEL(RTW1412.5) , SIDE TREADER WHEELS
STW
04 )
(CA03
1345)
(
-
& CAM ADJUST
-
Martin Planter Attachments
Martin Industries LLC
206 Elk Fork Road
Elkton, KY 42220
Telephone: 270-265-5817
E-Mail: martin@martintill.com
www.martintill.com
VERSION 01 17 2019
Advertisement
Related Manuals for Martin-Till UMO-WA1345
Summary of Contents for Martin-Till UMO-WA1345
- Page 1 UMO-WA1345 APPLIES TO ALL 1345 ROW CLEANER with UNIT MOUNTED FERTILIZER OPENER INSTALLATION INSTRUCTIONS SHOWN WITH DS MOUNT AND OPTIONAL SMARTCLEAN CYLINDER AND BRACKETS, RAZOR WHEEL(RTW1412.5) , SIDE TREADER WHEELS 04 ) (CA03 1345) & CAM ADJUST Martin Planter Attachments...
- Page 2 Shown STEP 2 : DETERMINE DESIRED FERTILIZER PLACEMENT The Martin-Till Unit Mounted Fertilizer Opener (UMO — 100) allows you to place fertilizer in three different horizontal (offset), and three different vertical (depth), distances from the seed . The options on STEP 2A determine the vertical distance from the seed (depth).
- Page 3 Position A 3/4” above seed depth Position B Even with seed depth (Recommended) Position C 3/4” below seed depth...
- Page 4 STEP 2B: UMO — 100 OFFSET SETTING OPTION Three different offset settings are shown in the pictures. The UMO can be installed to the right side (Offset 1” from seed furrow), in between (Offset 2” from seed furrow), or to the left side (Offset 3” from seed furrow) of the mount flanges.
- Page 5 STEP 2C: FURROW CONTROL LEVER GROUND PRESSURE ADJUSTMENT SETTING #1: This configuration provides maximum ground pressure. SETTING #2: This configuration provides medium ground pressure. SETTING #3: This configuration provides the least ground pressure. NOTE: This is the default and recom- mended position.
- Page 6 STEP 3 : ATTACH UMO-100 TO THE MOUNT After selecting the desired depth and offset settings, attach the UMO-100 to the mount using two 1/2” X 3” flange bolts, and Flange locknuts, provided for you. If you purchased the optional SmartCean System, you will install the SmartClean cylinder top brackets on the side of the mount flanges.
- Page 7 STEP 4 : ATTACH 1345 FRAME ASSEMBLY TO THE MOUNT Stop arm installation, as shown in the picture, is for the right UMO configuration . For a left IMPORTANT: UMO configuration, install the right stop arm (STARM1360-5-8R) on the opposite side. 1.
- Page 8 INSTALL OPTIONAL CAM ADJUSTMENT ASSEMBLY Mount the cam block to the frame using the three 3/8” button head bolts. 2. Slide the 1/2” x 3 1/2” bolt through the knob, spring, and support block and thread it into the cam. 3.
- Page 9 STEP 5 : DETERMINE THE BEST WHEEL CONFIGURATION FOR YOUR SOIL CONDITIONS OPTION A: INTERSECTED (Both wheels in front hole) Both wheels forward provides maximum cleaning effect. The interlocked wheels till the middle of the seed row. OPTION B: OFFSET (Left wheel in front hole and right wheel in rear hole) The staggered configuration allows the toothed wheels to turn more easily in loose soil.
- Page 10 STEP 6: INSTALL WHEEL ASSEMBLIES 1) Assemble the bearing retainer, hub, wheel, and side treader wheel (if used) as shown using the 4 bolts (BCS0123) and flange nuts (NSFL003) Torque the bolts to 23 ft-lbs, and retighten after the first days use 2) Install the assembled wheel unit by passing the flange bolt (BFS0156) through the bearing center and washer (WN0064) and attach to the frame using the flange nut (NSFL007), tighten to 116 ft- lbs.
- Page 11 STEP 7: INSTALL OPTIONAL DEFLECTOR (SCRAPER) NOTE: The Deflector (Scraper) is recommended when operating in wetter conditions, or damp stringy residue, to reduce wrapping. NOTE: The Deflector (Scraper) comes in pairs of left and right for left and right wheels. Intersected Configuration ( Wheel in front hole) 1) Place the deflector (Scraper) on the back of the assembled wheel unit (previously assembled in step 6) as shown here and pass the flange bolt (BFS0156) through the wheel assembly and the...
- Page 12 Offset Configuration ( Wheel in rear hole) 1) Place the deflector (scraper)on the back of the assembled wheel unit (previously assembled in step 6) as shown here and pass the flange bolt (BFS0156) through the wheel assembly and the deflector using the rear hole in the frame unit and attach the flange nut (NFSL007) hand tighten and locate the deflector (scraper) as shown and torque the flange bolt (BFS0156) to 116 ft-lbs being careful not to allow the deflector to rotate during bolt tightening.
- Page 13 STEP 8 : INSTALL THE OPTIONAL SMART CLEAN CYLINDER Install the SmartClean cylinder between the top bracket (LH =SC-CUB-1345-2L / RH =SC-CUB-1345- 2R.) and the integral bottom mount point supplied. Use pins as shown in the picture below. NOTE: Cylinder may be installed with elbow fittings in either up or down orientation, depending on user preference.
- Page 14 PARTS LIST FOR 1345 HUB ASSEMBLY (CHU44-B2) BEARING RETAINER (BC-01) HUB (HU44-B2) BEARING (5203KMF) DUST CAP (HS1328)
- Page 15 PARTS LIST FOR UMO-100 UMO — 100R shown, UMO — 100L (not shown) is the opposite side (UMO-12) SPACER BAR (N12FLN) 1/2” NUT 5/16” X 1 1/2” FLANGE BOLTS (B5F516NC112) UMO BEAM (UMO-MSB01R) 1/2” X 3” FLANGE BOLT (B8F12NC3) 5/16” FLANGE NUT (N516FLN) (N516FLN) 5/16”...
-
Page 16: Maintenance Tips
MAINTENANCE TIPS UMO — 100 Hub Preventative Maintenance The UMO hub is designed to be “flushed out” with lubrication, without damaging the triple lip seal. To flush the hub, lubricate until fresh grease is visible around the seal. In worked ground, lubricate every 20 hours of run time •... - Page 18 Note: Item 2 and 3 may substitute with 1/2” X 1 1/2” Bolt and 1/2” nut.
- Page 19 The most trusted name in no-till Established 1991 Martin Industries LLC 206 Elk Fork Road Elkton, KY 42220 Telephone: 270-265-5817 E-Mail: martin@martintill.com...
