Fortinet FortiAnalyzer-400 Quick Start Manual

FortiAnalyzer Unit LED Indicators
Light Icon Description
The FortiAnalyzer power indicator. The FortiAnalyzer unit is powered on
when the light is on.
Warning light. This light is on when a system or hardware malfunction
occurs.
Network activity. The light flashes as network activity is occurring on the
FortiAnalyzer unit.
Hard disk activity. The light flashes as log packets are written to
the FortiAnalyzer hard disk, and when the FortiAnalyzer unit ac-
cesses the hard disk to generate reports.

Checking the Package Contents

LED indicators:
Power, Error, Network,
and Disk Access
Connecting
Connect the FortiAnalyzer unit to a power outlet and to the network hub or switch.
• Place the FortiAnalyzer unit on a stable surface. It requires 1.5 inches (3.75 cm) clearance
on each side to allow for cooling.
• Make sure the power is not plugged into the wall before connecting the power cable.
• The Status light flashes while the unit is starting up and remains lit when the system is up
and running.

Planning the Configuration

You can add the FortiAnalyzer unit to your local FortiGate network to receive log messages
from your local FortiGate units, or connect the FortiAnalyzer unit to the FortiGate units re-
motely using FortiManager. To connect the FortiAnalyzer unit to the FortiGate units remotely,
you must configure the DNS server and the default gateway.
To manage the FortiAnalyzer unit, you can use a computer within the local network or over
the Internet.

Factory Defaults

User name:
Administrator Account
Password:
IP:
Port 1 Netmask:
Management Access:
IP:
Port 2 Netmask:
Management Access:
IP:
Port 3 Netmask:
Management Access:
Setting
LCD Switches
Panel A and B
Front Back
Connector Type
Ports 1, 2, 3 RJ-45
admin
(none)
192.168.1.99
255.255.255.0
ping, https, http, ssh
192.168.2.99
255.255.255.0
ping, https, http, ssh
192.168.3.99
255.255.255.0
ping, https, http, ssh
© Copyright 2007 Fortinet Incorporated. All rights reserved.
Products mentioned in this document are trademarks or registered trade-
marks of their respective holders.
Regulatory Compliance
FCC Class A Part 15 CSA/CUS
9 January 2007
Ethernet Cables:
Reset
Orange - Crossover
Switch
Grey - Straight-through
Power
Switch
LAN1, LAN2, LAN3
(Network
Connections)
Power
Connection
ATX
Redundant
Power
Supplies
Speed Protocol Description
10/100Base-T Ethernet Connection to the network
FortiAnalyzer-400
05-30003-0236-20070109
Power Cable

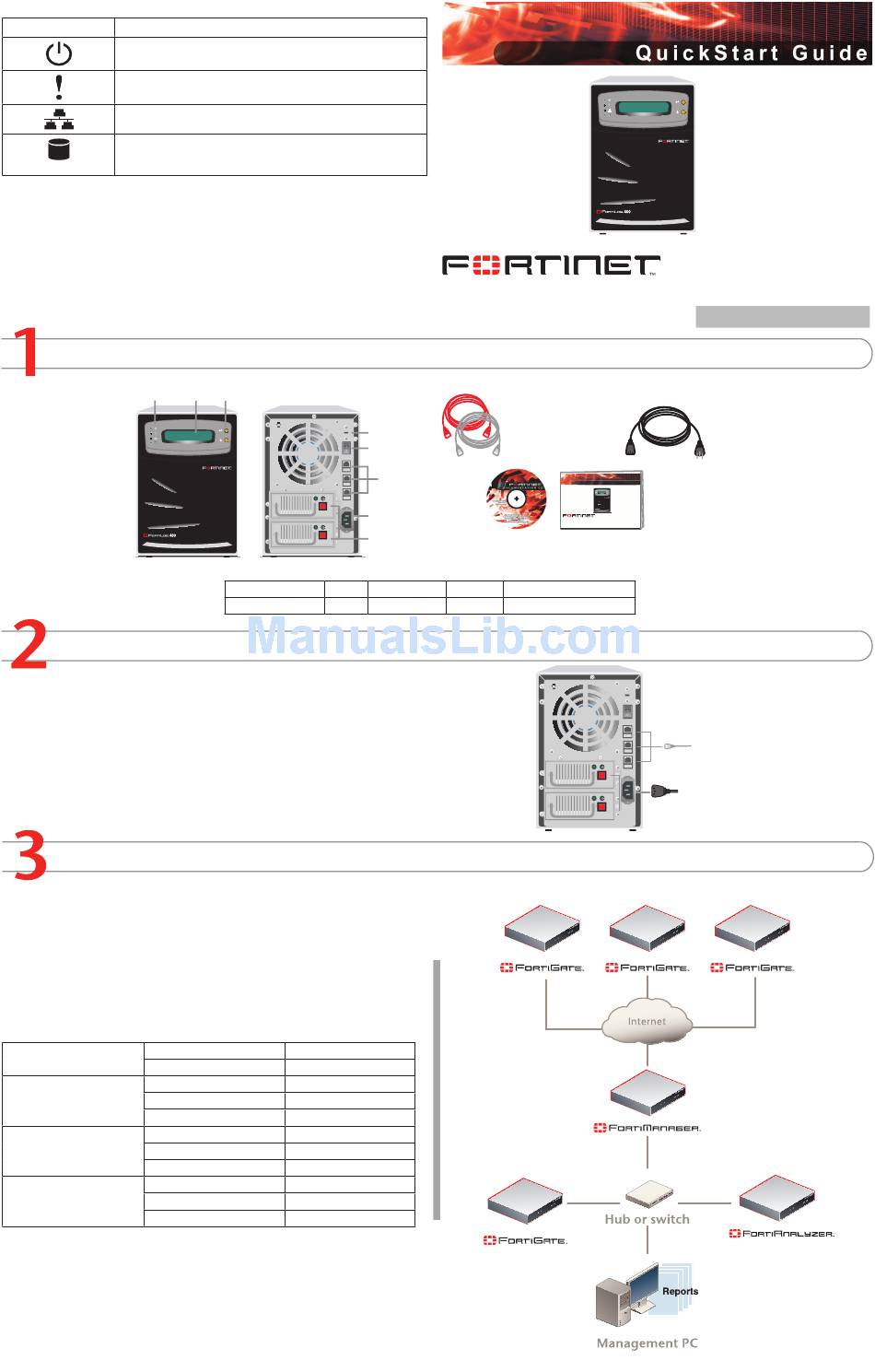

Q u i c k S t a r t G u i d e
FortiAnalyzer-400
Copyright 2006 Fortinet Incorporated. All rights reserved.
Trademarks
Products mentioned in this document are trademarks.
Documentation
Straight-through Ethernet cable connects
to hub or switch on the network
Power cable connects to power outlet
