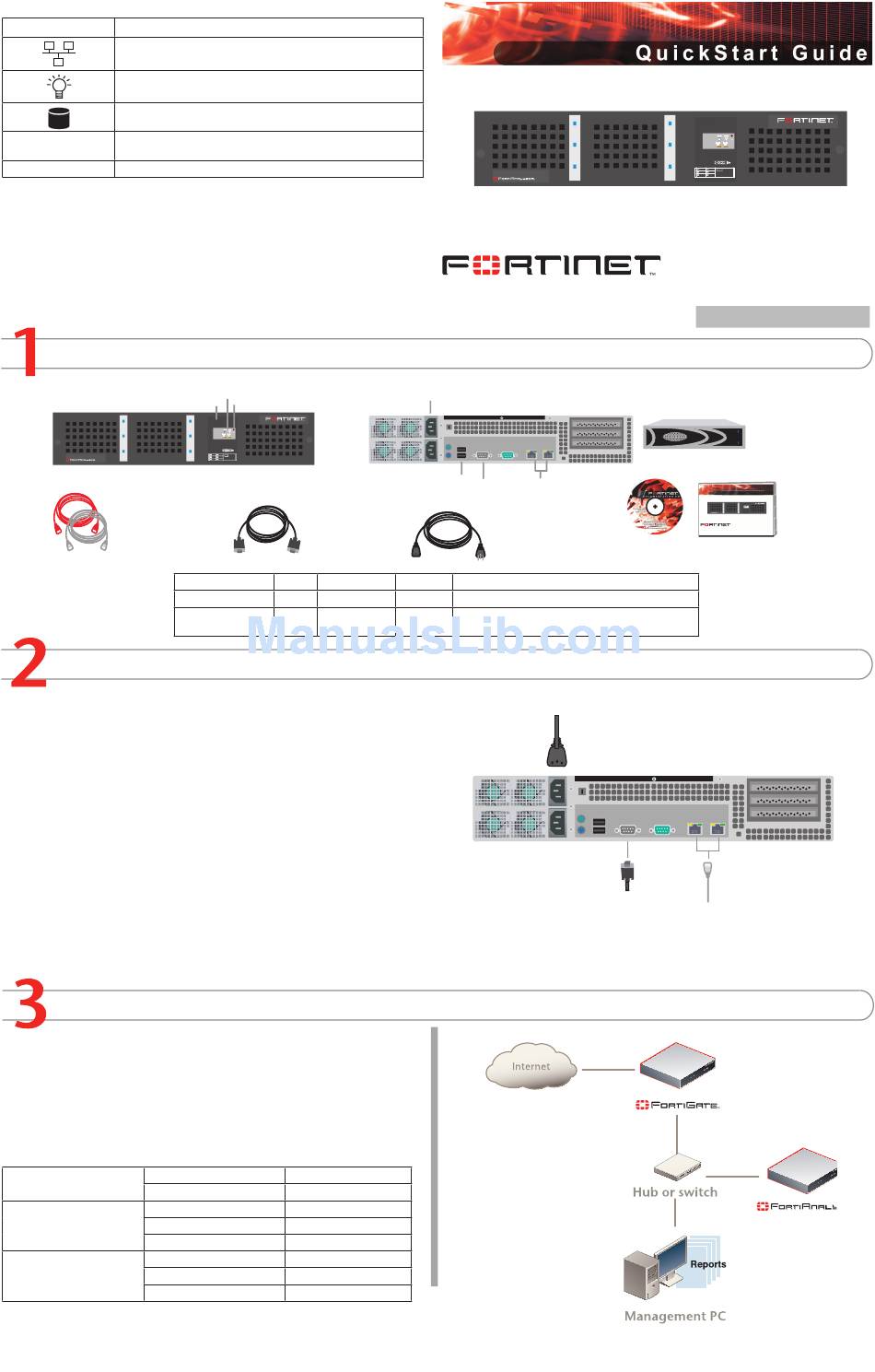

Fortinet FortiAnalyzer-2000A Quick Start Manual

FortiAnalyzer Unit LED Indicators
Light Icon Description
The light flashes orange when packets are sent and received on
the Ethernet port.
Power indicator is blue when the FortiAnalyzer system is on.
The light flashes blue when reading the boot device.
Hard Disk Upper LED Blue when the hard disk is properly inserted into the drive bay
and the FortiAnalyzer is plugged in to a power source.
Hard Disk Lower LED Flashes blue when reading and writing to the hard disk.

Checking the Package Contents

Front
Power Supply Alarm ResetButton
2000A
Ethernet Cables:
Orange - Crossover
Grey - Straight-through
Connecting
Connect the FortiAnalyzer unit to a power outlet and to the network hub or switch.
• Insert the hard disks included in the FortiAnalyzer package into the bays of the
FortiAnalyzer unit, starting in bay 1. Use the diagram on the front panel as a
guide.
• Place the FortiAnalyzer unit on a stable surface. It requires 1.5 inches (3.75 cm)
clearance on each side to allow for cooling.
• Insert a network cable to port 1. Insert the other end to the router or switch connected
to the network.
• Connect one power chord to a power supply. Connect the other power cord to an
alternate power source if available.
• Connect the Power Cord to a surge protected power bar or power supply.
• Press the Power button to turn on the FortiAnalyzer unit.
• The power LED appears blue and the hard disk icon LED flashes blue while the
system boots.
•
• For more information, see the FortiAnalyzer Install Guide.

Planning the Configuration

You can add the FortiAnalyzer unit to your local FortiGate network to receive log messages
from your local FortiGate units, or connect the FortiAnalyzer unit to the FortiGate units re-
motely using FortiManager. To connect the FortiAnalyzer unit to the FortiGate units remotely,
you must configure the DNS server and the default gateway.
To manage the FortiAnalyzer unit, you can use a computer within the local network or over
the Internet.

Factory Defaults

User name:
Administrator Account
Password:
IP:
Port 1 Netmask:
Management Access:
IP:
Port 2 Netmask:
Management Access:
LED indicators:
Power, Error, Network Access
Power Button
PS RST
2 1
DISK DRIVE LEGEND POWER
ACTIVITY
HDD 1 (P0) HDD 4 (P3)
HDD 2 (P1) HDD 5 (P4)
HDD 3 (P2) HDD 6 (P5)
Null-Modem Cable
(RS-232)
Connector Type Speed
Ports 1 and 2 RJ-45 10/100Base-T
CONSOLE DB-9 9600 bps
admin
(none)
192.168.1.99
255.255.255.0
ping, https, http, ssh
192.168.2.99
255.255.255.0
ping, https, http, ssh
2000A
© Copyright 2008 Fortinet Incorporated. All rights reserved.
Products mentioned in this document are trademarks or registered trade-
marks of their respective holders.
Regulatory Compliance
FCC Class A Part 15 CSA/CUS
18 March 2008
Power
Connections
Back
USB ports
for future use
Ethernet
DB9 Serial
Connections
Connection
Power Cable
Protocol Description
Ethernet Connection to the network
RS-232 Connection to the management computer. Provides
access to the command line interface (CLI).
Null modem cable connects
to serial port on management
computer.
PS RST
2 1
POWER
DISK DRIVE LEGEND
ACTIVITY
HDD 1 (P0) HDD 4 (P3)
HDD 2 (P1) HDD 5 (P4)
HDD 3 (P2) HDD 6 (P5)
FortiAnalyzer-2000A
05-30006-0352-20080318
Q u i c k S t a r t G u i d e
2000A
FortiAnalyzer-2000A
Copyright 2008 Fortinet Incorporated. All rights reserved.
Trademarks
Products mentioned in this document are trademarks.
Documentation

Power connections

Straight-through Ethernet
cable connects to hub or
switch on the network.
6 hot-swappable
hard disks
PS RST
2 1
