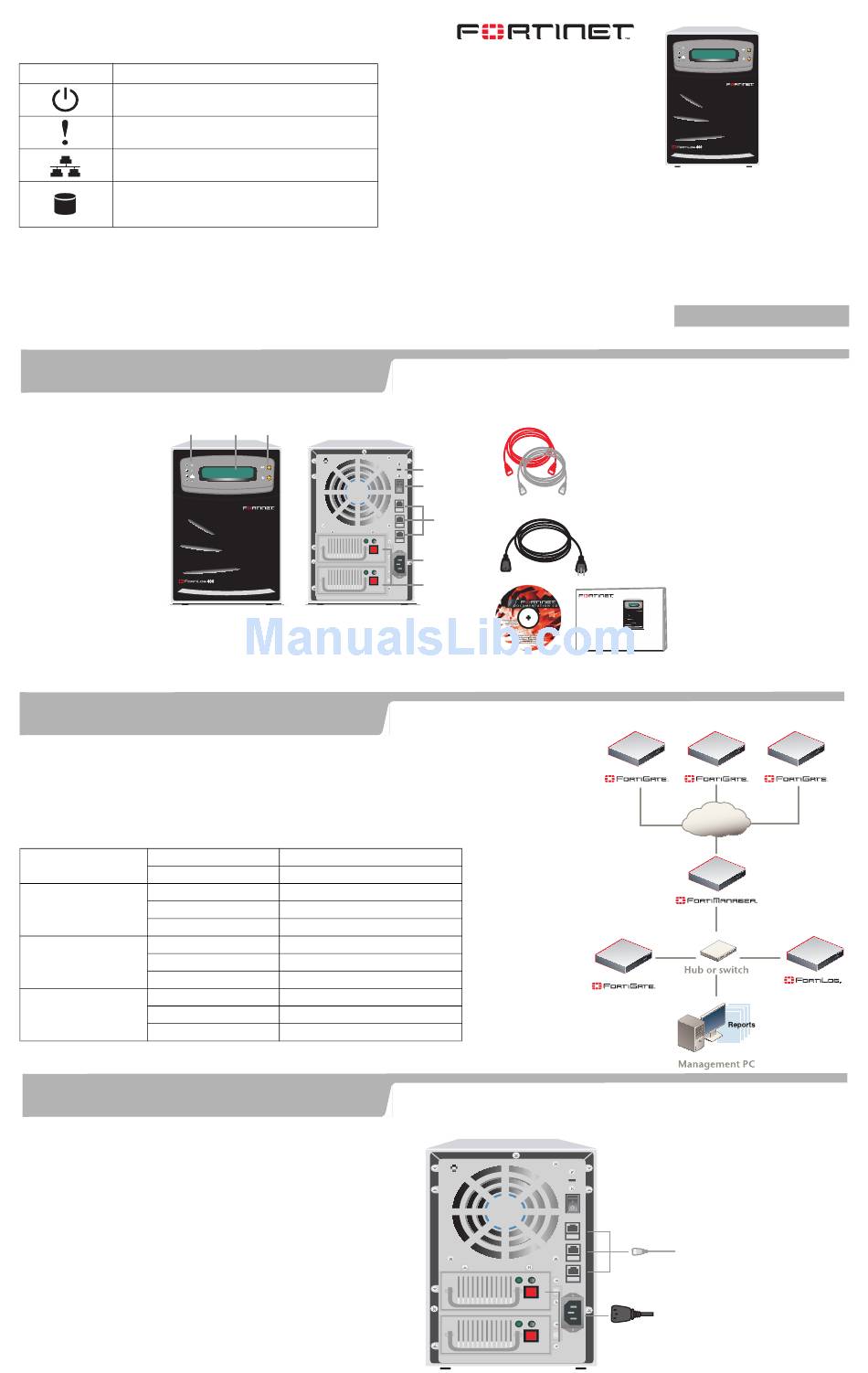

Fortinet FortiLog FortiLog-400 Quick Start Manual

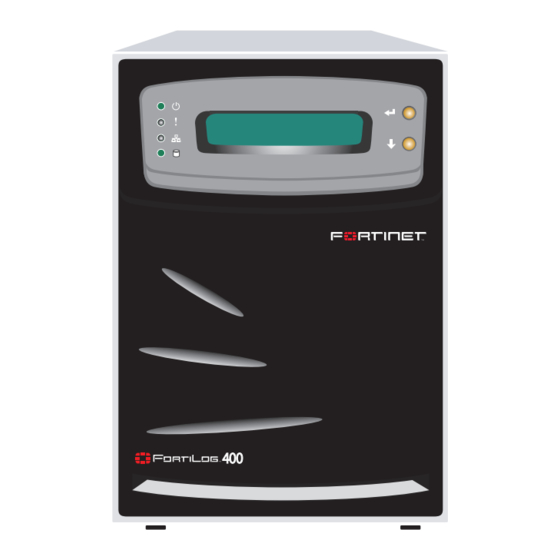

FortiLog unit LED Indicators
Light Icon Description
The FortiLog power indicator. The FortiLog unit is
powered on when the light is on.
Warning light. The light is on when a system or
hardware malfunction occurs.
Network activity. The light flashes as network activity is
occurring on the FortiLog unit.
Hard disk activity. The light flashes as log packets are
written to the FortiLog hard disk, and when the FortiLog
unit access the hard disk to generate reports.
1

Checking the package contents

LED indicators:
Power, Error, Network,
and Disk Access
2
Planning the installation
You can add the FortiLog unit to your local FortiGate network to receive log messages from your local FortiGate units.
You can also connect the FortiLog unit to the FortiGate units remotely through the Internet or using FortiManager.
To connect the FortiLog unit to the FortiGate units remotely, you must configure the DNS server and the default gateway.
To manage the FortiLog unit, you can use a computer within the local network or over the Internet.

Factory Defaults

User name:
Administrator account
Password:
IP:
Port 1 Netmask:
Management Access:
IP:
Port 2 Netmask:
Management Access:
IP:
Port 3 Netmask:
Management Access:
3
Connecting the FortiLog unit
• Place the FortiLog unit on a stable surface. It requires 1.5 inches (3.75 cm)
clearance on each side to allow for cooling.
• Make sure the power is not plugged into the wall before connecting the
power cable.
• The Status light flashes while the unit is starting up and remains lit when the
system is up and running.
Setting
LCD Switches
Panel A and B
Front
Back
admin
(none)
192.168.1.99
255.255.255.0
ping, https, ssh, http
192.168.2.99
255.255.255.0
ping, https, ssh, http
192.168.3.99
255.255.255.0
ping, https, ssh, http
FortiLog-400
© Copyright 2005 Fortinet Incorporated. All rights reserved.
Trademarks
Products mentioned in this document are trademarks or registered trademarks of their respective holders.
Regulatory Compliance
FCC Class A Part 15, CE, and UL
09 September 2005
For technical support please visit http://www.fortinet.com.
Check that the package contents are complete.
Reset
Switch
Power
Switch
LAN1, LAN2, LAN3
(Network
Connections)
Power
Connection
ATX
Redundant
Power
Supplies
Things you need to know before installing the FortiLog unit.
Connect the FortiLog unit to a power outlet and to the network hub or switch.
QuickStart Guide
05-30000-0236-20050909
Ethernet Cables:
Orange - Crossover
Grey - Straight-through
Power Cable
FortiLog-400
QuickStart Guide
Copyright 2005 Fortinet Incorporated. All rights reserved.
Trademarks
Products mentioned in this document are trademarks.
Documentation
Internet
Straight-through Ethernet cable connects
to hub or switch on the network
Power cable connects to power outlet
