FROM MACHINE: 3192001-3192094, 3193095 ->
03182320
E-EN-041212-ER
TRANSLATION OF THE INSTRUCTION MANUAL
OPERATION, MAINTENANCE
AND SPARE PARTS MANUAL

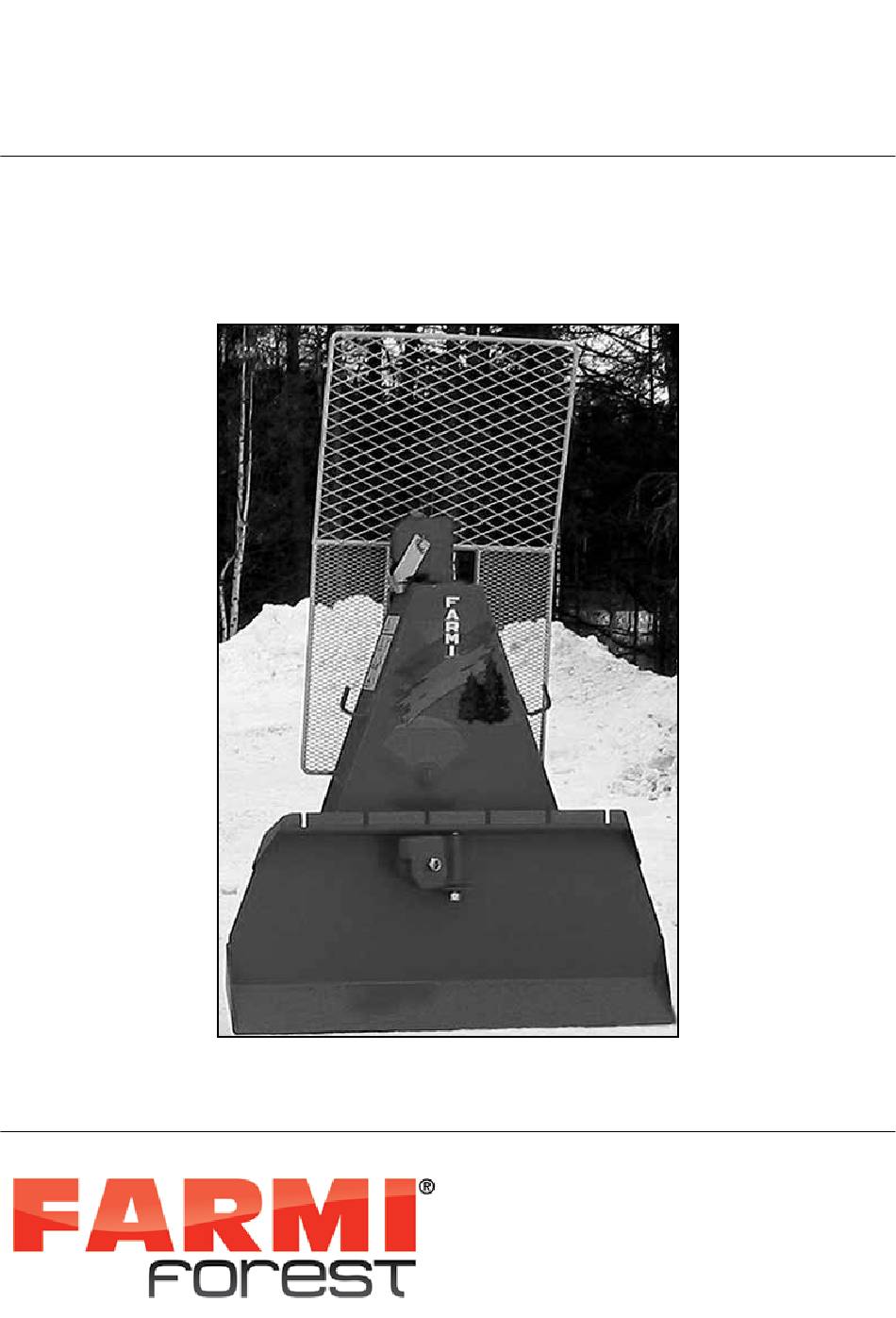

SKIDDING WINCH
FARMI 351P
READ THIS OPERATION AND MAINTENANCE MANUAL CAREFULLY
BEFORE USING THE MACHINE
Farmi Forest Corporation
Ahmolantie 6
FIN-74510 Iisalmi, Finland
Tel. +358 (0)17 83 241
Fax. +358 (0)17 8324 372
www.farmiforest.fi
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Farmi Forest Corporation 351P
Summary of Contents for Farmi Forest Corporation 351P
- Page 1 03182320 E-EN-041212-ER TRANSLATION OF THE INSTRUCTION MANUAL OPERATION, MAINTENANCE AND SPARE PARTS MANUAL SKIDDING WINCH FARMI 351P READ THIS OPERATION AND MAINTENANCE MANUAL CAREFULLY BEFORE USING THE MACHINE Farmi Forest Corporation Ahmolantie 6 FIN-74510 Iisalmi, Finland Tel. +358 (0)17 83 241 Fax.
-
Page 3: Product Warranty
FARMI 351P INTRODUCTION This manual includes the information and maintenance instructions required for operating the machine in the optimal manner. Although you have experience in using this kind of machinery, read the operation and maintenance instruc- tions carefully since they include information enabling efficient and safe operation. Regular maintenance is the best way to guarantee the efficient and economical performance of the machine. - Page 4 FARMI 351P EC DECLARATION OF CONFORMITY Manufacturer: Farmi Forest Corporation Ahmolantie 6, FIN-74510 IISALMI, Finland Person authorized to compile the technical documentation: Name: Heikki Sirviö Address: Ahmolantie 6, FIN-74510 IISALMI, Finland Commercial name: Farmi Machine denomination: Skidding winch Machine type:...
-
Page 5: Table Of Contents
FARMI 351P TABLE OF CONTENTS PRODUCT WARRANTY TABLE OF CONTENTS GENERAL SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS FOR WINCHES STICKERS AND PLATES MAIN PARTS AND ACCESSORIES TECHNICAL SPECIFICATION MOUNTING PRE-OPERATION CHECKS CONTROLS OPERATION PRE-OPERATION CHECKS WINCHING SKIDDING DROPPING THE LOAD TRANSPORTATION MAINTENANCE... -
Page 6: General Safety Instructions
FARMI 351P GENERAL SAFETY INSTRUCTIONS Written authorization must be requested from the manufacturer for any alterations to the machine. These safety instructions are meant for the owners of FARMI equipment, as well as those who operate, service or repair it. - Page 7 FARMI 351P TRANSPORT • Never insert any body part into the machine with the engine running. • Before driving with the machine, ensure the safe • If any faults arise that may jeopardize occupatio- mounting of the machine. Make sure that the nal safety, turn off the machine.
- Page 8 FARMI 351P • When servicing the machine, place it on a level SAFETY INSTRUCTIONS FOR HYDRAULIC CIRCUITS surface and ensure that it cannot be moved. • Observe the service intervals and annual safety 1. Work on hydraulic equipment may only be carried inspections.
-
Page 9: Safety Instructions For Winches
FARMI 351P 15. Avoid discharging hydraulic into SAFETY INSTRUCTIONS FOR WINCHES environment, as it can pollute waterways and the groundwater. If biodegradable oil is to be used, • Check that the wire cable is in good condition please contact the manufacturer beforehand and... -
Page 10: Stickers And Plates
FARMI 351P STICKERS AND PLATES The following plates and labels must be correctly attached to the machine. Missing safety plates / labels must be replaced immediately. 2. Note! See manual for operation and maintenance. (41014750) 1. Machine plate JL351P (41012010) - Page 11 FARMI 351P 3. Nr 41014740 Falling danger! Do not work in an oblique position. Crushing danger! Do not use the winch for the lifting. Watch out for a breaking cable! Always use the protective screen. 4. Nr 41014730 Note! Before doing maintenance work turn off the motor, remove the ignition key and disengage the P.T.O.
- Page 12 Do not stand in front of the winch when working. Stand on the side at a distance of at least 6 ft from the winch. Crushing danger! Do not winch downhill. 6. Maximum rpm (42381474) 7. Sticker FARMI Forest (40147110) 8. Sticker 351P (40147250)
-
Page 13: Main Parts And Accessories
FARMI 351P MAIN PARTS AND ACCESSORIES Snatch block Finger protection Control rope Latch rope Clutch engagement lever Cable drum Drum Upper diverting pulley locking latch Cable Drive shaft (optional) Lower diverting pulley Dozer blade Accessories are separately specified. -
Page 14: Technical Specification
FARMI 351P TECHNICAL SPECIFICATION FARMI 351P Tractive power Cable drum empty ( Maximum) 35 kN Cable drum full (Minimum) 13 kN Cable capacity recommendation 60 m of ø 10 mm cable Ultimate strength of the cable 1,96 kN/mm Winching speed 540 rpm... -
Page 15: Mounting
FARMI 351P MOUNTING SHORTEN THE DRIVE SHAFT Both PTO halves must be shorte- MOUNTING TO THE 3-POINT HITCH ned by equal amounts. The winch can be mounted to the 3-point linkage of any tractor. Power transmission is obtained through universal shaft from tractor. -
Page 16: Pre-Operation Checks
FARMI 351P PRE-OPERATION CHECKS FASTENING THE CABLE TO THE DRUM 1. Tape the cable end to prevent loosening of the core wires. CABLE 2. Pass the cable through the hole in cable guard, over the upper snatch block and then inside the Check that: winch. -
Page 17: Controls
FARMI 351P CONTROLS OPERATION Get acquainted with the control- SAFETY PRECAUTIONS lers of the winch before the use, tests the stopping functions of Read the operation instructions the winch and the tractor and all before operating this machine! other functions. Each function It is the owner’s responsibility to... -
Page 18: Pre-Operation Checks
FARMI 351P • The falling danger of the tractor can be reduced by PRE-OPERATION CHECKS winching through the lower diverting pulley. MOUNTING AND USE OF THE LOWER DIVERTING PULLEY • Usually the logs are winched in through the upper pulley of the winch. This lifts the logs and they dig less into the ground. -
Page 19: Winching
FARMI 351P speed depends on the number of revolutions of WINCHING the tractor. Do not wind too fast. 4. Stop winching when the logs are at about Before using the winch, you have 1,5-3 m (5-10 ft) from the tractor. Install the cable to pull the cable completely out on the lower diverting pulley. -
Page 20: Dropping The Load
FARMI 351P IF YOU GET STUCK WITH THE TRACTOR 1. Drop the load. Drive the tractor to firm ground. Winch in the load. 2. If you cannot move the tractor, release the load and winch the tractor out. When winching the tractor out, always run the cable under the lower pulley. -
Page 21: Maintenance
FARMI 351P MAINTENANCE CLUTCH ADJUSTMENT 1. Loosen the nuts A and B at both ends of the drum SAFETY axle. Wrench opening 1 7/16” (36 mm). 2. Adjust the clutch by turning the axle C with 9/16” Disengage the P.T.O and turn the or 14 mm wrench. -
Page 22: Adjusting The Roller Chain Tightness
FARMI 351P ADJUSTING THE ROLLER CHAIN TIGHTNESS REMOVING THE WINCH MECHANISM Roller chains tightness adjustment is carried out by The whole winch mechanism can be removed in one moving the chain tightener. See fig. 17. piece from the frame. To remove the winch mechanism from the winch (e.g. -
Page 23: Assembly Of The Mechanism
FARMI 351P ASSEMBLY OF THE MECHANISM Make sure that the both pressure bearings are instal- led in a correct position, that is, the bearing with bigger internal diameter should be facing the cable drum (figure 21). Make sure that the position of the two clutch engagement halves is correct (fig. -
Page 24: Trouble Shooting
FARMI 351P TROUBLE SHOOTING CONDITION POSSIBLE CAUSE REMEDY Hard to pull the cable out Drum brake is too tight. Loosen the drum brake. See instructionsfrom item ”Adjusting the drum brake”. Cable gets tangled on the drum. Cable too loose on the drum. The... - Page 25 FARMI 351P...
-
Page 26: Frame
FARMI 351P FRAME... - Page 27 FARMI 351P FRAME Part Order no Description Remarks 33185500 Frame 43020775 Snatch block complete 43020700 Support leg 42721050 Snatch block 54824099 Clutch rope 5,00 m 52060050 Screw M6X40 DIN933 88ZN 52117066 Lock nut M6 DIN985 8ZN 92820182 52842150 Ring cotter...
-
Page 28: Machinery
FARMI 351P MACHINERY 34.2 34.3 34.1 34.4 34.5 34.3 34.6 34.12 34.11 34.7 34.8 34.13 34.10 34.9 2 11 10 9 30 27 31 29... - Page 29 FARMI 351P MACHINERY Part Order no Description Remarks 23010523 Frame 42722918 Front plate 32722753 Axle 43010446 Sprocket complete 33010455 Sprocket 54562053 Slide bearing 42722744 Friction piece 52830015 Rivet 1/4X3/4 MS DIN 7338-B 33000084 Drum complete 54562053 Slide bearing 33000621 Drum cover...
- Page 30 FARMI 351P MACHINERY 34.2 34.3 34.1 34.4 34.5 34.3 34.6 34.12 34.11 34.7 34.8 34.13 34.10 34.9 2 11 10 9 30 27 31 29...
- Page 31 FARMI 351P MACHINERY Part Order no Description Remarks 52110046 M10 DIN934 8ZN 52200102 Washer M24 DIN126 58ZN 52200045 Washer M10 DIN126 58ZN 52200235 Washer M8 DIN9021 58ZN 52390861 Felt seal 43190420 Drum brake complete 34.1 43190438 Frame 34.2 43001221 Roll 34.3...
-
Page 32: Protective Screen
FARMI 351P 33185100 PROTECTIVE SCREEN Part Order no Description Remarks 33185110 Protective screen 52110046 M10 DIN934 8ZN 52060340 Screw M10X50 DIN933 88ZN 52200490 Washer M12 DIN 7349 ZN 43130137 Snatch block... -
Page 33: Lower Protective Screen
FARMI 351P LOWER PROTECTIVE SCREEN Part Order no Description Remarks 43020502 Lower protective screen 52060225 Screw M10X25 DIN933 88ZN 52200045 Washer M10 DIN126 58ZN 52110046 M10 DIN934 8ZN 43130368 Hook for universal shaft complete COVER OF THE UNIVERSAL SHAFT Part... -
Page 34: Accessories
FARMI 351P ACCESSORIES HOF-4 W2200 TP14IH... - Page 35 FARMI 351P ACCESSORIES Part Order no Description JK 351 03190469 Machinery 3,5 t JK 501 03010501 Machinery 5 t JK 501T 03010519 Machinery 5 t, with brake JK 601 03100006 Machinery 6 t JK601T 03110005 Machinery 6 t, with brake...
- Page 36 FARMI 351P...
- Page 37 14 days of receipt of the product. By returning the warranty certificate, you confirm that you have read and understood the instruction manual that came with the product. Farmi Forest Corporation Ahmolantie 6 FIN-74510 IISALMI FINLAND...
-
Page 38: Product Registration Form
PRODUCT REGISTRATION FORM Date of delivery:_____/_____ 20_____ Dealer: Dealer’s address: Dealer’s tel: Product and type: Serial number: Return to the manufacturer Date of delivery:_____/_____ 20_____ Dealer: Dealer’s address: Dealer’s tel: Customer: Customer’s address: Customer’s tel: E-mail: Product and type: Serial number:... - Page 40 Farmi Forest Corporation Ahmolantie 6 FIN-74510 Iisalmi, Finland Puh. +358 (0)17 83 241 Fax. +358 (0)17 8324 372 www.farmiforest.fi...
